Planetary Environmental Test Facility

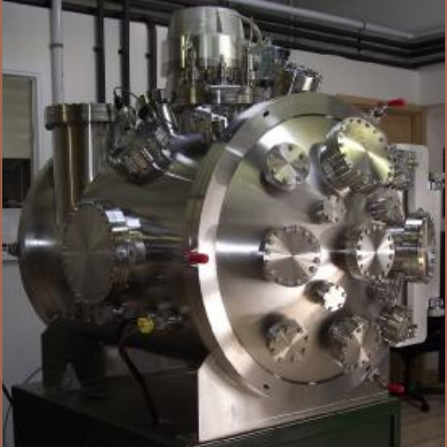

Simulating Lunar and Martian Dust Environments Test Chamber
Guangdong GRANDE Automatic Test Equipment Limited in collaboration with the China Space Agency has developed a facility for simulation of the effects of the Lunar & Martian dust environments.
The simulator is able to provide the following environmental factors:
Ultra-high vacuum or atmospheric conditions;
Lunar/Martian dust conditions;
VUV/NUV radiation;
Thermal conditions/thermal cycling;
And darkness.
The basic Dust Par cles Source includes a Lunar/Martian soil simulant container, a Dust Source Housing, and a funnel-like closed structure in which dust cloud is generated. Dust particles are agitated by a paddle actuator, allowing generating different configurations of the dust cloud. This system is also used to mix the particles in the stage of dust simulant preparation.
Parameter | Value | |
Vacuum System | Volume, m3 | 0.7~3000 |
Pumping speed (N2), l/s | 2,050 | |
Basic vacuum, Torr | < 2×10-7 | |
Dust Source | Lunar soil simulator | GSS-1 |
Dust thermal conditioning | RT/+200 | |
Dust activation | VUV | |
Sample Holder/Sample Transfer System | Holder size, cm2 | 314 |
Temperature range,℃ | -180/+200 | |
Mechanical testing | Rotary or Horizontally movable | |
VUV Source | Type of VUV Source | G2 lamp |
Wavelength, nm | 115-200 |
Planetary Environmental Simulators (PES) are advanced testing systems that replicate the extreme surface and atmospheric conditions of celestial bodies (e.g., Mars, Moon, Europa, Venus) to validate spacecraft, instruments, and habitats for interplanetary missions. Their applications bridge scientific research, engineering, and exploration:
1. Mars Surface Simulation
Atmosphere & Dust:
Simulates 6–9 mbar CO2-dominated atmosphere, perchlorate-rich dust storms, and -125°C to +20°C thermal cycles. Tests rover mobility (e.g., Perseverance wheel abrasion) and solar panel dust accumulation.
UV Radiation:
Intense 200–400 nm UV flux (1.5× Earth’s) to study degradation of organic-detection instruments (e.g., SAM on Curiosity).
Regolith Interactions:
Validates drilling systems (e.g., ExoMars) in Mars soil simulants (JSC Mars-1, Mojave Mars Simulant) under low pressure.
2.Lunar Environment Replication
Parameter | Simulated Conditions | Test Application |
Vacuum | 10-10 torr | Cold welding risk for deployable structures |
Thermal Cycling | -180°C (night) to +130°C (day) | Artemis lander battery survival |
Regolith Abrasion | Sharp, glass-rich dust (<100 μm) | Spacesuit seal integrity |
Solar Wind | H⁺/He2⁺ ion bombardment (1 keV) | Solar array degradation over 10+ years |
3. Icy Moon & Extreme Environments
Europa Subsurface Ocean Simulation:
Combines -160°C surface temps, high radiation (500 krad/hr), and salt-ice mechanics to test penetrators (e.g., Europa Lander).
Venus Hellscape Testing:
460°C + 92-bar CO2 atmosphere with sulfuric acid clouds for probe endurance validation (e.g., NASA’s LLISSE).
4. In-Situ Resource Utilization (ISRU)
Oxygen Extraction:
Tests MOXIE-like systems converting simulated Mars CO2 to O2 under dust contamination.
Water Mining:
Validates regolith heating/compaction tools for extracting ice from lunar polar simulants.
5. Instrument & Payload Qualification
Spectrometer Calibration:
IR/Raman sensors tuned in Mars-analog environments to detect biosignatures.
Seismometer Testing:Verifies sensitivity in simulated moonquakes (e.g., InSight on Mars).
6. Habitat & EVA System Validation
Habitat Pressure Integrity:
Tests inflatable modules (e.g., SpaceX Mars Base Alpha) under 0.38g gravity + dust storms.
Spacesuit Durability:
Exposes suits to lunar regolith abrasion and -150°C shadows (NASA xEMU).
Technical Capabilities
Module | Performance Range | Example System |
Atmosphere Control | 10-10 torr to 100 bar | Venus chamber (NASA GRC) |
Thermal Systems | -196°C to +500°C | Cryogenic LN₂ + resistive heaters |
Dust Simulants | Lunar (BP-1), Mars (MMS), Europa (Icelandic ice) | ESA’s LUNA regolith simulant |
Radiation Sources | Proton/electron guns (1–200 MeV) | JPL’s Europa Irradiation Facility |
Partial Gravity | 0.16g (Moon) to 0.38g (Mars) | Cable-suspended robotic platforms |
Failure-Prevention Case Studies
Perseverance Rover Drill Clog (2021):
Post-failure PES tests revealed unanticipated pebble accumulation → redesigned percussion mechanism.
Philae Lander Bounce (Comet 67P):
Simulated low-gravity ice adhesion could have predicted harpoon failure.
Emerging Applications
Space Agriculture:
Tests crop growth in simulated Mars regolith/perchlorate mixes under LED sunlight.
Exoplanet Analogs:
Simulates TRAPPIST-1e conditions (tidally locked, N2-CO2 atmosphere) for future probes.
Nuclear-Powered Rovers:
Validates RTG shielding in Martian dust storms (e.g., NASA’s Kilopower).
Standards & Compliance
ISO 19632:2022 (planetary surface simulants)
NASA-STD-6016 (Mars entry/descent/landing systems)
ECSS-E-ST-10-12 (Europa mission environmental testing)
Conclusion:
Planetary Environmental Simulators are mission-critical risk-mitigation tools – compressing the unknown extremes of alien worlds into controlled experiments. They enable "test like you fly" for everything from Mars helicopters to Europa submersibles, preventing costly failures in deep space.
Leading Facilities:
NASA Glenn,s PEC (Planetary Environment Chamber)
DLR,s :envihab (Moon/Mars modules)
CALTECH,s Mars Yard
HAI,s Europa Simulation Chamber (Harbin Institute of Technology)
Metrostaff GmbH (modular planetary simulators)
