IP65 Waterproof Test Chamber
  • IP65 Waterproof Test Chamber
  • IP65 Waterproof Test Chamber
  • IP65 Waterproof Test Chamber
IP65 Waterproof Test Chamber	IP65 Waterproof Test Chamber	IP65 Waterproof Test Chamber

IP65 Waterproof Test Chamber

The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.

Product Details

Appliance:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.


1. Meet GB4208-2008/IEC60529:2001 and GB 7000.1-2015/IEC 60598-1:2014 Part 9 (Dustproof,Antisolids and waterproof) which is waterproof test standard of IP65.
2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4.  PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.


Features

1、IP65 Waterproof test chamber is applied for workshops,labs.,etc,to proceed with waterproof test of 【IPX5】/【IPX6】.

2、Perfect designs,constitute test chamber and water inlet pipe,cycling use of water,energy conservation and environment protection,save the cost of construction test room.

3、Built-in storage tank,water level float valve automatically controls water and Low-water alarm device,to prevent water pump to be broken since lack of water.

4、Controller:Korea SAMWON TEMI880

5、Spray gun(Airbush) can swing up and down,and the rotary table rotate,it can meet full spray on samples.

6、IPX5/IPX6 spray flow is adjusted by flow meter,manual adjustment.

7、Inner installment have sample power socket(AC220V,10A;IP66 waterproof grade),sample power on/off time can controlled by program:power off(0-999min) —power on(0 -999min)— power off(0-999min ),apply to power on/off when sample is testing.

8、Inner chamber installed waterproof LED light,convenience customers to observe the status of testing.

9、Testing time can setting on touch pannel,time setting range:0-999min(adjustable),testing over,automatic stop.

10、Added“remote operation”function:user can process parameters setting、start、stop、clear data,etc. action on mobile phone or computer。(download corresponding software).


Material description

1、ip65 waterproof testing chamber-out box:high quality stainless steel plate,surface spray paint,attractive and durable。

2、ip65 waterproof testing chamber-inner box and turntable:manufacture by SUS304#,insure rustless for long time using.

3、Control system:use colours 7〞 touch screen+Panasonic PLC(software program independent developoment by Guanzhou Yuexin).

4、Electrical apparatus element:use like LG、OMRON, etc. import brand(The wiring process meets national standard )。

5、Water pump :“LINGXIAO”stainless steel multistage water pump.

Model Explain:G-IPX56BS-500L


Technical parameters:

Structure Parameter
Out chamber sizeL:3800*D:1050*H:1600mm(contain aqueduct)
Inner chamber sizeL:800*D:800*H:800mm
Water storage tank volumeAbout 100L,L:500×W:450×H:450mm
Sample turntable sizeDiameter 400mm
IPX5 water spray bore diameterDiameter 6.3mm
IPX6 water spray bore diameterDiameter 12.5mm
Functional Parameter
IPX5 spray flow12.5±0.625(L/min)
IPX6 spray flow100±5(L/min)
Flow control methodManual Adjustment(Rotor flow meter)
Water spray distance2.8 Meter(Nozzle distance away from turntable central)
Spray gun fixing methodMechanical Fixing (Program Setting、Adust Spray Gun Angle)
Turntable maximum load-bearing50KG
Electric Parameter
Power Voltage380V
Equipment Power3.0KW
Safety Protestion FunctionEarth Leakage Protection、Water Protection、Short-circuit Protection


Packing list:

1、IP65 Waterproof test chamber 1set (Standard configuration)

2、Standard parts:Water inlet pipes

3、IP65 Waterproof test chamber-Certificate of qualification

4、Detailed list

6、Delivery Order


Main configuration:

No.Main parts nameBrand/Origin/SpecificationsQuantity
Controlling system(Main parts)
1Main frameAluminum frame,transparent density board1group
3PLC processorMitsubishi, Japan1group
4Communication moduleMitsubishi, Japan1group
5Controlling panel (English interface)WEINVIEW, Taiwan1group
6Stepping motorGUOYOU, China1group
7Dc motor and reducerGUOYOU , China1group
8Transducer0.75KW/220V1group
Water line(Main parts)
1Glass float flowmeterRange 7L/min1pcs
2Precision pressure gauge0.4MPa1pcs
3Electric contact pressure sensor0-0.8MPa1group
4Stainless steel water pumpNanfang, Hangzhou, China1pcs
5Solenoid valveGUOYOU 220V2group
6Throttle valveGUOYOU, China2group
Other parts
1TurntableStainless steel1group


Package:

(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.

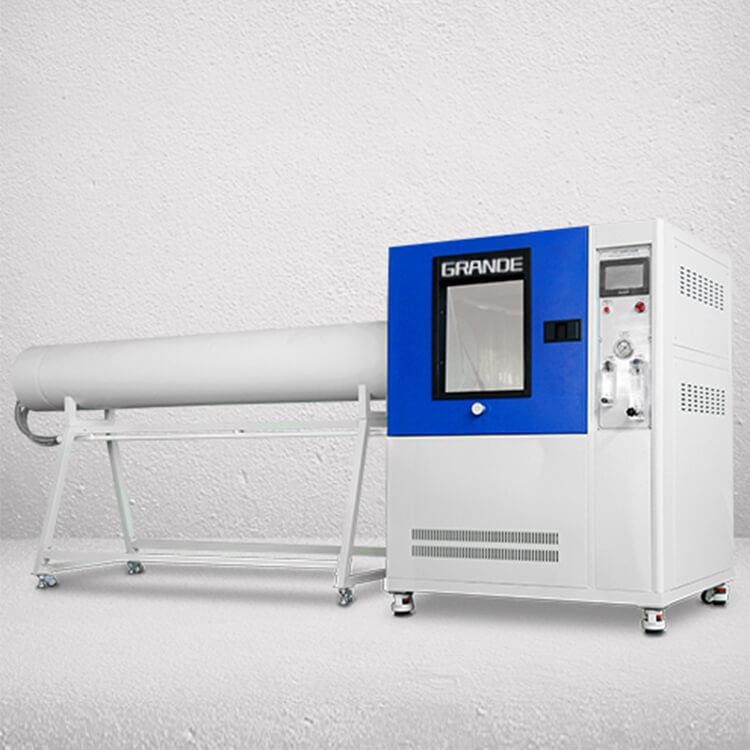

IP65 Test Spray Effect IP65 Test Spray Effect

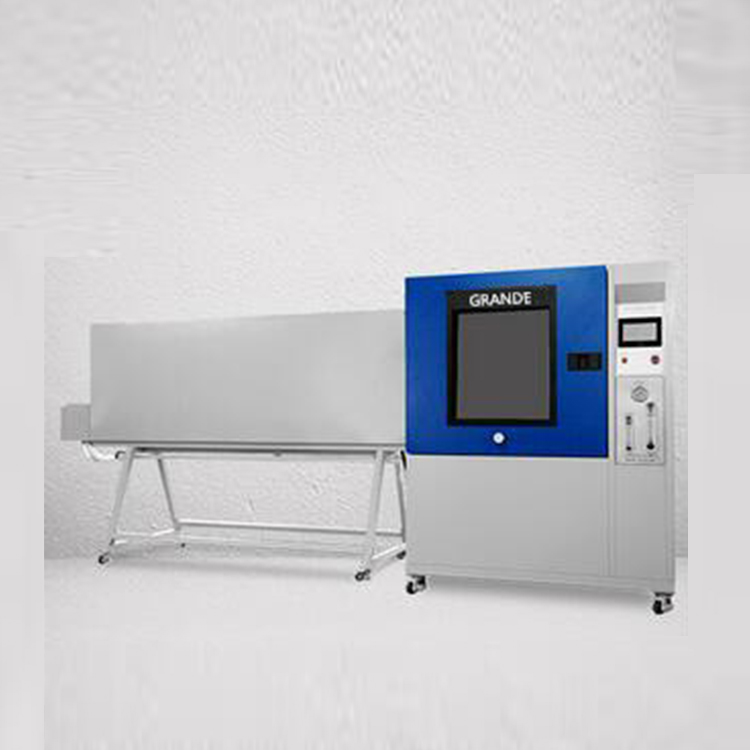

IP65 Waterproof Test Chamber Water Inlet Pipe IP65 Waterproof Test Chamber Water Inlet Pipe

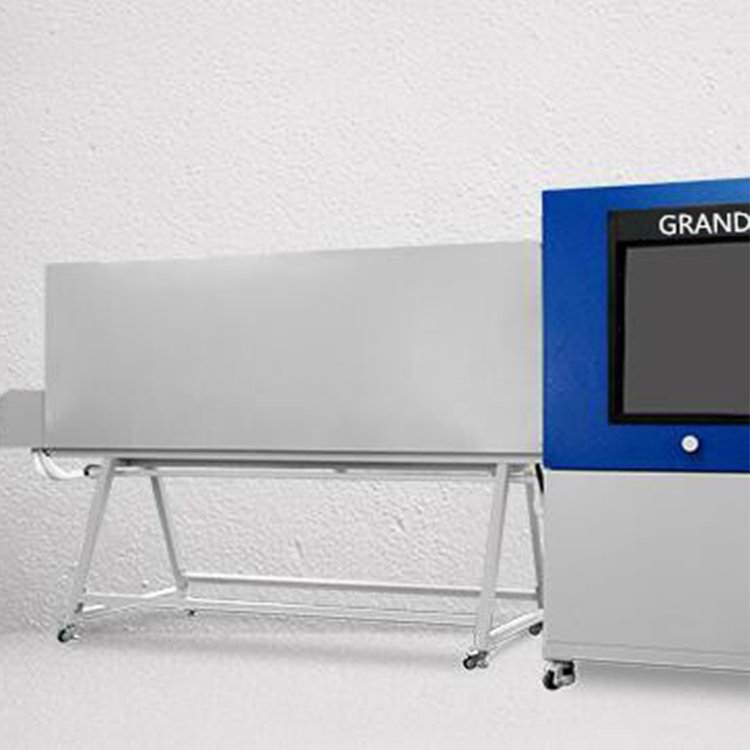

IP65 Waterproof Test Chamber IP65 Waterproof Test Chamber
IP65 Waterproof Test Chamber Controller IP65 Waterproof Test Chamber Controller
IPX5IPX6 Flow Meter IPX5IPX6 Flow Meter
IPX6 Spay Test Spray Nozzle IPX6 Spay Test Spray Nozzle
