Compact Hadron Colliders refer to particle acceleration devices that achieve radical size reduction (typically tabletop to room-scale) through innovative designs. While unable to reach TeV-scale energies like the LHC, they enable unique applications in research, medicine, and industry. Below are core parameters, technical solutions, and implementation scenarios:
Core Parameter Comparison
| Parameter | Compact Hadron Collider | Large Hadron Collider (LHC) |
| Size | Tabletop (≤2 m) → Room-scale (20 m) | 27-km ring tunnel |
| Collision Energy | keV → 100 MeV | 14 TeV (proton-proton) |
| Particle Types | Protons/electrons/ions | Protons/heavy ions |
| Cost | $100K – $5M | > $10 billion |
| Vacuum Requirement | 10-6 – 10-9 mbar | <10-13 mbar |
Key Technical Solutions

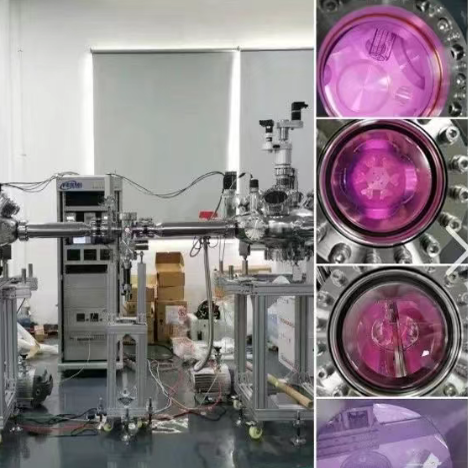

Laser Wakefield Acceleration (LWFA)
Principle: Ultra-intense laser pulses generate plasma waves in gas, where electrons/protons "surf" to achieve GeV energies (1 cm acceleration ≈ 1 km in conventional accelerators).Example: BELLA Laser (USA) accelerated electrons to 4.25 GeV in 9 cm.
Dielectric Wall Accelerator (DWA)
Principle: High-voltage pulses applied to ceramic dielectric walls create GV/m electric fields for ion acceleration.
Progress: RadiaBeam (USA) developed compact proton sources (10–200 MeV) under 5 m length.
Superconducting Cyclotrons
Medical Application: Proton therapy systems (e.g., IBA Proteus ONE, diameter 2.5 m, energy 230 MeV).
Core Application Scenarios
1. Scientific Research & Education
Quantum Material Simulation:
Low-energy ion beams (e.g., <1 MeV protons) irradiate 2D materials (MoS2) to study defect dynamics.
Nuclear Physics Education:
Tabletop systems (e.g., PhysicsOpenLab’s 0.5 MeV proton beam) demonstrate Rutherford scattering.
2. Medical Applications
Proton Therapy:
Compact superconducting cyclotrons (<3 m diameter) enable tumor-targeted radiotherapy (deployed at Ruijin Hospital, Shanghai).
Isotope Production:
Small cyclotrons (e.g., GE MINItrace) generate medical isotopes (18F for PET, 68Ga for diagnostics).
3. Industrial Inspection
Neutron Imaging:
Proton beams (5–10 MeV) bombard lithium targets to produce neutrons for aerospace component nondestructive testing.
Ion Implantation:
Semiconductor doping (e.g., SiC power devices) using 0.1–1 MeV ion beams.
Representative Projects
| Project | Organization/Country | Technology | Energy/Size | Primary Application |
| EuPRAXIA | Europe | LWFA | e⁻: 5 GeV | Free-electron laser light source |
| TAC | MIT (USA) | DWA | p: 15 MeV | Cancer therapy |
| SCC-230 | IBA (China collab.) | Supercond. Cyclotron | p: 230 MeV | Tumor proton therapy |
| LaserBetatron | LOA (France) | LWFA | X-ray: 100 keV | Dynamic material imaging |
Technical Challenges & Solutions
| Challenge | Solution |
| Large beam divergence | Plasma lens focusing (>1000 T fields) |
| Energy instability | Feedback control (laser jitter <0.1%) |
| Low particle flux | High-repetition lasers (kHz) / high-current ion sources |
| Radiation shielding | Tungsten-lead composite (meets ICRP standards) |
Future Directions
Energy Breakthroughs:
Cascaded laser acceleration (LBNL, USA) targets 10 GeV electrons (2025).
Miniaturization:
Chip-scale accelerators (Stanford NAT): Silicon photonic waveguides accelerate electrons (1 MeV/m).
Multidisciplinary Integration:
Laser-driven proton beams for nuclear fusion ignition (experiments at SIOM, Shanghai).
Conclusion:
Compact hadron colliders bridge the gap between large-scale facilities and benchtop tools, offering low-cost, adaptable solutions for precision medicine, industrial inspection, and frontier research. Advances in laser plasma and superconducting technologies will enable GeV-class tabletop systems, democratizing particle physics.
