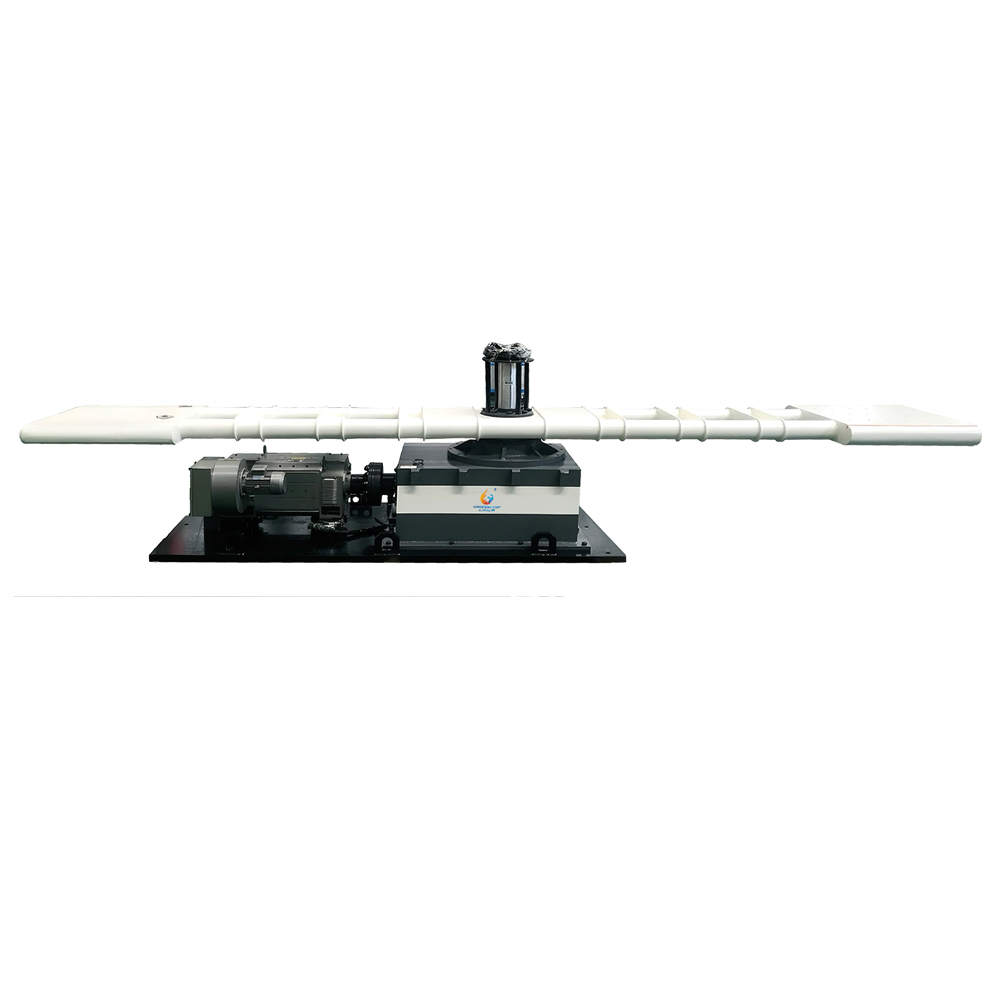

Centrifugal Constant Acceleration Tester is used to test articles under extreme accelerationconditions based on standard like MIL-STD-810F, MIL-STD-202 and IEC68-2-7.
It is most suitable for testing electronic components or devices. Under high g effect on microcircuits, to check adaptability and reliability of wiring and the internal structures. It may expose mechanical and structural defects that are not found with vibration and shock tests.
Centrifugal Constant Acceleration Test Machine is used to evaluate when components,equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units’ electrical parameters.
Features
Advanced control system: Full-automatic computer remote real time control interface. The operator only needs to input simple values to start the equipment and complete the acceleration test accurately.
User-friendly display interface: the control interface can display the test curve, tolerance and test time in real time.
Powerful multi-acceleration continuous test system: It can realize multilevel acceleration continuous test according to the different requirements of the test sample.
Reliable protection measures: open circuit, over limit and over speed protection can be realized.
Multiple control methods: In the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test.
Convenient and quick result output system: After the test, the test report is automatically generated and printed out.
Technical Parameters:
Model | CCA030 | CCA050 | CCA100 | CCA100A | CCA150A | CCA200 | CCA500 | CCA1000 | CCA1500 | |||||||
Max. Load (kg) | 30 | 50 | 100 | 100 | 150*2 | 200 | 500 | 1000 | 1500 | |||||||
Platform Size (mm) | 500*500 | 600*600 | 700*700 | 700*700 | 700*700 | 800*800 | 1000*1000 | 1200*1200 | 1500*1500 | |||||||
Acceleration(G) | 3~100 | 3~50 | ||||||||||||||
Acceleration Accuracy (%) | ≤3 | |||||||||||||||
Specimen Installed Radius (mm) | 1000 | 1200 | 1650 | 2150 | 2000 | 2600 | 3000 | 5400 | 6250 | |||||||
Max Turning Diameter (mm) | 2500 | 3000 | 4000 | 5000 | 4000 | 6000 | 7000 | 12000 | 14000 | |||||||
Launch/Stop Time (Min) | ≤3 | ≤5 | ≤8 | ≤10 | ||||||||||||
Continues Working Time (min) | ≦60 | ≦30 | ||||||||||||||
Test Direction | ±X, ±Y, ±Z | |||||||||||||||
Inner Diameter of Foundation (mm) | Φ3000 | Φ3500 | Φ4500 | Φ5500 | Φ6000 | Φ7000 | Φ8500 | Φ14000 | Φ16000 | |||||||
Slip Ring | Optional according to user requirements | |||||||||||||||
Weight (kg) | 2500 | 4000 | 5000 | 5500 | 6500 | 7000 | 8000 | 10000 | 12000 | |||||||
Environment | Temperature range 0~40℃, Humidity ≤ 80% (non-condensing) | |||||||||||||||
Power | 30KVA | 45KVA | 60KVA | 75KVA | 110KVA | 150KVA | 500KVA | 800KVA | 1000KVA | |||||||
Power Supply | 3-phase AC380V±10% 50Hz | |||||||||||||||
Control | Fully closed-loop digital network (remote) automatic control + manual control | |||||||||||||||
Installation Condition | Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment or According to the foundation drawings provided by the manufacturer | |||||||||||||||
Standards | MIL-STD-810F IEC68-2-7 MIL-STD-202 MIL-STD-750 MIL-STD-883 |
Note:
1.The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2.In addition to providing electrical signals, the collector ring can also optionally add transmission functions such as oil, gas, special signals, Ethernet, and RF signals.
