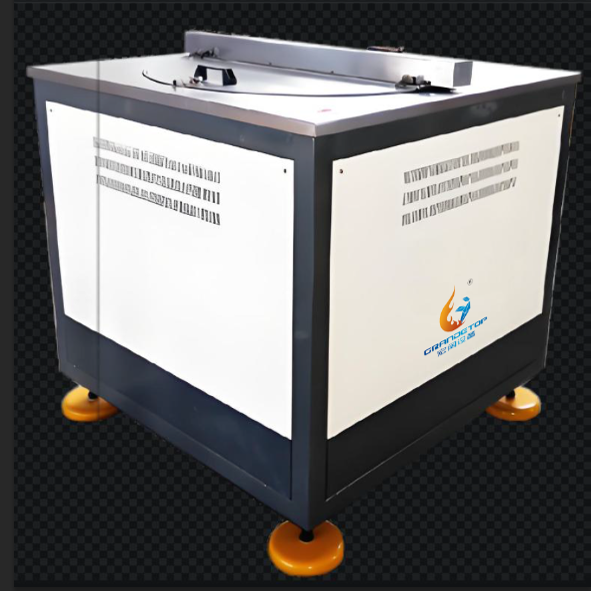

Centrifugal Constant Acceleration Tester (Box Type)
Centrifugal Constant Acceleration Test Machine is used to evaluate when components,equipment and other electrical and electronic products are subjected to constant acceleration environment (except gravity), whether the structure adaptability and performance are good, and obtain the units’ electrical parameters.
Features
Advanced control system: Fullautomatic computer remote realtime control interface. The operator only needs to input simple values to start the equipment and complete the acceleration test accurately.
User-friendly display interface: the control interface can display the test curve, tolerance and test time in real time.
Powerful multiacceleration continuous test system: It can realize multilevel acceleration continuous test according to the different requirements of the test sample.
Reliable protection measures: open circuit, overlimit and overspeed protection can be realized.
Multiple control methods: In the case of automatic control failure or no need of automatic control, the device can still use manual control to complete the test.
Convenient and quick result output system: After the test, the test report is automatically generated and printed out.
Technical Parameters:
| Model | CCA003 | CCA005 | CCA010 | CCA020 | CCA02M | CCA03M | CCA04M | CCA08M |
| Max. Load (kg) *Position | 3*6 | 5*4 | 10*2 | 20*2 | 0.05*N | 0.04*N | 0.03*N | 0.02*N |
| Acceleration(g) | 1~1500 | 1~100 | 200~20,000 | 200~30,000 | 200~40,000 | 200~80,000 | ||
| Max.Height for Specimen (mm) | 200 | 300 | / | |||||
| Installation Radius (mm) | 200 | 500 | 130 | |||||
| Test Direction | ±X, ±Y, ±Z | |||||||
| Launch/Stop Time (Min) | ≤3 | ≤5 | ||||||
| Continues Work time (Min) | 60 | 5 | ||||||
| Acceleration Accuracy (%) | ≤3 | |||||||
| Slip Ring | Optional according to user requirements | / | ||||||
| Overall Dimension (mm) | 1100*1100*1200 | 1850*1520*950 | 1000*1000*1100 | |||||
| Weight (kg) | 1000 | 15000 | 1000 | |||||
| Environment | Temperature range 0～40℃, Humidity ≤ 80% (non-condensing) | |||||||
| Power | 1-phase AC220V±10% 50Hz | |||||||
| Control | Fully closed-loop digital network (remote) automatic control + manual control | |||||||
| Installation Condition | Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment | |||||||
| Standards | MIL-STD-810F IEC68-2-7 MIL-STD-202 MIL-STD-750 MIL-STD-883 | |||||||
Note:
1.The parameters in the table are for reference only, and the parameters agreed upon by the supplier and the buyer shall prevail.
2.In addition to providing electrical signals, the collector ring can also optionally add transmission functions such as oil, gas, special signals, Ethernet, and RF signals.
