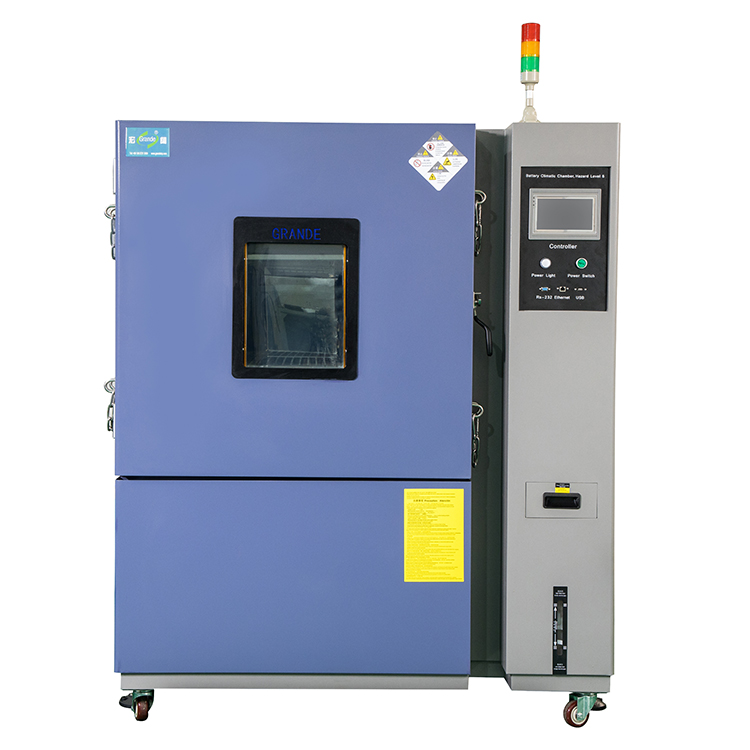

Battery Climatic Chamber Hazard Level 6

Explosion Proof Temperature Humidity Test Chamber for battery

Battery Climatic Chamber, Hazard Level 6

Anti-Explosion Temperature Humidity Test Chamber

Explosion protection Temperature Humidity Test Chamber

Lithium Ion Battery Testing

Inquire Now Next Product

Product Details

Standards

IEC 62133-2017

UL 1642

UN 38.3

Technical parameters

Model No			GTH-080	GTH-150	GTH-225	GTH-408	GTH-800	GTH-1000
Working room(L)			80	150	225	408	800	1000
Inner chamber size(mm)WHD			400500400	500600500	500750600	600850800	10001000800	100010001000
Exterior chamber size(mm)WHD			9009001500	95015001050	95016501150	105017501350	145019001350	145019001550
Packaging volume(CBM)			4	5	6	6.5	7	8
G.W.(KGs)			300	320	350	400	600	700
Performance	Temperature range		-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃，-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃,600℃,700℃,800℃,900℃,1000℃
	Humidity range		20%RH ～98%RH(10%RH ～98%RH or 5%RH ～98%RH)
	Temp.&Humi fluctuation		±0.2°C, ±0.5%RH
	Temp.Humi.Uniformity		±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min.（±1.5°C; ±1%RH(RH≤75%)
	Temp.humi resolution		0.01°C; 0.1%RH
	Heating up time	°C	100 150
		Min	Grande Sales Engineers will confirm you after confirmation on heating rate per minute.
	Cooling down time	°C	0 -20 -40 -60 -70
		Min	Grande Sales Engineers will confirm you after confirmation on cooling rate per minute.
	Heating rate		≥3°C/min
	Cooling rate		≥1°C/min
	Heating & Cooling Rate(Options)		1°C/min,3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min,20°C/min,25°C/min,30°C/min linear average or nonlinear average

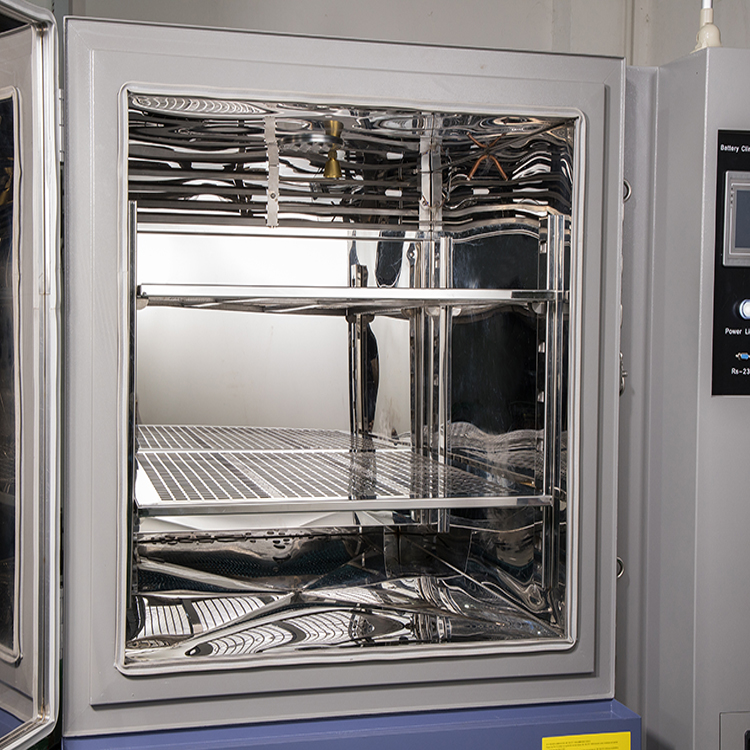

Material	Inner chamber material		SUS#304 stainless steel plate
	Exterior chamber material		SUS304 Stainless steel plate+ powder coated
	Insulation Material		PU & Fiberglass wool
System	Air circulation system		Cooling fan
	Fan		Sirocco fan
	Heating System		SUS#304 stainless steel high-speed heater
	Air flow		Forced Air Circulation(It enters at bottom and leaves at top)
	Humidification system		Surface evaporation system

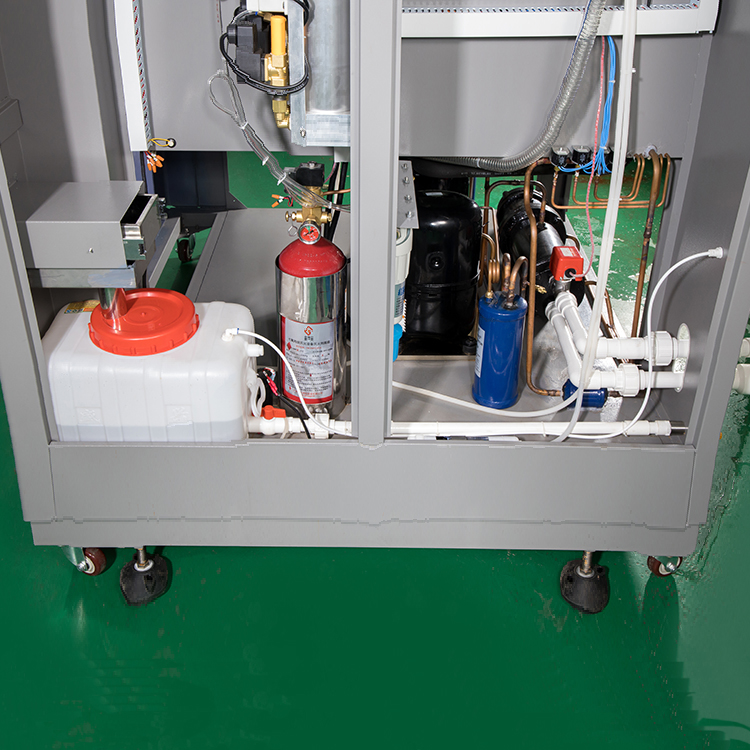

	Refrigeration system		Imported compressor,French Tecumseh compressor or German Bitzer compressor,finned type evaporator,air(Water)-cooling condenser
	Refrigerating fluid		R23/ R404A USA Honeywell.
	Condensation		Air(Water)-cooling condenser
	Dehumidifying system		ADP critical dew point cooling/dehumidifying method
	Controlling system		PID Digital electronic indicators+S.S.R.With PID automatic calculation capability
	Operation interface		Grande Expertise in Temperature & Humidity Controller,Chinese-English Shift.
Explosion Proof System	Standard configuration		2 Ø100MM pressure relief port, 4 explosion-proof chainsExplosive pressure relief deviceWhen the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:A. When the test items explode,there is a pressure release pipeB. Protect the test equipment from sudden air pressure damageC.Protecting the human beings and property
	Multipoint temperature monitor		Adopts Grande developed controller, which can be used to acquire surface temperature points of multiple products
	CO2 fire extinguisher		Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
	CO & H2 gas detector		When the battery will produce gas, it will detect gas solubility and discharge to outdoor when it exceeds the standard
	Exhaust valve/Ventilator		When the test sample produces harmful gas, ventilate and exhaust internally.When the pressure in the tank exceeds the pressure of the safety valve and opens the pressure relief valve,the exhaust fan is automatically turned on.
Explosion Proof System	Standard configuration		2 Ø100MM pressure relief port, 4 explosion-proof chainsExplosive pressure relief deviceWhen the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped with:Bursting disc,protective cover,sensor switch,exhaust fan function:C. When the test items explode,there is a pressure release pipeD. Protect the test equipment from sudden air pressure damageC.Protecting the human beings and property
	Multipoint temperature monitor		Adopts Grande developed controller, which can be used to acquire surface temperature points of multiple products
	CO2 fire extinguisher		Automatic fire extinguishing and automatic shutdown of the machine to protect the equipment from burning
Controller	Programmable capability		Save 120 profiles with up to 1200 steps each program
	Setting range		Temperature：-200℃+1000℃
	Reading accuracy		Temperature：0.01℃
	Input		PT100 or T Sensor
	Control		PID control
	Communication interface		Equipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
	Print function		Japan Yokogawa Temperature Recorder(Optional accessories)
	Auxiliary		Limit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)

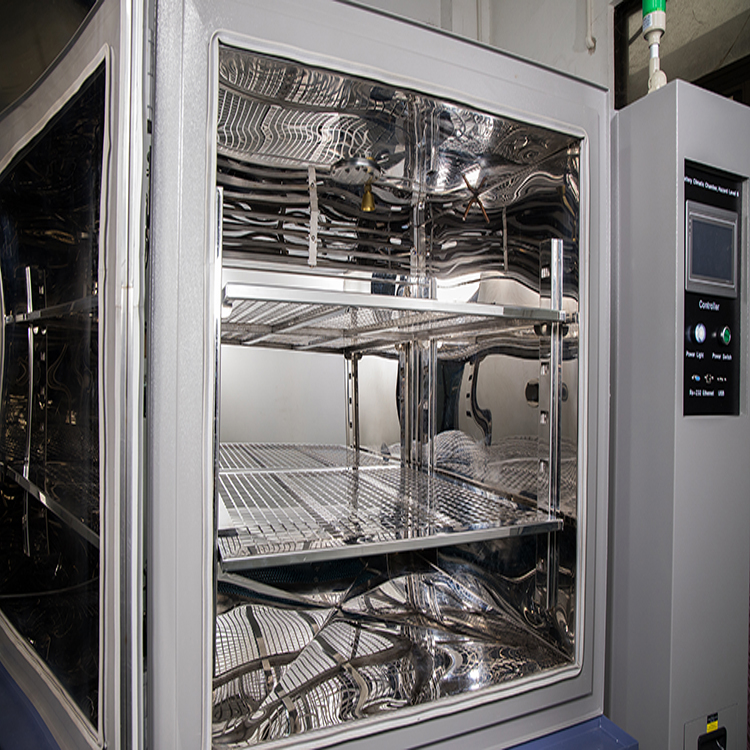

Accessories			Multi-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable)，Guaze 5pcs,Operation manual 1 set.
Safety protection device			Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supply			AC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized service			Welcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
