Temperature Aging Test Chamber
  • Temperature Aging Test Chamber
  • Temperature Aging Test Chamber
  • Temperature Aging Test Chamber
  • Temperature Aging Test Chamber
  • Temperature Aging Test Chamber
Temperature Aging Test ChamberTemperature Aging Test ChamberTemperature Aging Test ChamberTemperature Aging Test ChamberTemperature Aging Test Chamber

Temperature Aging Test Chamber

RT+10℃~150℃,Customization is availableIt is applicable to a variety of products, batteries, materials, components, electronics, automobiles, aviations, plastics, chemicals, foods, chemicals, etc.

Product Details

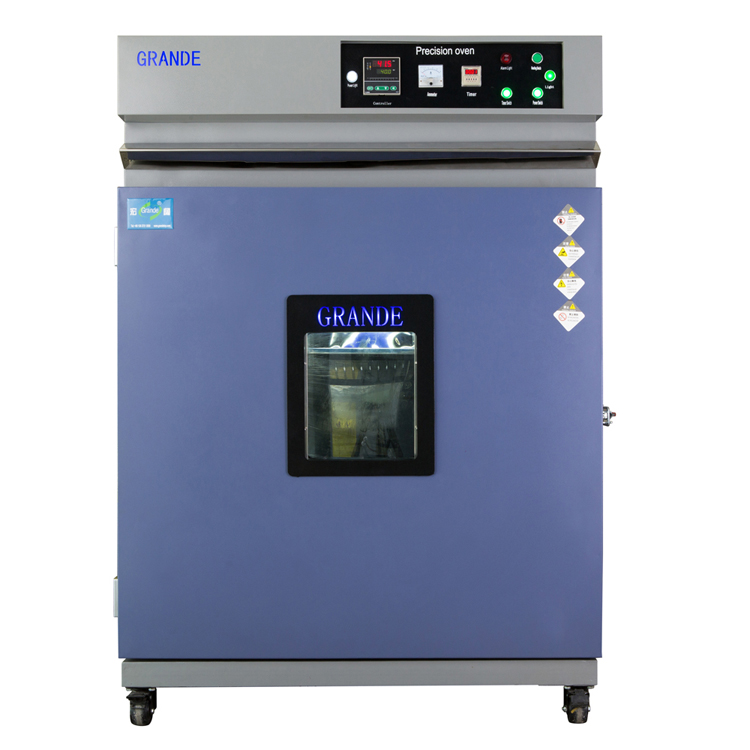

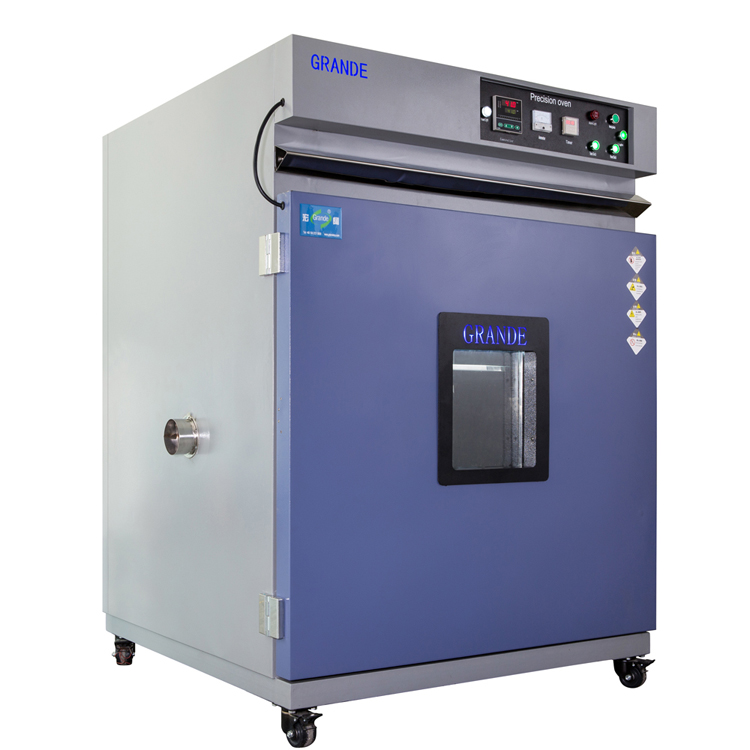

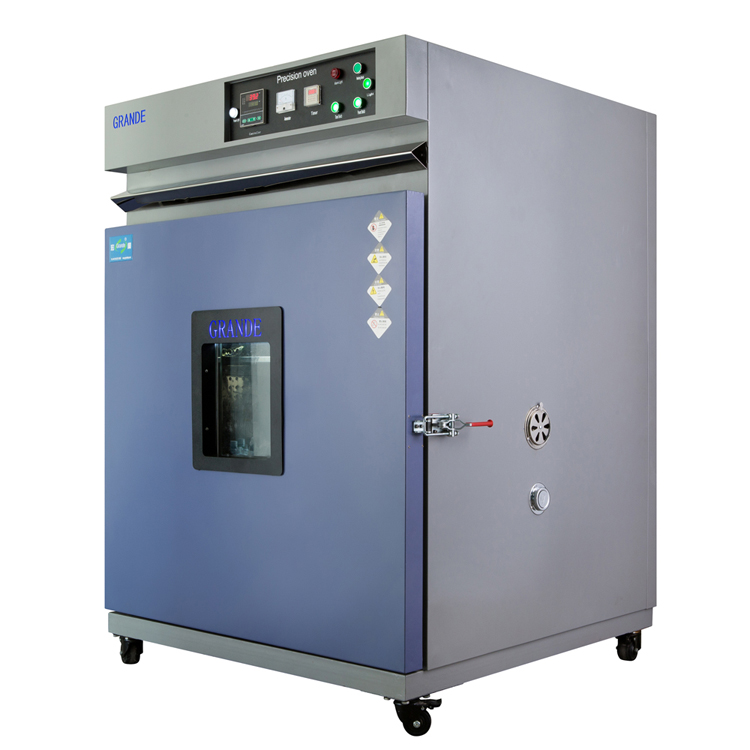

Grande offers two types of standard models: the space-saving vertical ovens and the horizontal ovens. Both provide horizontal airflow for even exposure to all samples. Control constancy as low as ±0.1°C and uniformity as low as ±0.5°C ensures accurate operation. An exhaust damper is included to ventilate the oven and allow quick cool-down.
The standard controller offers two-step programming for simple heat-up or shut-down steps. An inexpensive upgrade allows creation of up to ten programs for full cycling applications. The large display is easy to use and read. Four levels of overheat protection are included for safety. A wide variety of options are also available.
Features

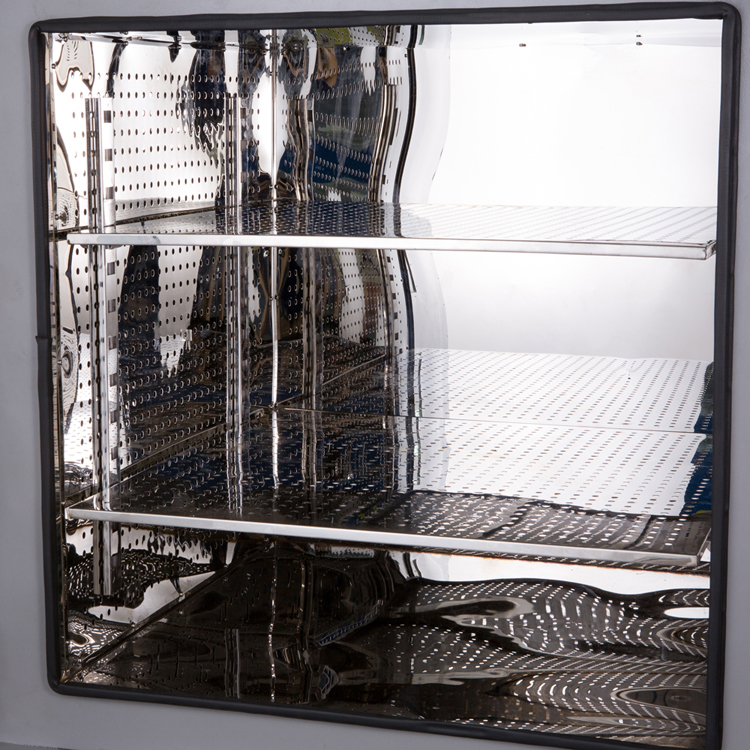

· Stainless steel interior

· Exclusive Grande controller with large LED display

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Visual and audible alarm with diagnostic fault code

· Specimen power supply control terminal: turns specimen off if chamber faults

· Four-tiered safety system for overheat conditions

· Two shelves included standard, rated for 40 lbs. or more

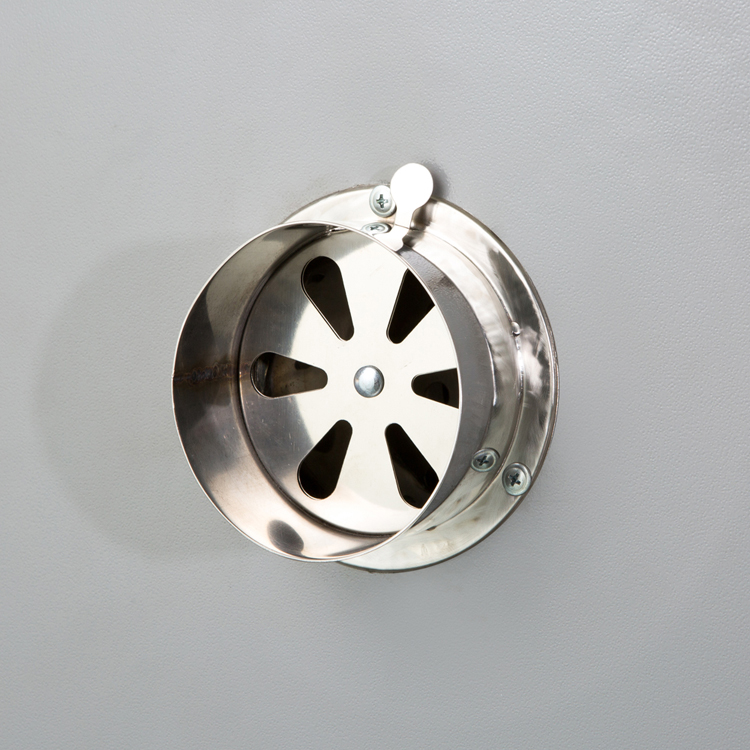

· Exhaust damper for ventilating oven and fast cool-down

· Large variety of models and optional features

See additional model variations available in the right-hand column
Model types:

· Horizontal-type: Controller and blower to the right of the chamber

· Vertical-type: Controller and blower at the top of the chamber (air distributed horizontally from back wall)

Optional accessories

USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

Technical parameters:

Model NoGIO-072GIO-270GIO-480GIO-600GIO-720GIO-1000
Inner chamber size(mm)W*H*D 450*400*400600*900*500800*1000*6001000*1000*6001200*1000*6001000*1000*1000
Exterior chamber size(mm)W*H*D900*1050*5501100*1600*6501200*1700*8401400*1750*8401750*1750*8401750*1750*1550
Temperature rangeRT+10℃~+200℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,2500℃,3000℃,Customization is available
PerformanceTemperature fluctuation±3℃

Temperature Uniformity±0.1℃ AT 200℃;±1.5%AT300℃

Temperature resolution0.1℃/1℃

Heating up time500℃/30min
MaterialExterior chamber materialStainless steel plate+ Power Coated

Inner chamber materialSUS#304 stainless steel plate

Insulation MaterialPU& Fiberglass wool
Systemcirculation systemSirocco fan

Heating systemSUS#304 stainless steel high-speed heater

ControllerTouch-screen controller or Omron E5AZ controller+ S.S.R.
DoorSingle gateDouble gate
Other ComponentsCable port(50mm), control status indicator lights, loading shelves(2pcs for free)
 Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Power(KW)468101215
Customized serviceWelcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.
The technical information will be subjected to change without notice
