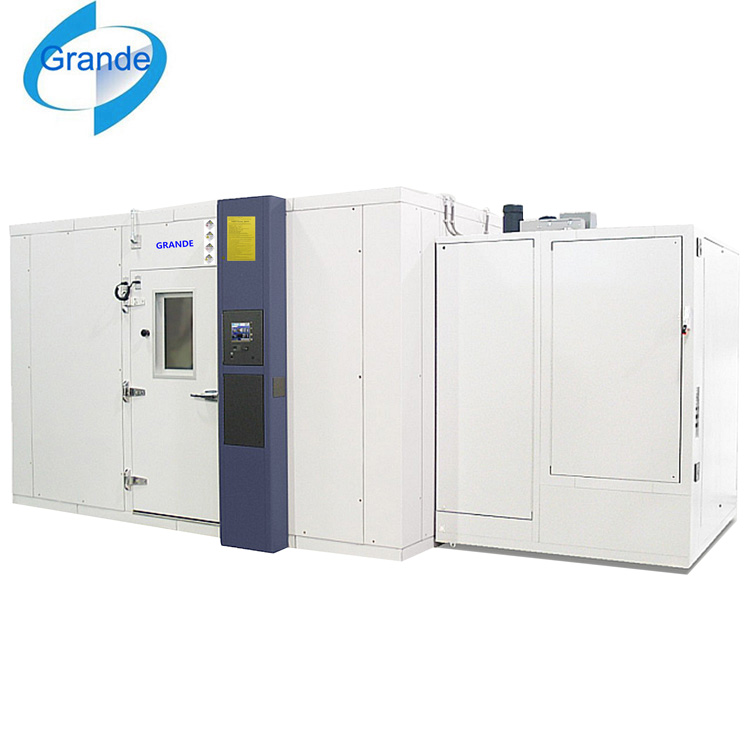

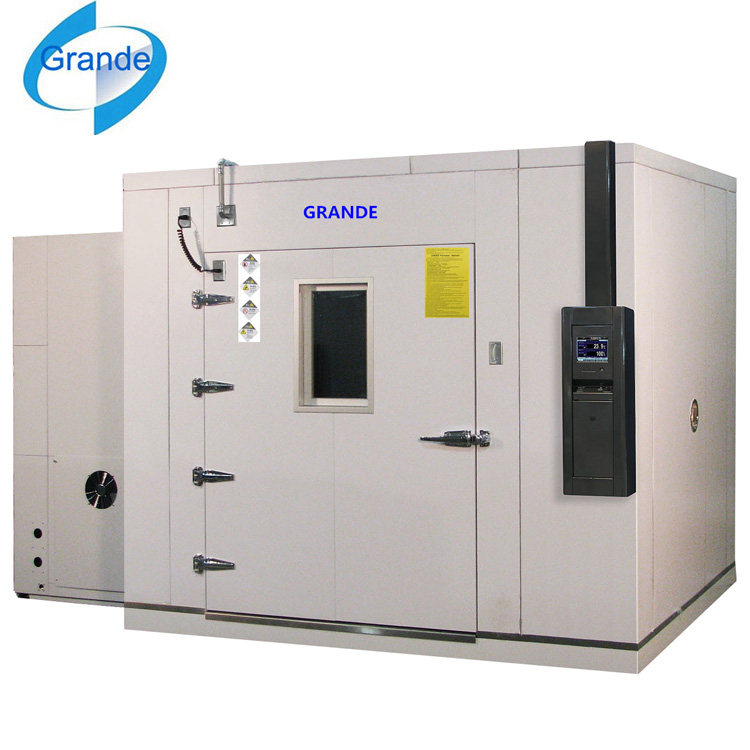

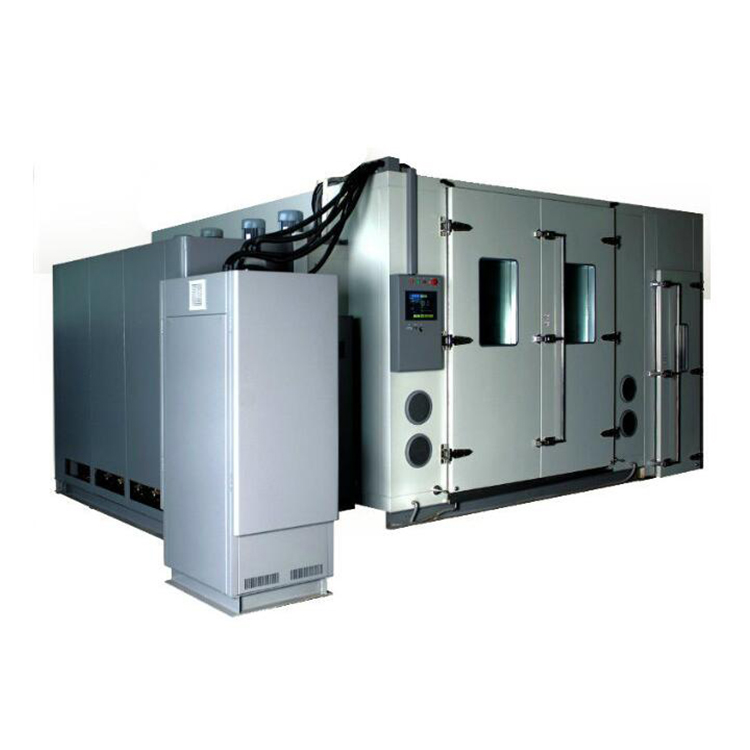

Walk-in Test Chamber

Grande has standard air conditioning systems, called Modular Air Plenums (MAP). These MAPs are designed with the proper heating, refrigeration, and humidity control to achieve your desired performance and capabilities. The MAP simply rolls-up to an assembled panel chamber to complete installation.

Product Details

Walk-in Climate Chambers/rooms

Especially designed for steady-state operation

Stability walk-in rooms are designed for light-duty testing or long-term steady-state evaluation of pharmaceuticals and other products.

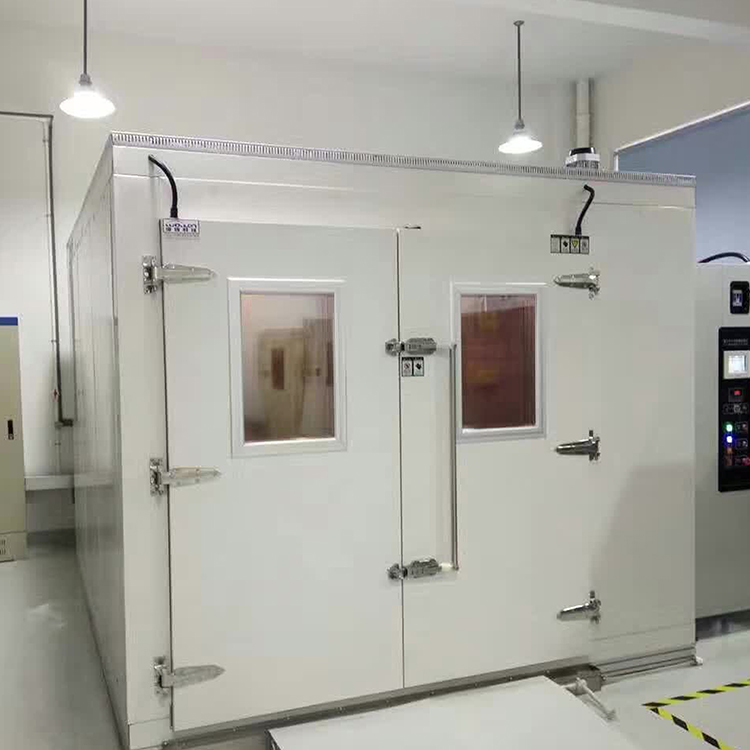

Panelized Chamber/Room

Our panelized walk-in chambers use urethane-foam panels in a stainless steel or galvanized interior skin. The panels are locked together with internal cam latches. This is the same construction used for walk-in coolers in restaurants and supermarkets, but of a higher quality.


Temperature and Humidity Control

Grande has standard air conditioning systems, called Modular Air Plenums (MAP). These MAPs are designed with the proper heating, refrigeration, and humidity control to achieve your desired performance and capabilities. The MAP simply rolls-up to an assembled panel chamber to complete installation.


Features

PID controller

Stainless steel interior (or galvanized for savings)

Painted galvanized steel exterior for long life

MAP service doors are hinged (no tools or lifting)

Easy access to components

Reliable steam generator system for humidity applications

Sheathed electric heaters for safety and reliability

Adjustable vanes in supply grille allow directing of airflow as needed


Technical parameters:


Model NoGPW
Working room(L)Please kindly give us your request and details,it is custom service.
Inner chamber size(mm)W*H*D
Temperature Range0℃;-20℃;-40℃;-60℃~+120℃(+120℃)
Humidity Range20~90%RH
PerformanceTemp.&Humi.Fluctuation±0.3℃;±2.5%RH
Temp.&Humi.Uniformity±0.1℃;±5%RH
Temp.&Humi.Resolution0.1℃; 0.1%RH/0.01; 0.1%RH
Heat up time(20℃~high temp.)80

min50
Cool down time(20℃~low temp.)0-20-40

min5570100
MaterialInner chamber materialStainless steel plate+ powder coated
Exterior chamber materialSUS#304 stainless steel plate
Insulation MaterialPolyurethane foam 100mm(75mm)(50mm)
SystemWind CirculationSiroco fans
Heating systemSUS#304 stainless steel high-speed heater
Humidifying systemSurface evaporating system
Refrigeration systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Dehumidifying systemADP critical dew point cooling/dehumidifying method
Controlling systemDigital electronic indicators+S.S.R.With PID automatic calculation capability
Other ComponentsVaccum glass inspection window, cable port(50mm), control status indicator lights,
chamber lamp, loading shelves(2pcs for free)
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power Supply3Ψ 380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
