24 Ultra Cold Storage Freezers
  • 24 Ultra Cold Storage Freezers
  • 24 Ultra Cold Storage Freezers
  • 24 Ultra Cold Storage Freezers
  • 24 Ultra Cold Storage Freezers
  • 24 Ultra Cold Storage Freezers
24 Ultra Cold Storage Freezers24 Ultra Cold Storage Freezers24 Ultra Cold Storage Freezers24 Ultra Cold Storage Freezers24 Ultra Cold Storage Freezers

24 Ultra Cold Storage Freezers

Grande is to provide the -150℃ Cryogenic freezer,-135℃ Cryogenic storage tank,-86℃ Ultra freezer,-60℃ Tuna freezer,-50℃ Ultra freezer,-40℃ Ultra freezer,-25℃ Freezer,Light-Resistant Cold Closet, Medical refrigerator, Ultra Cold Storage Freezer and Ultra Low Temperature Refrigerator Grande -86℃ Ultra Low Temperature Freezer is ideal for long term preservation of virus, germ, vaccine, biological tissue and organs, special food, medicines, reagents etc.

Product Details

Grande is to provide the -150℃ Cryogenic freezer,-135℃ Cryogenic storage tank,-86℃ Ultra freezer,-60℃ Tuna freezer,-50℃ Ultra freezer,-40℃ Ultra freezer,-25℃ Freezer,Light-Resistant Cold Closet, Medical refrigerator, Ultra Cold Storage Freezer and Ultra Low Temperature Refrigerator Grande -86℃ Ultra Low Temperature Freezer is ideal for long term preservation of virus, germ, vaccine, biological tissue and organs, special food, medicines, reagents etc.

ModelGFR-86V50GFR-86V188EGFR-86V340IIGFR-86V340E
Cabient TypeVerticalVerticalVerticalVertical
Inner Door1322
Cooling systemDirect coolingDirect coolingDirect coolingDirect cooling
DefrostManualManualManualManual
RefrigerantHFCMixed refrigerantHFCMixed refrigerant
Ambient Temperature10~32℃10~32℃10~43℃10~32℃
Temperature Range-40~-86℃-40~-86℃-60~-86℃-40~-86℃
ControllerManualManualManualManual
Digital Display (LCD/LED)Digital DisplayDigital DisplayDigital DisplayDigital Display
Voltage (V/Hz)187-242 V, 50Hz~60Hz187-242 V, 50Hz~60Hz187-242 V, 50Hz~60Hz187-242 V, 50Hz~60Hz
Power (W)450W600W1350W1650W
Capacity50188340340
Net / Gross Weight (kg)75/95145/180190/220175/205
Outer Sizes (W*D*H)mm540 * 620 * 1115830 * 810 * 1607.5845 * 1072 * 1907855 * 1006 * 1920
AlarmsHigh/Low temperature alarms

Power Failure

Voltage abnormal

Sensor error

Automatic clean-filter alarm

Controller error

Low battery alarm

High ambient temperature

Door ajar
Accessories

Foot, Caster Testing hole, diameter

USB port,

Alarm port

Temperature recorder (Optional)

CertificateCE,ISO
Customized serviceWelcome to Non-standard, Special requirements, OEM / ODM orders.
The technical information will be subjected to change without notice

Material

Outer with color sprayed steel; inner with SUS304; insulation with PU whole foam, CFC free, efficient environmental friendly; 2 inner SUS doors and 3 SUS shelves

Cooling System

Optimized two-cascade system,more stable cooling system;all the parts could be replaced,convenient for maintenance,the device could work under 43℃ high temperature Used Temp rite Oil separator, Bitzer or Tecumseh compressor, friendly refrigerant

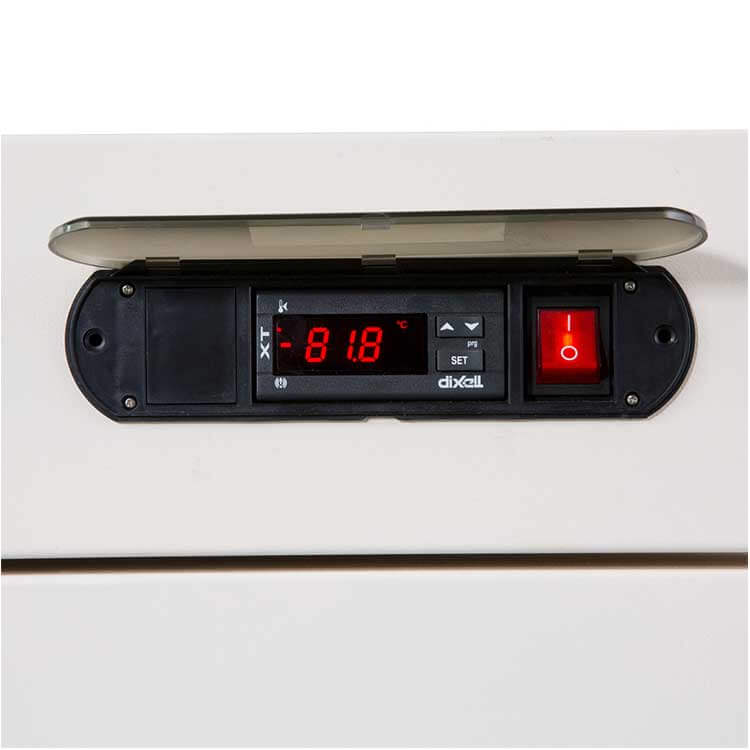

Control System
Micro sensor based temperature control,digital temperature display

LCD touch screen for clear observation and easy programming

Three months temperature and alarm records could be read via the USB port

Optional monitoring module and exclusive software to realized remote monitoring equipment safety

Safety

High/Low temperature alarm, Power failure alarm for hours, Voltage abnormal alarm.Sensor error alarm. Low battery alarm, Automatic clean-filter alarm, High ambient temperature alarm, Door ajar alarm
Alarm style: audible and visible alarm,remote alarm

Backup battery for alarm hours when power off

Battery life reminder function to prompt the user before the battery needs to be replaced

Keyboard lockable, password protection prevent set parameter randomly

Power failure protect; the device will be attacked by the high current when all devices restart same time. The start relay function will start the device in safe time interval

Features

Removable condenser cover,convenient for maintenance

Place for installing chart temperature recorder

Safety lock design,prevent abnormal door status

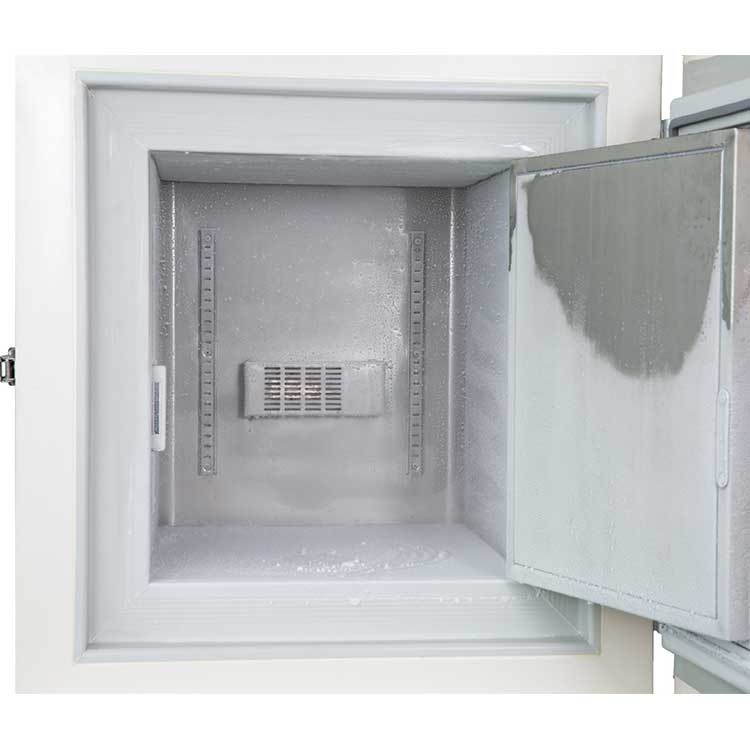

Removable inner doors

Adjustable SUS shelves

Professional two testing holes

Four Casters,convenient for moving

Optional Frozen racks
