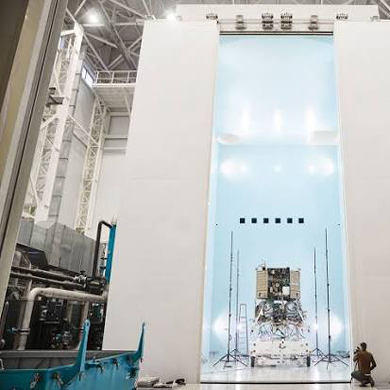

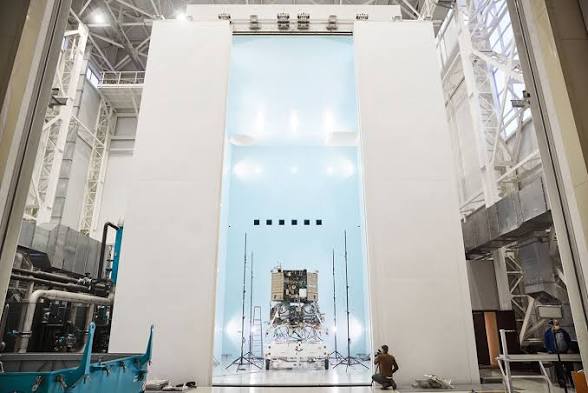

Reverberation Acoustic Chamber

The main technical specifications of the proposed reverberation chamber test system are as follows:

- Theorical Volume: V1800 m³

- Dimension: ~16m×16m×7m（L×W×H）

- Hard and smooth walls decreasing the absorption

- MAX OASPL:148dB

- Spatial homogeneity: the homogeneity in the empty chamber will have to be better than 6 dB between 2 microphones for each frequency octave band, and better than 1dB for OASPL..

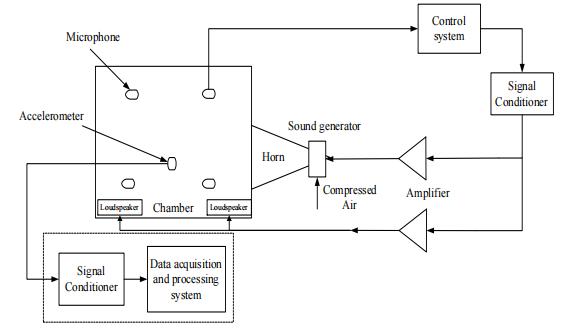

- Sound source: Three horns together with modulators will be provided, one set loudspeaker will be provided to generate sound at high frequency range.Gas generation system: compressed air, flowrate will match with requirement of modulators, Compressors\air dryers\filters \pipeline and tanks etc. will be designed and provided.

- Main door: Door(s) shall be closely bounded to the chamber during a test to avoid a relative displacement which will affect the acoustic performance. The size of main door can be customized; the preliminary size is 5m(W)×6m(H).

- Isolation: Spring boxes solution is the base solution. The first 6 modes of rigid body will be  lower than 6 Hz.

- Acoustic test control system: 8 output channels and 16 input channels. Spectrum can be set in 1/1 oct and 1/3 oct.

- Microphone:16 microphones and ten microphone holders.
