Temperature Only Test Chamber/High And Low Temperature Test Chamber
  • Temperature Only Test Chamber/High And Low Temperature Test Chamber
  • Temperature Only Test Chamber/High And Low Temperature Test Chamber
  • Temperature Only Test Chamber/High And Low Temperature Test Chamber
  • Temperature Only Test Chamber/High And Low Temperature Test Chamber
  • Temperature Only Test Chamber/High And Low Temperature Test Chamber
Temperature Only Test Chamber/High And Low Temperature Test ChamberTemperature Only Test Chamber/High And Low Temperature Test ChamberTemperature Only Test Chamber/High And Low Temperature Test ChamberTemperature Only Test Chamber/High And Low Temperature Test ChamberTemperature Only Test Chamber/High And Low Temperature Test Chamber

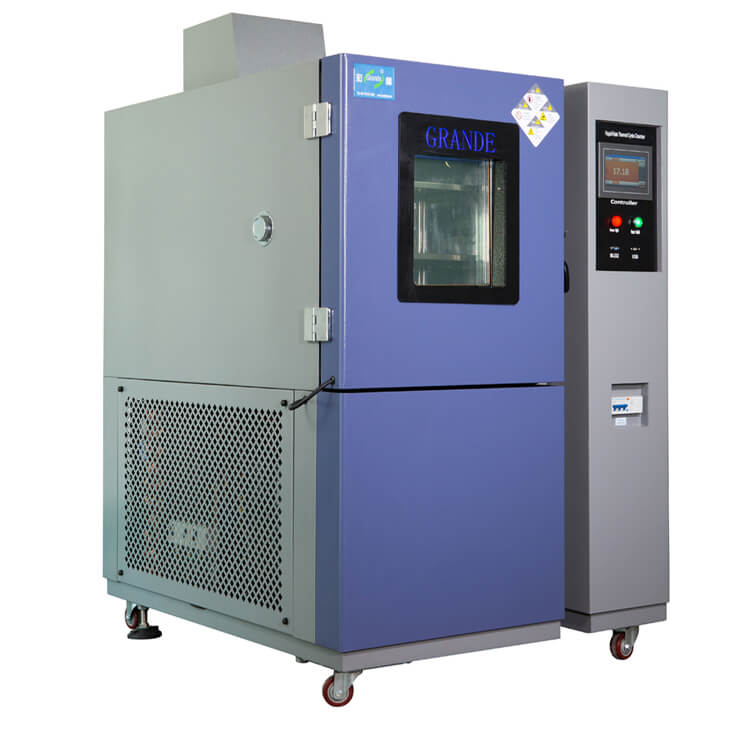

Temperature Only Test Chamber/High And Low Temperature Test Chamber

The Temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements.

Temperature Only Test Chamber Video

Product Details

Temperature Only Test Chambers

Temperature chamber models designed to save lab space

The Temperature chamber series provides an economical and space-saving solution for a variety of temperature testing requirements.

Lowest temperature: -20 or -70°C (-4 or -100°F)

Highest temperature: 180°C (354°F)

The extended temperature ranges of the Standard series make testing at extreme conditions possible without buying a larger, stand-alone chamber. Two chamber sizes are available, as well.

The programmer includes a temperature alarm as just one part of Grande's three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.


Features

High performance and quiet operation (65 dBa)

Space-saving footprint, designed for flush installation to wall

Stainless steel exterior

Full thermal break around doorframe

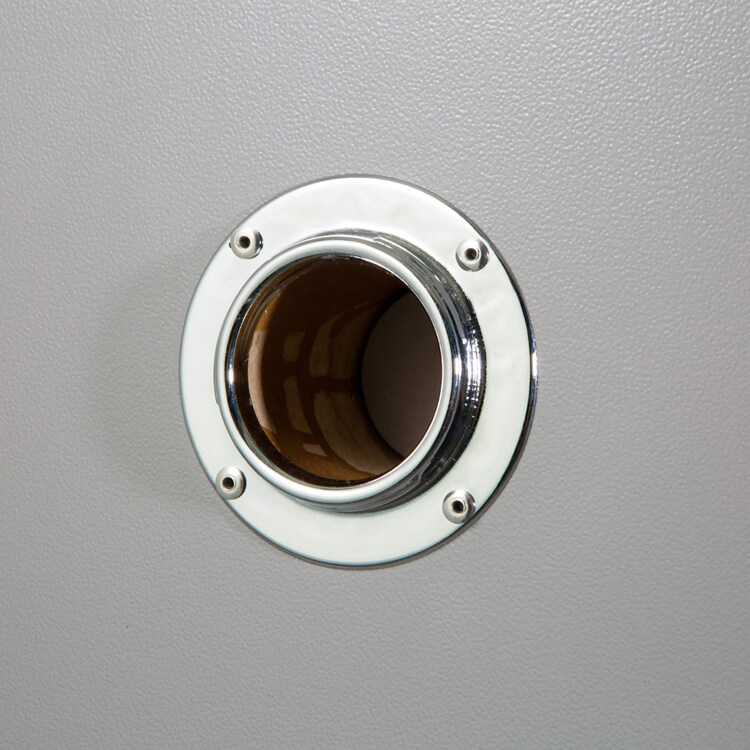

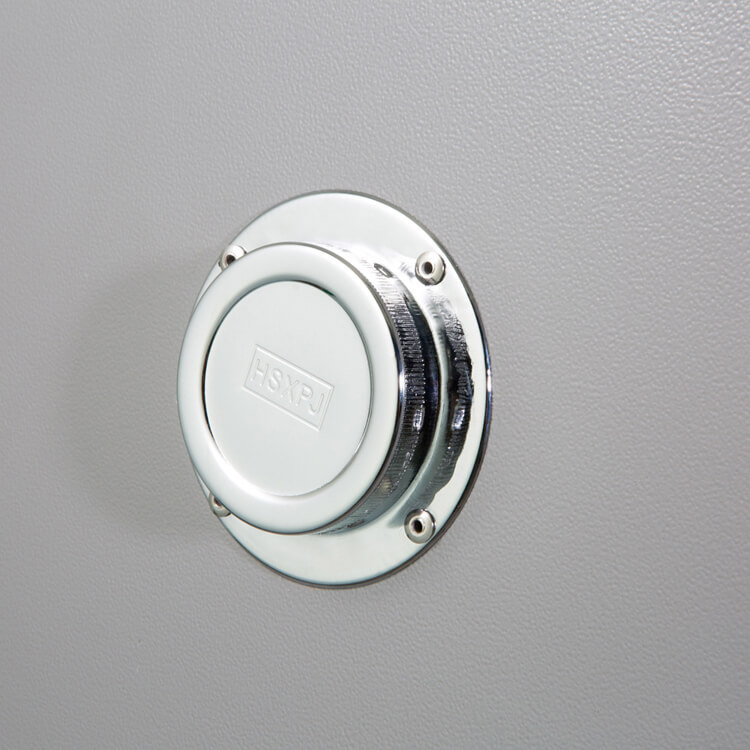

One 50mm (2") or 100mm (4") diameter cable port on left, with flexible silicone plug

Three levels of overheat protection, plus overcool protection

Easy lift-off service panels, electrical access on left

Detachable eight-foot power cord with plug

ETL listed electrical panel conforming to UL 508A

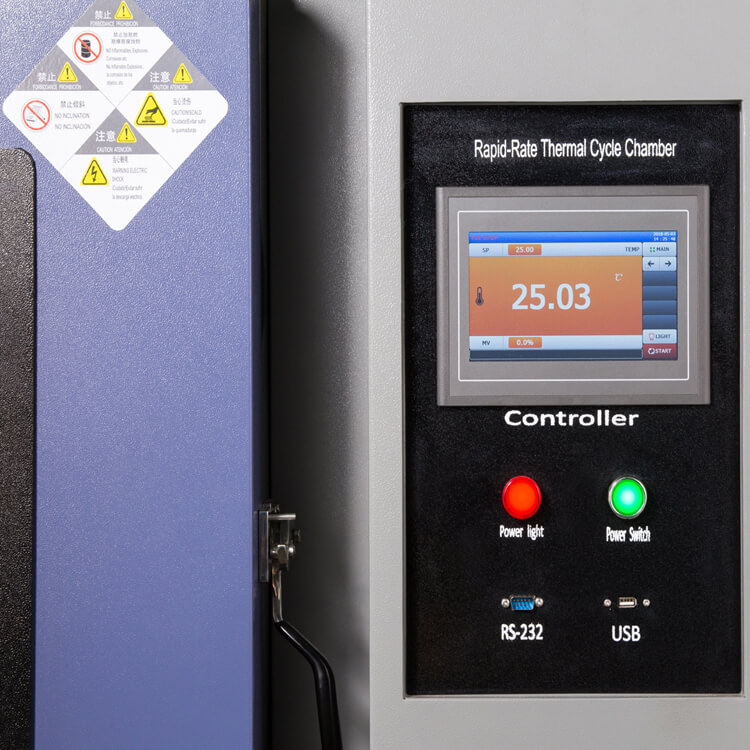

Touch-screen programmer/controller with Ethernet

Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)

One event relay for external device control, plus specimen power interlock relay for safety

Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB and RS-232 ports available, as well.


Corresponding Standard of the Temperature and Humidity Test Chamber:

1.GB11158 high-temperature testing condition

2.GB10589-89 low-temperature testing condition

3.GB10592-89 high-low-temperature testing condition

4.GB/T10586-89 humidity testing condition

5.GB/T2423.1-2001 low-temperature testing condition

6.GB/T2423.2-2001 high-temperature testing condition

7.GB/T2423.3-93 humidity testing condition

8.GB/T2423.4-93 alternating temperature testing machine

9.GB/T2423.22-2001 temperature testing method

10.IEC60068-2-1.1990 low-temperature testing method

11.IEC60068-2-2.1974 high-temperature testing method

12.GJB150.3 high-temperature test

13.GJB150.4 low-temperture test

14.GJB150.9 humidity test


Technical parameters:

Model NoGTO-080GTO-150GTO-225GTO-408GTO-800GTO-1000
Working room(L)801502254088001000
Inner chamber size(mm)W*H*D 400*500*400500*600*500500*750*600600*850*8001000*1000*8001000*1000*1000
Exterior chamber size(mm)W*H*D900*900*1500950*1500*1050950*1650*11501050*1750*13501450*1900*13501450*1900*1550
Packaging volume(CBM)233.54.55.56
G.W.(KGs)300320350400600700
Heating & Cooling Rate3°C/min, 5°C/min, 8°C/min, 10°C/min, 15°C/min linear average or nonlinear average
PerformanceTemperature range

-160℃,-150℃,-120℃,-100℃,-80℃,-70℃,-60℃,-40℃,-20℃,0℃~+150℃,200℃,250℃,300℃,400℃,500℃,600℃,700℃,

800℃,900℃,1000℃

Temp.fluctuation±0.5°C
Temp.Uniformity±1.5°C,No-load operation,After stead state 30 min.
Temp.resolution0.01°C
Heating rate≥3°C/min
Cooling rate≥1°C/min
MaterialInner chamber materialSUS#304 stainless steel plate
Exterior chamber materialStainless steel plate+ powder coated
Insulation MaterialPU & Fiberglass wool
System Air circulation systemCooling fan
FanSirocco fan
Heating SystemSUS#304 stainless steel high-speed heater
Air flowForced Air Circulation(It enters at bottom and leaves at top)

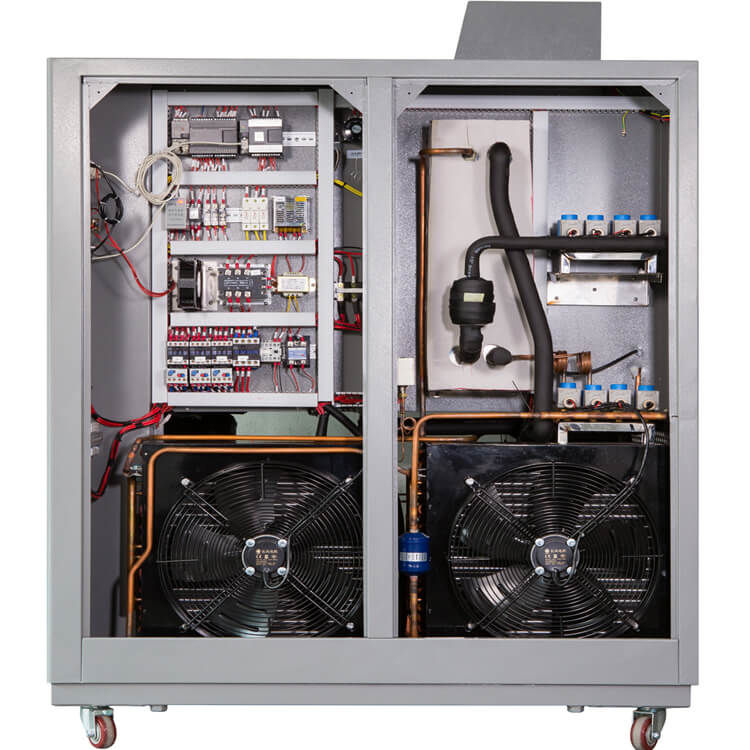

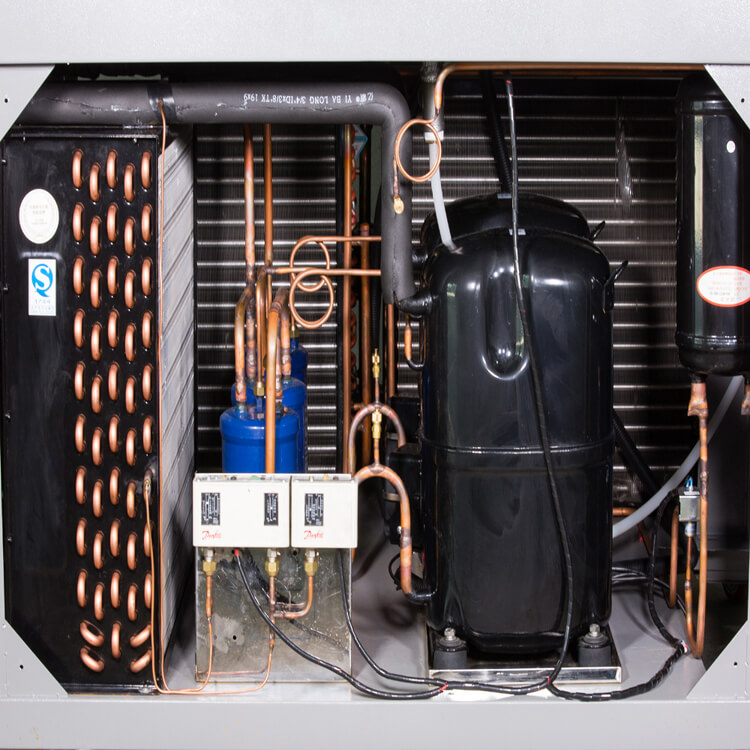

Refrigeration systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Refrigerating fluidR23/ R404A USA Honeywell.
CondensationAir(Water)-cooling condenser
Controlling systemDigital electronic indicators+S.S.R.With PID automatic calculation capability
Operation interfaceGrande Expertise in Temperature & Humidity Controller,Chinese-English Shift.
ControllerProgrammable capabilitySave 120 profiles with up to 1200 steps each
Setting rangeTemperature:-100℃+300℃
Reading accuracyTemperature:0.01℃
InputPT100 or T Sensor
ControlPID control
Communication interfaceEquipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
Print functionJapan Yokogawa Temperature Recorder(Optional accessories)
AuxiliaryLimit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)

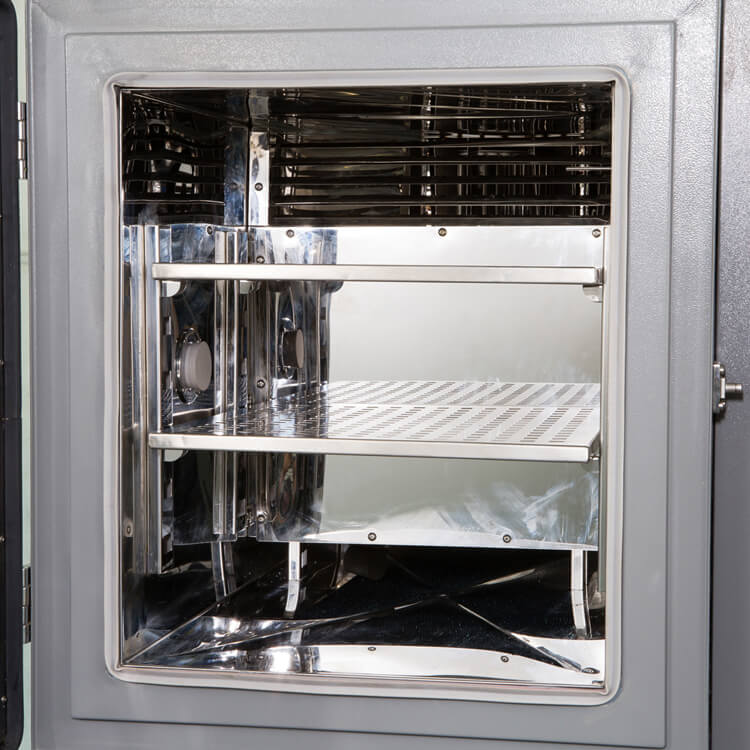

AccessoriesMulti-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice


Optional accessories

1,Inner glass door with manual operating ports.

2,Temp./Humi.Recorder.

3,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

4,Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.
