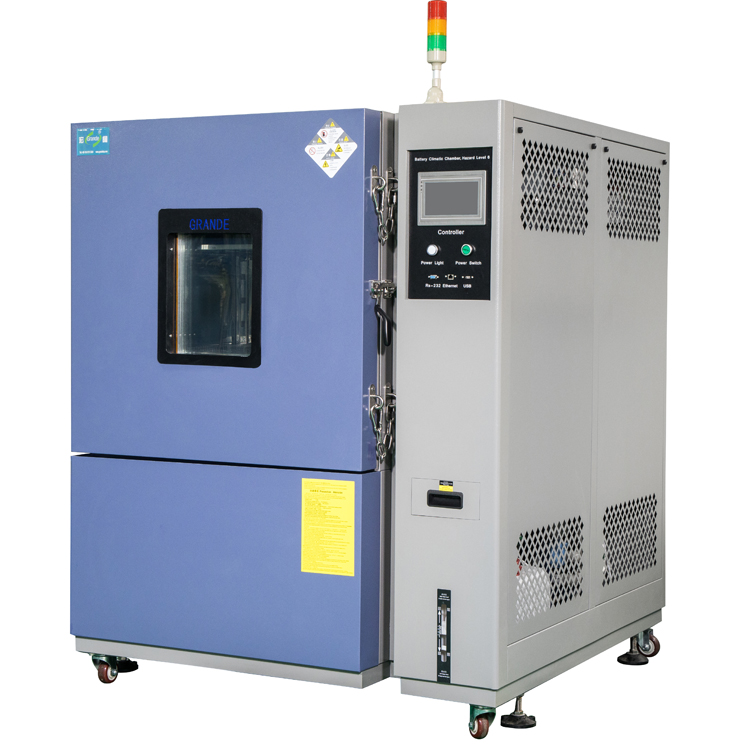

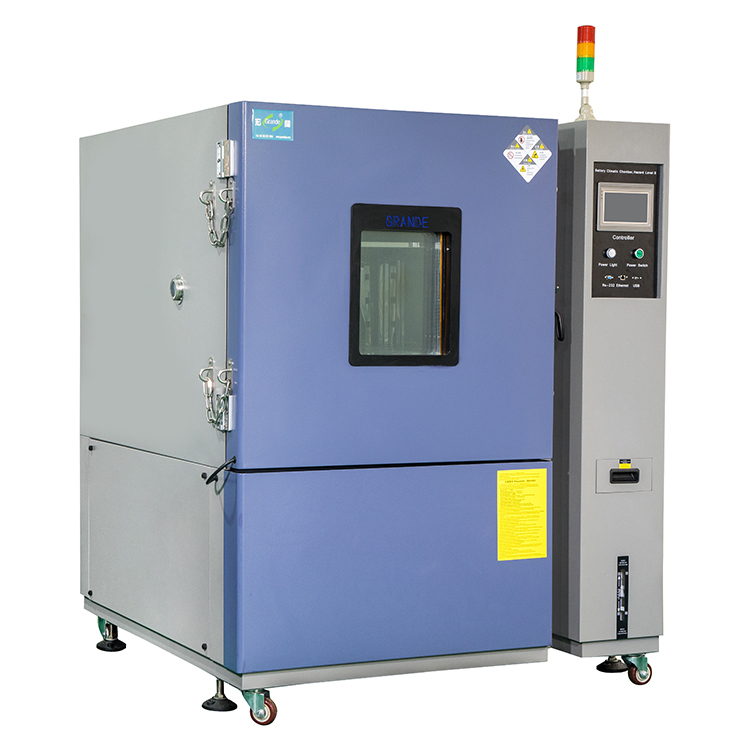

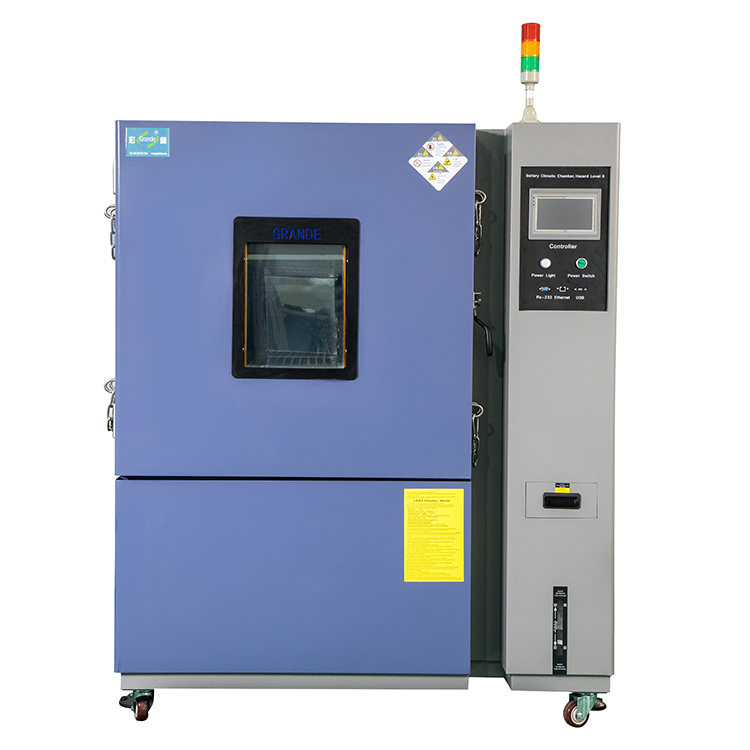

Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
  • Programmable Temperature and Humidity Test Chamber
Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber	Programmable Temperature and Humidity Test Chamber

Programmable Temperature and Humidity Test Chamber

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material.

Click Video Programmable Temperature and Humidity Test Chambers

Click Video About GRANDE


Product Details

Programmable Temperature and Humidity Test Chambers

Temperature and Humidity Test Chambers provides an economical and space-saving solution for a variety of testing requirements. It can simulate different climatic conditions, such as heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, which defines the performance of material. By testing the product under different climatic conditions to see whether its performance can meet the intended requirements. It is widely applied in the industries of electron, electrical equipment, vehicle, metal, food, chemistry, building materials, luggage, adhesion tape, printing, packaging, and other product components and materials.


The programmer includes a temperature alarm as just one part of Grande's Three-tiered over-temperature protection system. A thermal fuse and a user-set independent limit are also included. In addition, a specimen power terminal allows the user to safely operate powered equipment inside or with the chamber.


Corresponding Standard of the Temperature and Humidity Test Chamber:

1.GB11158 high-temperature testing condition

2.GB10589-89 low-temperature testing condition

3.GB10592-89 high-low-temperature testing condition

4.GB/T10586-89 humidity testing condition

5.GB/T2423.1-2001 low-temperature testing condition

6.GB/T2423.2-2001 high-temperature testing condition

7.GB/T2423.3-93 humidity testing condition

8.GB/T2423.4-93 alternating temperature testing machine

9.GB/T2423.22-2001 temperature testing method

10.IEC60068-2-1.1990 low-temperature testing method

11.IEC60068-2-2.1974 high-temperature testing method

12.GJB150.3 high-temperature test

13.GJB150.4 low-temperture test

14.GJB150.9 humidity test


Grande Expertise in Humidity Control

Controlling humidity in a small environmental chamber can be especially challenging. Grande expertise in humidity control brings intelligent design that is carefully integrated into the Criterion chambers. The humidity subsystems are designed for reliability, convenience, and performance:

· An external steam generator allows expanded range and is easy to maintain.

· A separate de-humidification coil improves low humidity control and range.

· Wet-bulb humidity sensor is a “primary measurement method” for accuracy. It is also economical, easy to maintain, and reliable because it has no risk of failure due to over-saturation. (Read why analog is preferred over digital.)

· Direct water supply connection is standard, with options for water filtering and recirculating water tank.


Features

· High performance and quiet operation (65 dBa)

· Space-saving footprint, designed for flush installation to wall

· Stainless steel exterior

· Full thermal break around doorframe

· One 50mm (2") diameter cable port on left, with flexible silicone plug

· Three levels of overheat protection, plus overcool protection

· Easy lift-off service panels, electrical access on left

· Detachable eight-foot power cord with plug

· Direct water supply connection for continuous operation (supply tank optional)

· Over-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.


Touch-screen programmer/controller with Ethernet

· Watlow F4T with touch-screen and Ethernet port standard

· Save 120 profiles with up to 1200 steps each (ramp, soak, jump, auto-start, end)

· One event relay for external device control, plus specimen power interlock relay for safety

· Grande exclusive options include: Web Controller for full remote access; Chamber Connect software for basic data logging and monitoring. USB,RS-232 and RS-485 ports available, as well.


Technical parameters:

Model NoGTH-080GTH-150GTH-225GTH-408GTH-800GTH-1000
Working room(L)801502254088001000
Inner chamber size(mm)W*H*D400*500*400500*600*500500*750*600600*850*8001000*1000*8001000*1000*1000
Exterior chamber size(mm)W*H*D900*900*1500950*1500*1050950*1650*11501050*1750*13501450*1900*13501450*1900*1550
Packaging volume(CBM)233.54.55.56
G.W.(KGs)300320350400600700
PerformanceTemperature range-80℃,-73℃,-60℃,-40℃,-20℃,0℃,+150℃,+180℃,+200℃

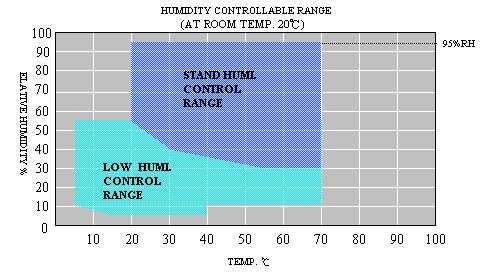

Humidity range20%RH ~98%RH(10%RH ~98%RH or 5%RH ~98%RH)
Temp.&Humi fluctuation±0.2°C, ±0.5%RH
Temp.Humi.Uniformity±1.5°C; ±2.5%RH(RH≤75%),±4%RH(RH>75%) No-load operation,After stead state 30 min.
Temp.humi resolution0.01°C; 0.1%RH
Heating up time°C100       150

Min30   4030   4030   4530   4530   4530   45
Cooling down time°C0   -20  -40  -60  -70

Min25      40        50        70        80
Heating rate≥3°C/min
Cooling rate≥1°C/min
MaterialInner chamber materialSUS#304 stainless steel plate
Exterior chamber materialSUS304 Stainless steel plate+ powder coated
Insulation MaterialPU & Fiberglass wool
SystemAir circulation systemCooling fan
FanSirocco fan
Heating SystemSUS#304 stainless steel high-speed heater
Air flowForced Air Circulation(It enters at bottom and leaves at top)
Humidification systemSurface evaporation system
Refrigeration systemImported compressor,Tecumseh compressor,finned type evaporator,air(Water)-cooling condenser
Refrigerating fluidR23/ R404A USA Honeywell.
CondensationAir(Water)-cooling condenser
Dehumidifying systemADP critical dew point cooling/dehumidifying method
Controlling systemPID Digital electronic indicators+S.S.R.With PID automatic calculation capability
Operation interfaceGrande Expertise in Temperature & Humidity Controller,Chinese-English Shift.
ControllerProgrammable capabilitySave 120 profiles with up to 1200 steps each
Setting rangeTemperature:-100℃+300℃
Reading accuracyTemperature:0.01℃
InputPT100 or T Sensor
ControlPID control
Communication interfaceEquipped with standard communication interface devices USB,RS-232 and RS-485,enable the test chamber to be connected with personal computer(PC),to achieve multi-machine control and management at the same time.Standard: USB external memory port.Optional: RS-232, RS-485, GP-IB, Ethernet
Print functionJapan Yokogawa Temperature Recorder(Optional accessories)
AuxiliaryLimit Alarm,Self Diagnosis,Alarm Display(Failure Cause),Timing device(Automatic Switch)
AccessoriesMulti-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice


Optional accessories

1,Low Humidity and Dehumidifying sytstem.

2,Inner glass door with manual operating ports.

3,Temp./Humi.Recorder.

4,Pure water treatment device

5,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

6,Liquid nitrogen(LN2)/Liquid Carbon Dioxide(LCO2) fast cooling-down system.

7,Temperature change rate on average without load(Linear heating up and cooling down);5℃/min,10℃/min,15℃/min,

15℃/min,20℃/min,25℃/min,RAMP function.


1. Do you offer after-sales service? How can I ask for that? And how about the warranty?

Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the FREE maintenance, while considering of sea transportation, we can extend 2 months for our customers.

If your machine doesn’t work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if neccesary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.

2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.


Programmable Temperature and Humidity Test Chamber

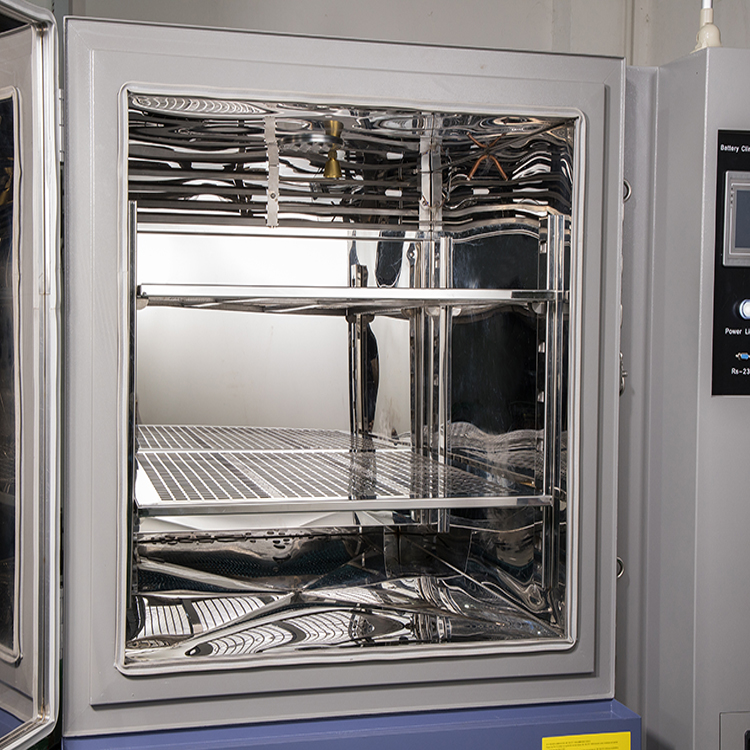

Testing Area Testing Area

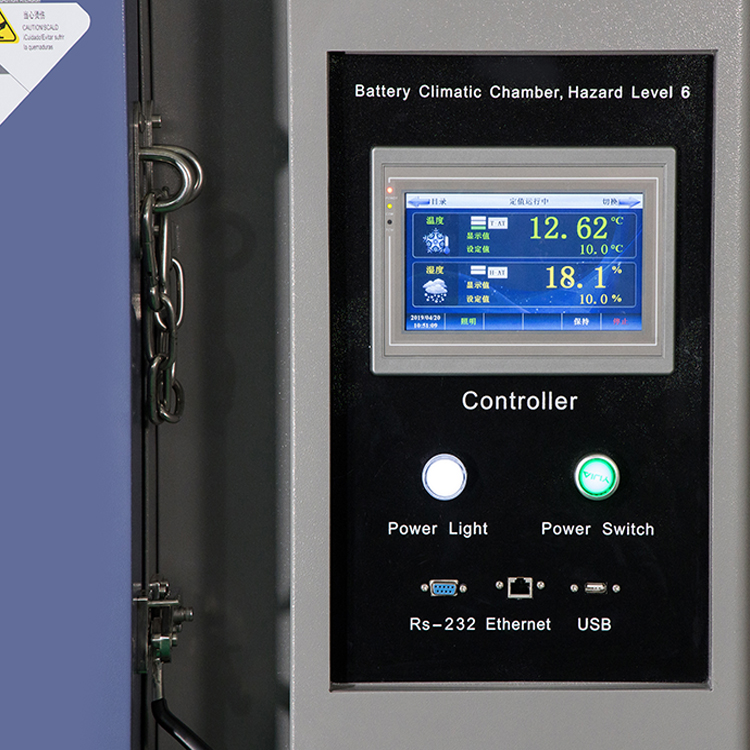

Controller Controller
Circuit Circuit
Control system Control system
Refrigeration Area Refrigeration Area
Condenser Condenser
Water Tank Water Tank
Humidification system Humidification system
