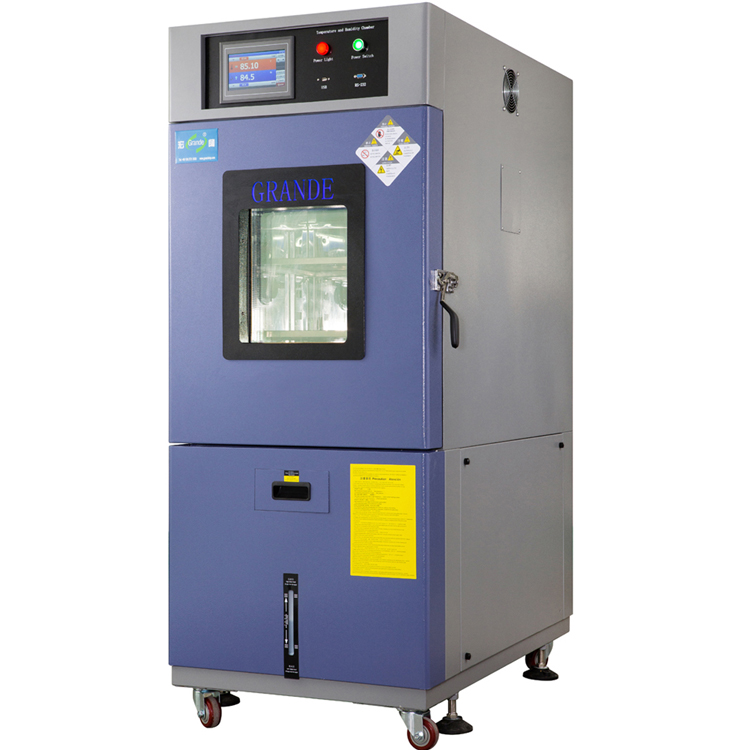

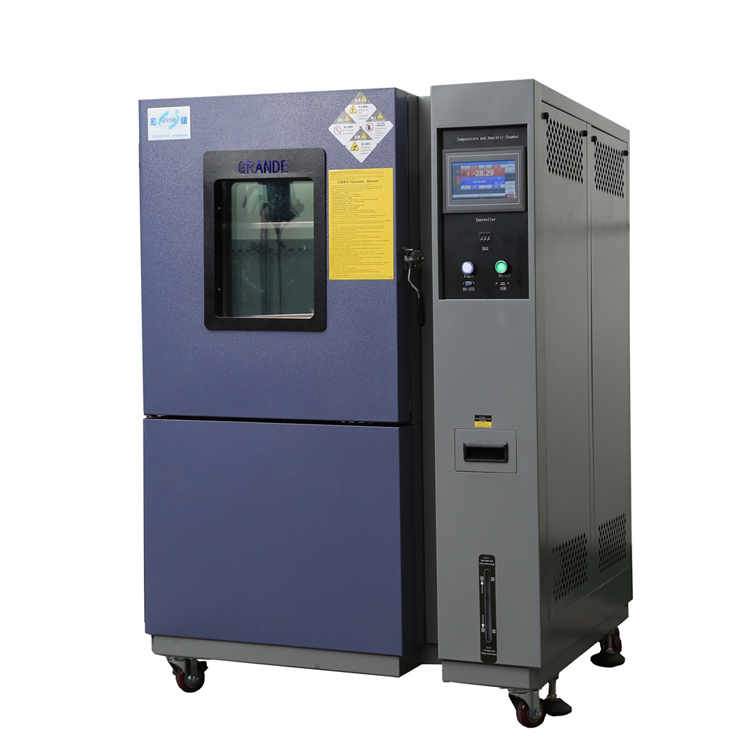

Temperature Humidity Cabinet/Thermostatic and Humidistatic Air Conditioning Unit
  • Temperature Humidity Cabinet/Thermostatic and Humidistatic Air Conditioning Unit
Temperature Humidity Cabinet/Thermostatic and Humidistatic Air Conditioning Unit

Temperature Humidity Cabinet/Thermostatic and Humidistatic Air Conditioning Unit

Environmental control cabinet is used to control the temperature and humidity of a room/place. It is widely applied to computer room, bars, hotels, labratory/experimental room, etc.

Product Details

Environmental control cabinet is used to control the temperature and humidity of a room/place. It is widely applied to computer room, bars, hotels, labratory/experimental room, etc.


Features:

1 Multi-wing centrifugal air supply way, vertical diffusion horzontal heat exchange system.

2 It is composed of heating sytem, cooling system, humidification system, dehumidification system.

3 Micro-computer controlled.

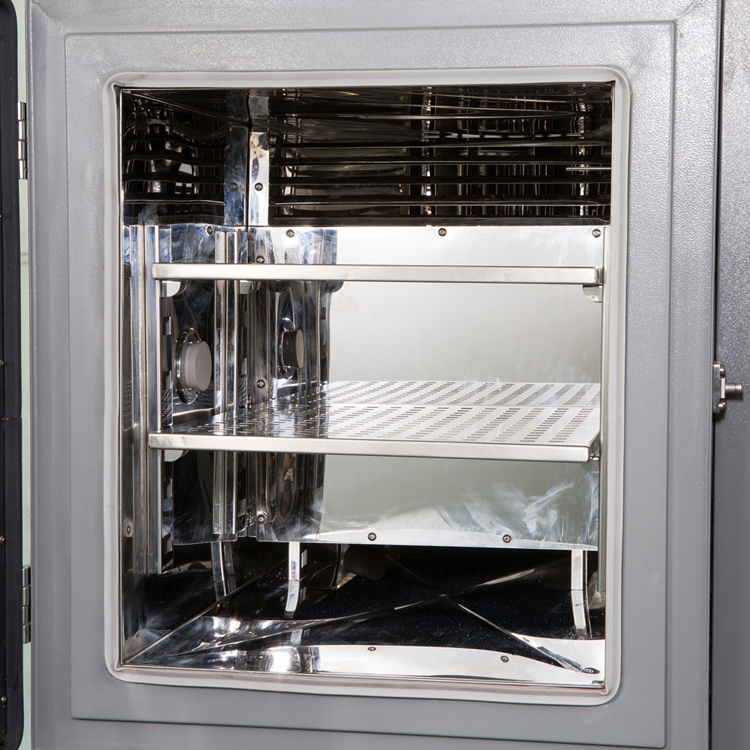

5 SUS#304 stainless steel plate inner chamber, stainless steel plate with Powder coated exterial chamber.

6 France imported Tecumseh compresser, environmental-friendly refrigerant (R404A, R23)
7 PU & fiberglass wool insulation is to make the temperature stable.

8 Water-free humidify sensor, do not need to change the gauze


Technical parameters:

Model NoGLTH-030WGLTH-050WGLTH-080WGLTH-0100WGLTH-0150WGLTH-0200WGLTH-0300W
Thermal system9000140002240030000450006000090000
Applicable area(㎡)205080100150200300
Temperature range20℃~26℃
Humidity range45%~60% RH
PerformanceTemp.&Humi fluctuation±2℃;±3.0%RH
Temp.accuracy±2.0℃~±5℃
Humidity accuracy±5%RH
Temp.Humidity cont systemCompressorOriginal Copeland turbo compressor(Germany) or original Tecumseh full-sealing compressor(France)
CoolantR22
FanAxial fan
EvaporatorFin type evaporator
Heating systemSUS#304 stainless steel high-speed heater
Cooling systemImported compressor,Tecumseh compressor(or Bitzer Compressor),finned type evaporator,air(Water)-cooling condenser
Humidifying methodSurface evaporation system
Dehumidifying methodADP dew point dehumification
ControllerDisplay screenProgrammable:OYO or Honeywell touch screen series.RKC series.
ResolutionOYO:Temperature 0.01℃,Humidity 0.1%RH;RKC:Temperature 0. 1℃,Humidity 0.1%RH
Operation modeprogram mode,FIX mode
Control modePID PID control
Signal inputPT100 Platinum resistance PI100 sensors
Safety protection deviceOver-Temp.protection,electric leakage protection,water shortage protection,humidifying system protection,compressor over-voltage+over-load+over-current protection,phase sequence protection.
Power supply220/380(1±10%)V,(50±0.5)HZ
Optional accessoriesTemperature and humidity recorder can record temperature and humidity signal simultaneously.
The technical information will be subjected to change without notice
