Sterilization Oven
  • Sterilization Oven
Sterilization Oven

Sterilization Oven

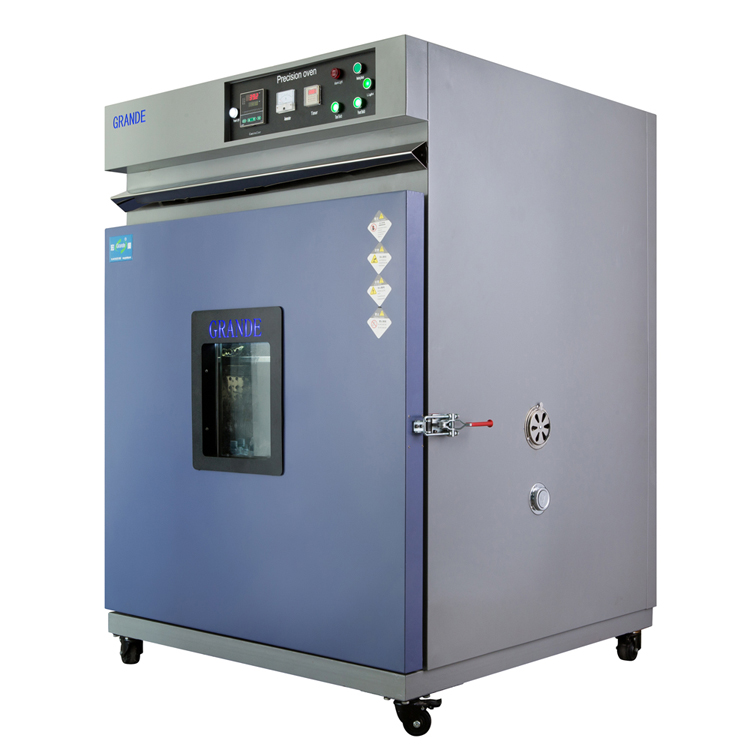

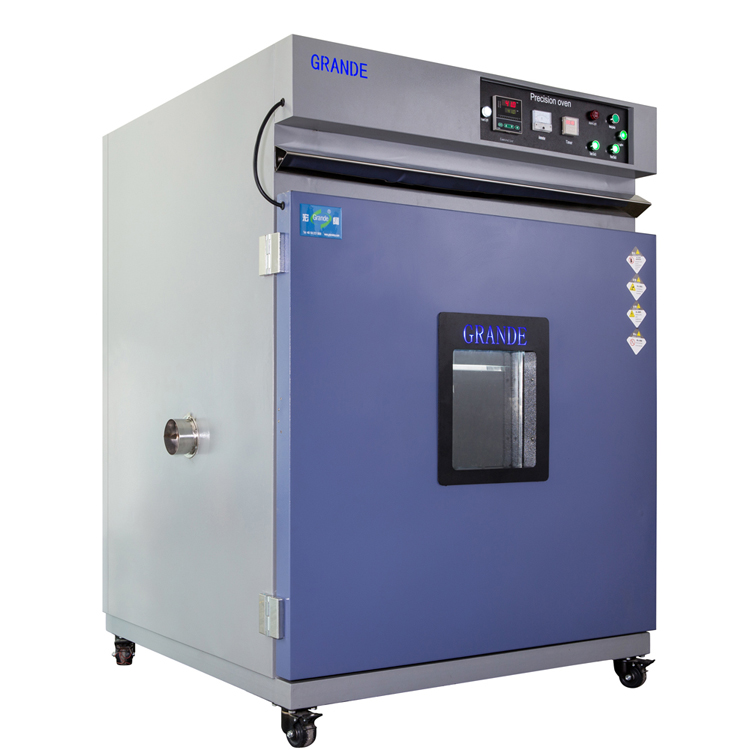

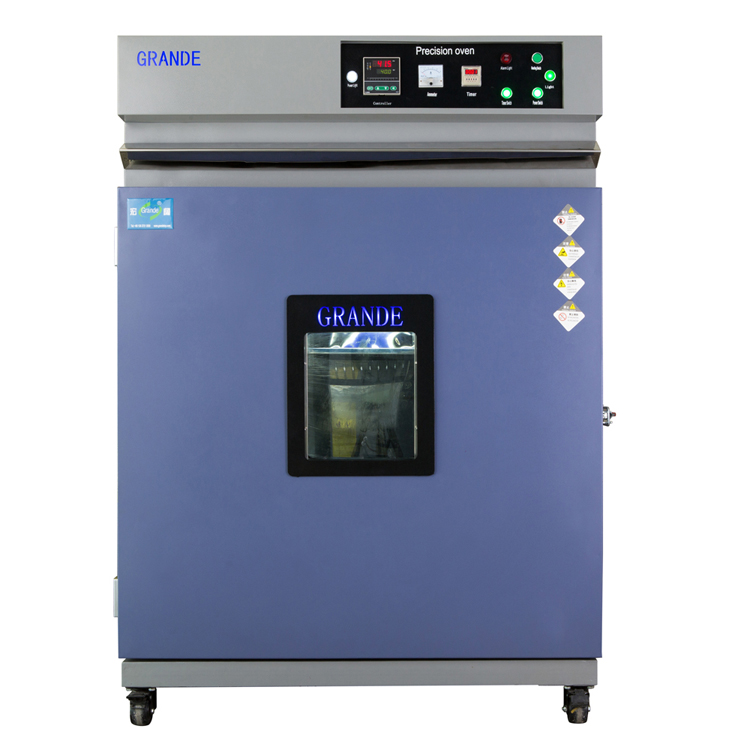

GMH series High Temperature Sterilization Ovens are applicable to the bacteria-killing, pyrogen-removing and drying sterilization of solid objects such as vials, ampoule bottles, aluminum caps and metal or glassware.

Product Details

1. GMH series High Temperature Sterilization Ovens are applicable to the bacteria-killing, pyrogen-removing and drying sterilization of solid objects such as vials, ampoule bottles, aluminum caps and metal or glassware.



2. GMH series High Temperature Sterilization Ovens are the products of the latest generation which have been developed in recent years under GMP requirements and it has been used in hundreds of pharmaceutical factories in overseas market. The machine’s control system is advanced and sensitive, equipped with Siemens Touch Screen, Siemens PLC, Yokogawa Recording Meter, Dwyer Differential Pressure Meters, Automatic Drain Valve and some other key components are brands from Japan, United States and Europe. So that we can guarantee the products quality.



3. GMH  series machines are available for users to choice in terms of configuration and size. Moreover, we also accept customized machines based on user’s usage, site layout and production capacity requirements etc.



4. Operation Principle: Place the trays, bottles or trolley fully loaded with the materials into the chamber of oven and start PLC programmable control system. Then, the blower for internal circulation is running and heating starts, meanwhile the butterfly valve opens and the temperature of the oven chamber rises rapidly. With the blower for internal circulation, hot and dry air enters into the oven chamber through the high-temperature resistant HEPA filters. Under the role of micro-porous regulation, an evenly-distributed air is formed for transmission into the oven chamber. The dry air absorbs the moisture remaining on the surfaces of materials for its entrance into the heating channel, resulting in evaporation and outward expulsion. The dry air flows in directional circulation simultaneous intermittent supplementation of fresh filtered air, the inside chamber of oven exhibits the state of micro-positive pressure. With the termination of the constant temperature, the control of processing comes to the end. When the air delivering or forced cooling (with water) starts, the automatic butterfly valve will close, and then it gives sound and light alarm to open the door and remove the materials or bottles.


Technical Parameters:


Model No.GMH-225GMH-640HMH-1200GMH-1800
Working chamber dimension(WxDxH) mm   600*500*750800*800*10001000*1000*12001000*1200*1500
Outside dimension(WxDxH) mm1700*850*17501850*1200*21502100*1350*23802100*1550*2650
Heating Power (KW)9152228
Circulation Fan Power (KW)0.752.203.004.00
Supplementary Fan Power (KW)0.180.180.250.25
Exhaust Fan Power (KW)0.180.250.370.37
Designed Temp. Range (℃)Room Temp~300℃Room Temp~300℃Room Temp~300℃Room Temp~300℃
Working Temp. Range (℃)Room Temp~250℃Room Temp~250℃Room Temp~250℃Room Temp~250℃
Circulation Fan Air Volume(M3/h)3500460055006300
Empty Equalized Heat distribution±3℃±3℃±3℃±3℃


This series of tunnel sterilization oven box is a new type of high-effiency oven which is combined domestic advanced technology with users’ experience .It has advantages of compact structure, beautiful shape.And the inwall and transmission chain of oven are all made of high quality stainless steel 1Cr18Ni9Ti.It uses heating method of quartz tube or gas according to users’ requirements.And it is widely used to continuous drying sterilization of west spray bottles, ampoules, cosmetic bottles, medicine bottles, glass products for pharmaceutical industries and the traditional Chinese medicine.What’s more,it is equipped with clean workplace, high production efficiency.


Technical parameters:


TypeHeating power(kw)Temperature°CSize(M)Tuunel widthSpeedCapacityweight
GMH-D3M1850-3503*0.75*1.60.380.1-15-15500
GMH-D4M1850-3504*0.75*1.60.380.1-15-20700
GMH-D5M2450-3505*0.75*1.60.380.1-110-25900
GMH-D6M3050-3506*0.75*1.60.380.1-115-351100
