Material Test/Cure Chambers/Standard Curing Chamber For Concrete

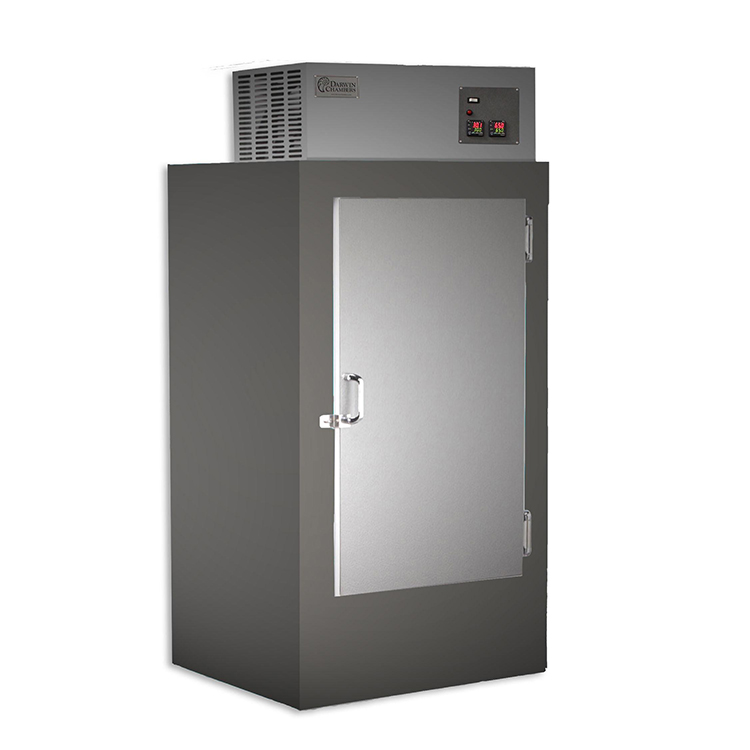

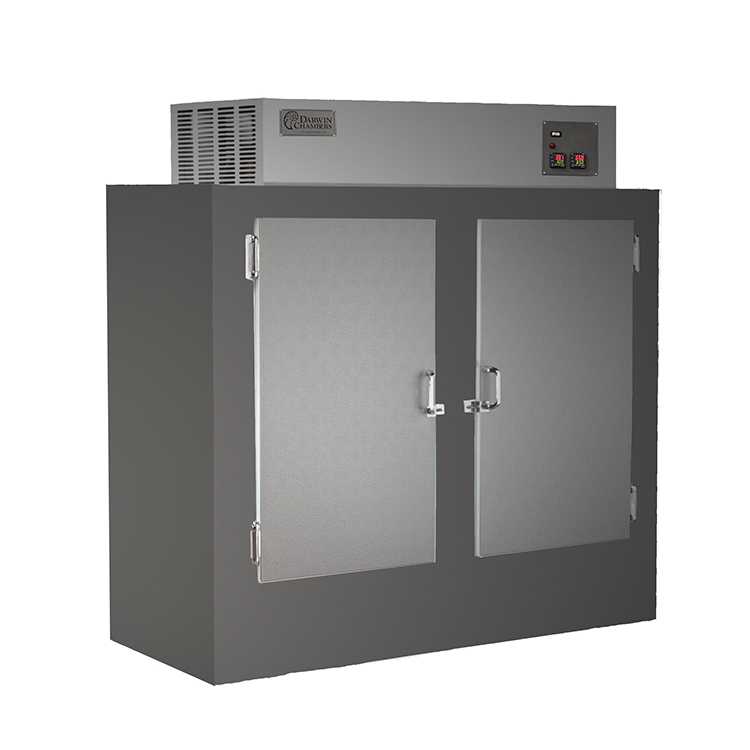

Available in a variety of sizes, the Grande GTH-B Series Material Test/Cure Chambers are ideal for the rigors of precision temperature and humidity control in concrete, asphalt, and related industries. Unlike the vast majority of “testing” apparatus available to control temperature / humidity for engineering demands, these chambers provide reliable operation, durable construction and accurate results. The GTH-B Series offers serious performance to engineers and researchers looking for serious results.

Product Details

Summary

Available in a variety of sizes, the Grande GTH-B Series Material Test/Cure Chambers are ideal for the rigors of precision temperature and humidity control in concrete, asphalt, and related industries. Unlike the vast majority of “testing” apparatus available to control temperature / humidity for engineering demands, these chambers provide reliable operation, durable construction and accurate results. The GTH-B Series offers serious performance to engineers and researchers looking for serious results.


To set the GTH-B Series apart from typical “environmental chambers” or “home built units,” we have incorporated a number of features to produce the best chamber to meet ASTM, ACI, AASHTO, and other standards.


Cement Concrete Standard Temperature and Humidity Curing Box

This instrument is a laboratory test of cement in a static body of 20 ℃ ± 1 ℃ temperature, water conservation equipment, through automatic control, electronic digital display on the tank water circulating cooling, heating, achieve the temperature requirements. Set in the sink plus a number of tanks, put cement test body mass, so as to achieve the requirements of their trials.



Features

STANDARD FEATURES

Galvanized Steel Construction

Two Part Polyurethane, Factory Applied Liner for Exceptional Durability

Industrial P.I.D Controls

Robust Refrigeration

Epoxy Coated Cooling Coils

High accuracy Platinum RTD Sensor

Waterproof Interior Fan Motors

Built-in Drain

Corrosion Resistant / Proof Shelving Options

2 1/2″ Minimum Foamed In Placed Polyurethane Insulation

Standard Alarms and Cut-Outs

Standard Ramp / Soak Programming

Exceptional Sample Storage Weight Capability

Unmatched Temperature Control and Uniformity

Conformity with ASTM Standards

Non-Proprietary Controls

Ongoing Sustainability

Pre-Tested and Pre-Charged Refrigeration Systems

Remote Alarm Dry Contacts

Lockable


OPTIONAL FEATURES

Back-up Control / Conditioning

Stainless Steel / Special Surfaces

Ethernet / Remote Monitoring / Alarming

Humidification with UV Disinfection

Desiccant Dehumidification with UV Disinfection

Simple Redundancy Options

Multi-Point Digital Recording

Water-Cooled Or Air-Cooled Condensers

Custom Lighting Systems

Custom Shelving

Freeze / Thaw Operation/li>

Glass Doors

Available Service Agreements

Calibration / Validation / Maintenance Services

Touchscreen Control Interface



THE GRANDE ADVANTAGE

All installed instrumentation is calibrated to NIST traceable standards and provided with a calibration form. In-house, factory calibrations are performed using state-of-the-art equipment with great accuracies. These reports are three-point verifications, traceable calibration documents.



Techniacla Parameters:

1. Inner size :1450x580x1350mm
2. Control Temperaturer: 20℃±1℃
3. Control humidity:≥90%(Adjust)
4. Refrigeration power:145Wx2
5.Net Wiehgt:280Kg

6.Can be Place Mold Amount:150x150x150mm Cube Molds 150PCS


Technical parameters:

Model NoGTH-420BGTH-650BGTH-1100B
Working room(L)4206501100
Inner chamber size(mm)W*H*D 700*550*1100920*650*11001450*580*1350
Exterior chamber size(mm)W*H*D900*1000*13001120*1100*13001650*1200*1550
Packaging volume(CBM)4.55.56
G.W.(KGs)150200250
Capacity of the Concrete150*150*150mm,30pcs150*150*150mm,45pcs150*150*150mm,150pcs
Temperature range0—50℃ adjustable
Humidity rangeRH 20-98%
Temp.&Humi fluctuation±1°C, ±1%RH
Compressor power(W)165175145*2
Heater power(W)6006001000
Humidifier power(W)151545
AccessoriesMulti-layer vacuum glass observation window,Cable port(50mm),Controlling status indicator lamp,Chamber light,Specimen loading shelf(2pcs,position adjustable),Guaze 5pcs,Operation manual 1 set.
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power supplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
he technical information will be subjected to change without notice
