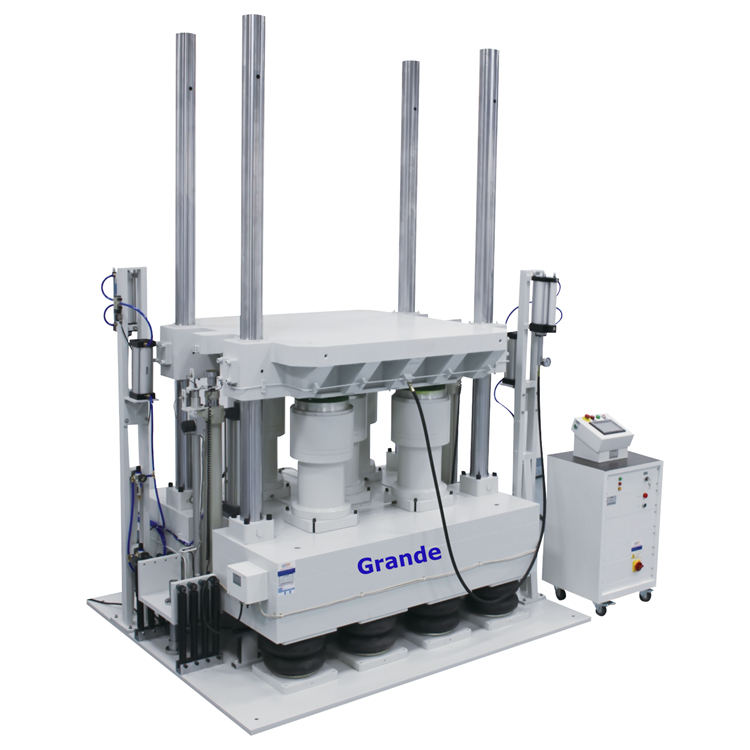

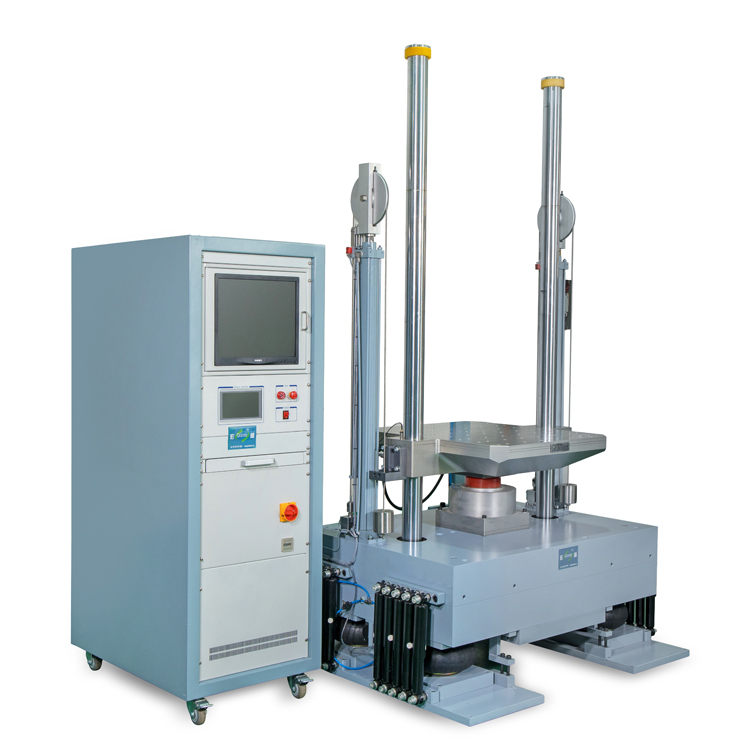

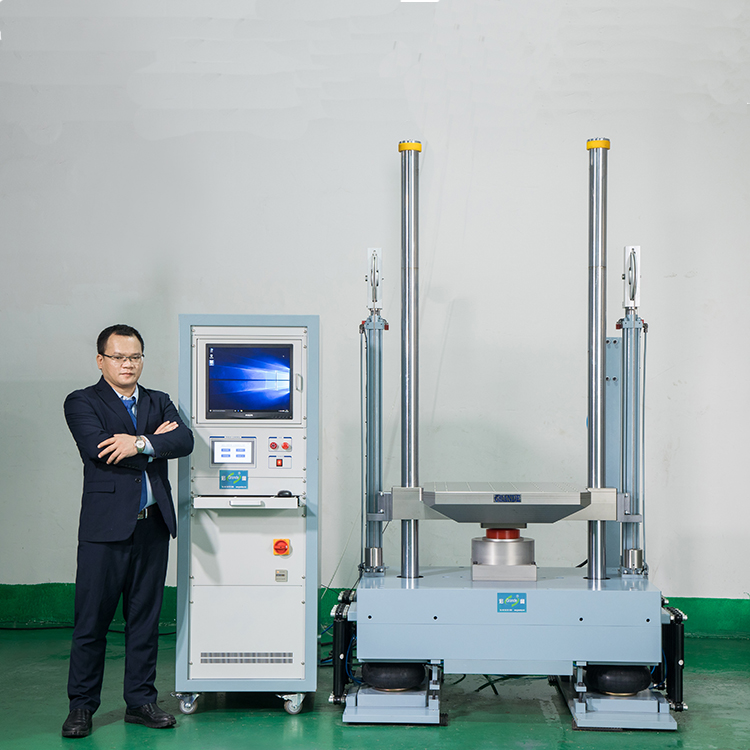

Shock Tester
  • Shock Tester
  • Shock Tester
  • Shock Tester
  • Shock Tester
  • Shock Tester
Shock TesterShock TesterShock TesterShock TesterShock Tester

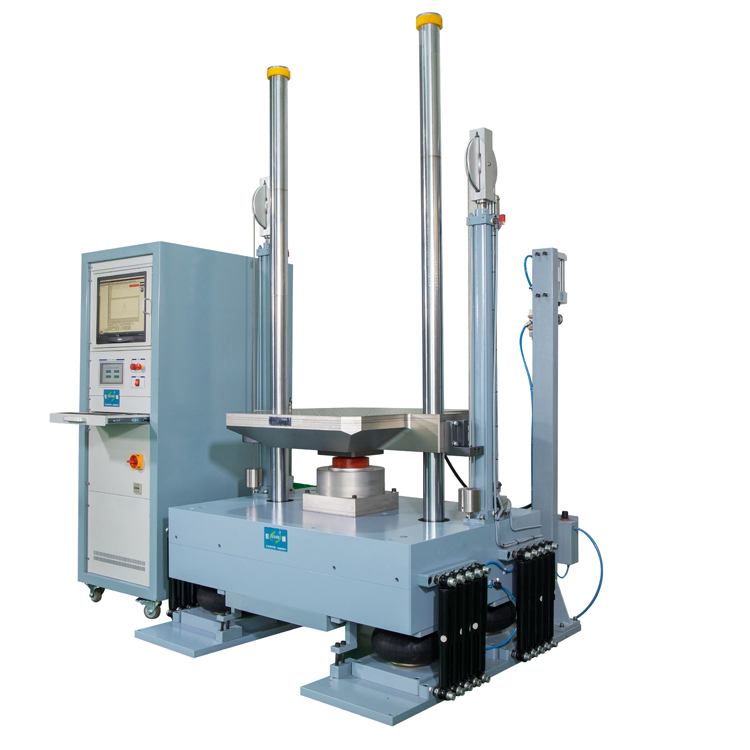

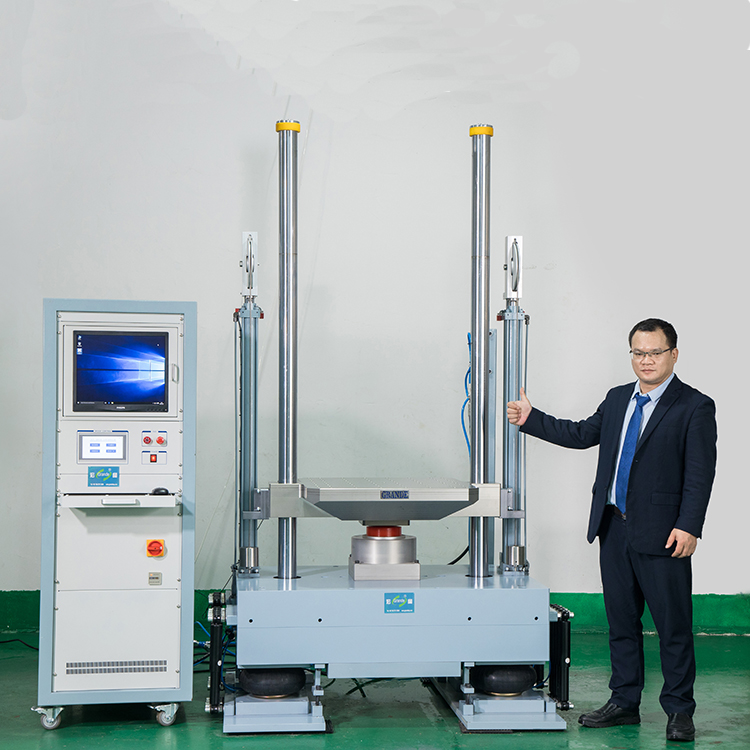

Shock Tester

Shock Tester

Products are inevitably affected by impact,bump,free fall,tumbling,etc during productio,transportation,loading and unloading as well as during the use of the products. All of these are transient excitation in the object,causing the object to produce mechanical characteristics of high speed,acceleration,strain rate.It is completely different from objects in static load which cause problem to the object in terms of structural strength and stability and sometimes the object may fail. Therefore,it is necessary to study the effect of impact and reproduce the shock environment,to assess the strength and performance of the object under shock environment.


Product Details

The Application of Shock Test

Shock test is used to accurately measure the product fragility and evaluate the protective ability of product packaging. Regardless whether you want to do a boundary assessment on complete product breakage. Industrial shock piles or company’s internal standards, we can provide the most advanced shock test system to meet your application requirements.

Suitable shock test for aviation, aerospace, marine, military, consumer electronics, automobiles, home appliances and display devices.

By selecting different waveform generator, can perform: half sinusoidal wave, trapezoidal wave.

■Features

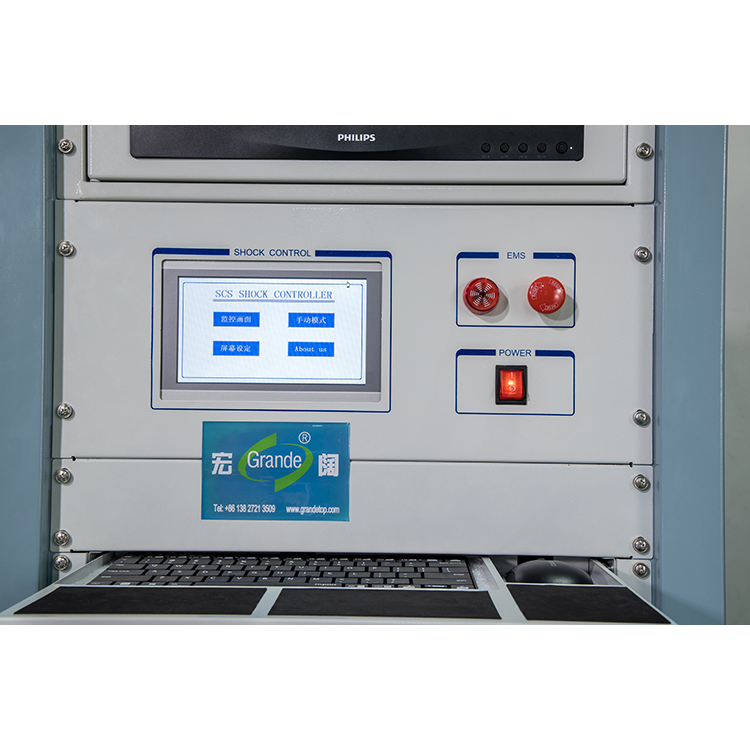

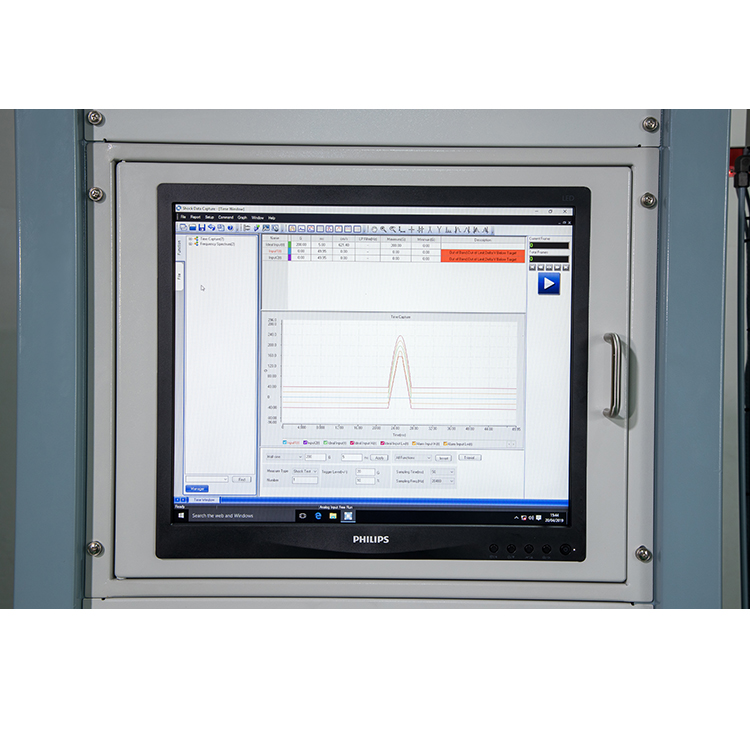

●Convenient touch screen operation;

●Complete safety protection system;

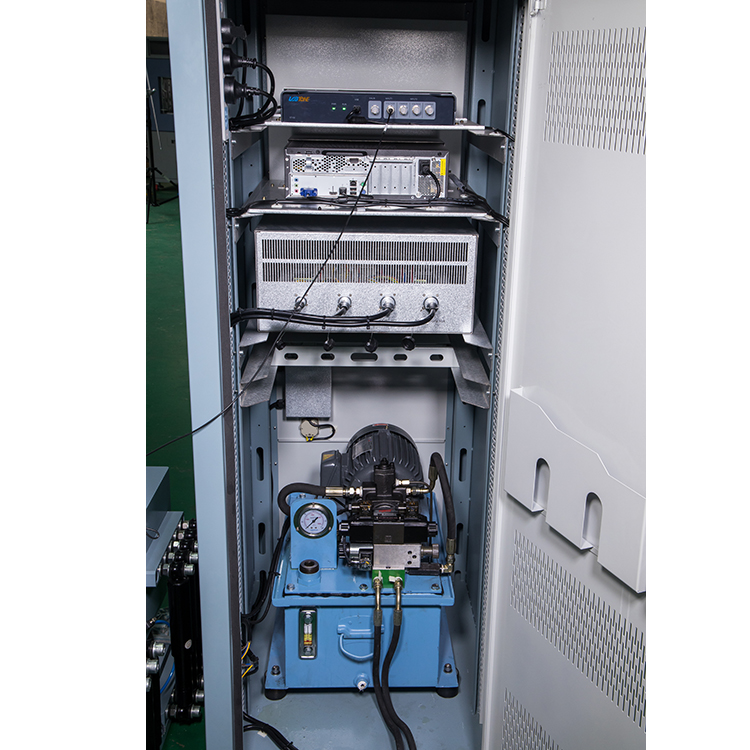

●Utilize pneumohydraulic booster and braking system to prevent multiple impact;

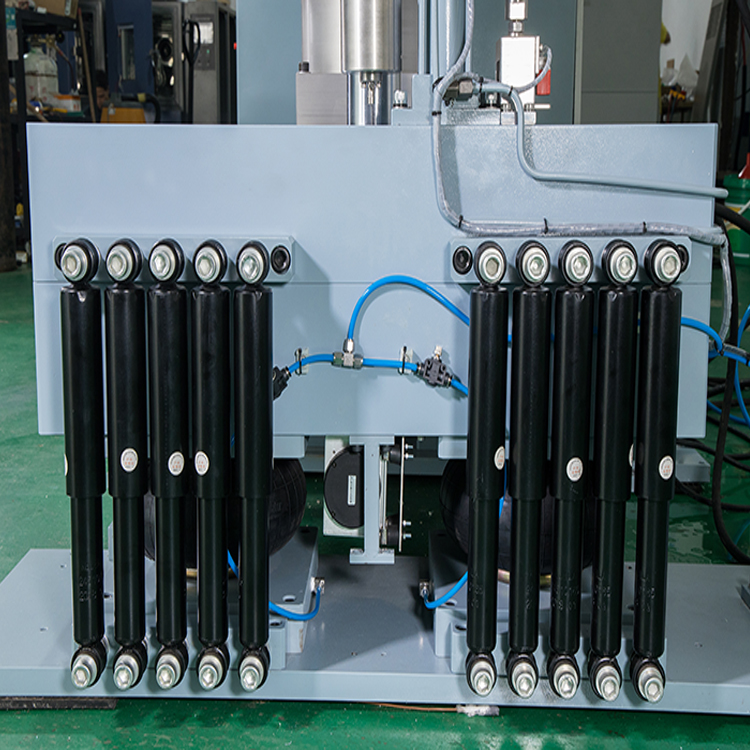

●With air spring shock absorber and hydraulic shock damping mechanism, there will be on influence of impact on surrounding and no foundation requirement.

Technical Parameters:

ModelGSKT10GSKT25GSKT30GSKT50GSKT100GSKT200GSKT300GSKT600GSKT1000GSKT1500GSKT2000

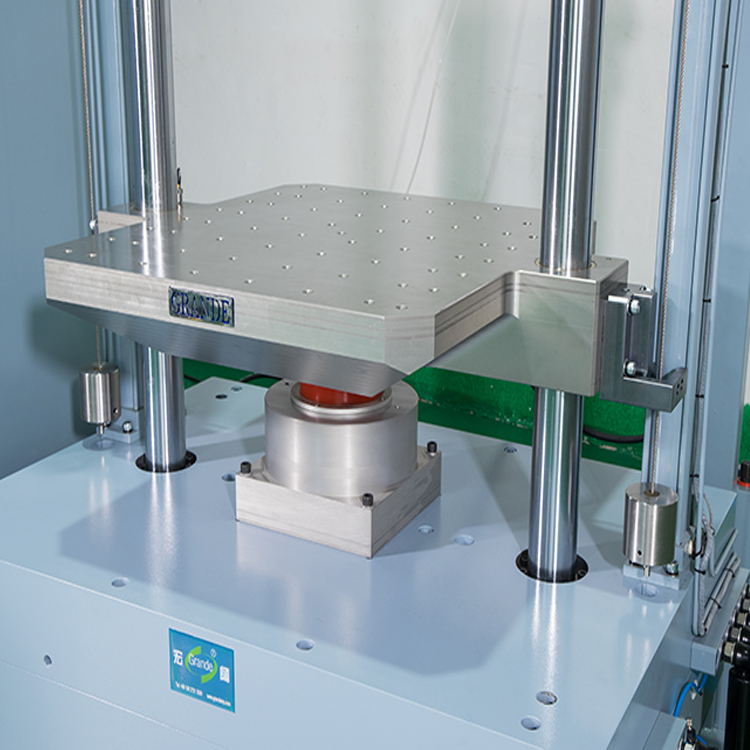

Table Size(cm)35*3550*5040×4050×6070×80100×100120×120150×150200×200200×200200×200
Max. Specimen Weight(kg)10253050100200300600100015002000
Max. Acceleration(G)Half Sine2000100060060060050050030030030-30030-300

Saw-tooth(Option)--100100100100100100100100100

Square(Option)---150150150100100100100100
Pulse duration(ms)Half Sine20~0.520~0.530~0.530~130~130~220~320~320~320~320~3

Saw-tooth(Option)--18~618~618~618~618~618~618~618~618~6

Square(Option)---30~630~630~630~630~630~630~630~6
Machine dimension(cm)100*100*200110*110*210120×105×245120×105×245130×120×260150×130×260200×160×300230×180×310250×250×310250×250×310250×250×310

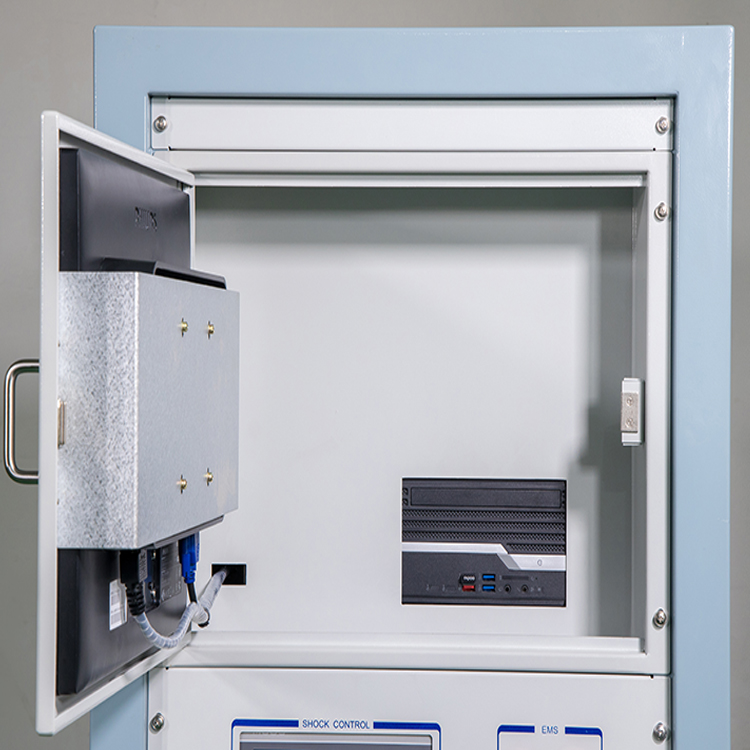

Controller cabinet dimensionW55×D50×H80W55×D50×H80
Machine weight(Kg)150017001900200032004200850015500215002150021500
Power supplyAC 1Ψ 110V;AC 1Ψ 220V 60/50Hz 0.5~0.8MPa3ФAC380V 50/60Hz Compressed air 0.5~0.8MPa
