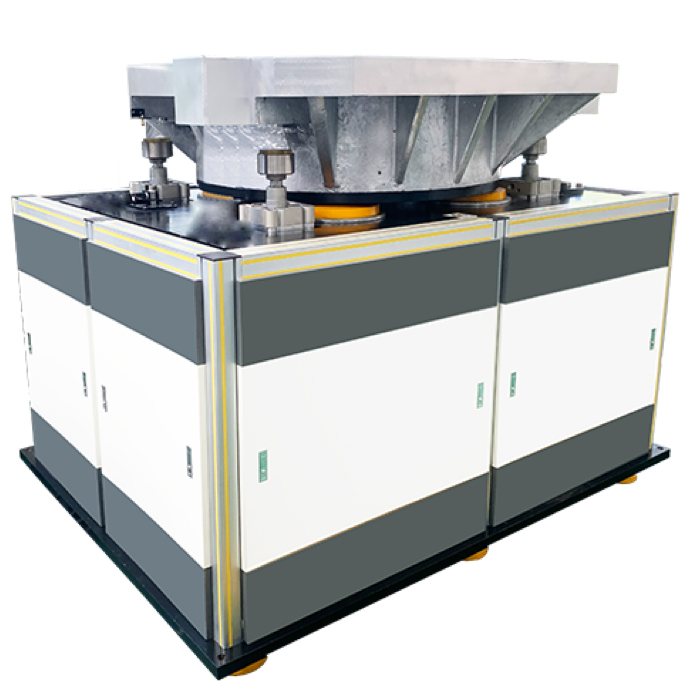

Pneumatic Bump Tester

Pneumatic Bump Tester replaces the traditional mechanical cam-type crash bench and is suitable for repeated impacts on electronic components, equipment and other electrical and electronic products during transportation or working.

Inquire Now None

Product Details

Features

Fully pneumatic driven, clean and environmentally friendly, good repeatability and high reliability.

Control the frequency of collisions by adjusting the gas pressure to achieve continuous high-frequency collisions.

Test time and collision frequency can be set arbitrarily, and it will stop automatically after the test is completed.

Technical Parameters:

Model	PBT-50	PBT-100	PBT-200	PBT-500	PBT-800	PBT-1000	PBT-1500	PBT-2000	PBT-3000
Max Loading (kg)	50	100	200	500	800	1000	1500	2000	3000
Table Size(mm)	500*500	600*600	800*800	1000*1000	1500*1500	1800*1800	2000*2000	2500*2000	2500*2500
Shock Waveform	Half sine waveform
Peak Acceleration(G)	3~150	3~120	3~100	3~80	4~60	5~50	5~50	5~40	5~30
Pulse duration(ms)	2~30			3~30	5~30	6~30	6~30	8~30	11~30
Bump Rate (Times/Min)	1~120			1~100		1~80	1~60	1~30	1~20
Overall Dimension (mm)	1050×1050×1300	1090×1090×1300	1050×1050×1280	1300×1300×1650	1500×1500×1600	1800×1800×1600	2000×2000×1850	2500×2000×1950	2500×2500×2100
Weight (kg)	1500	1980	2000	3500	2500	7500	8500	9500	11000
Environment	Temperature range 0～40℃, Humidity ≤ 80% (non-condensing)
Power	1-phase AC220V±10% 50Hz
Air source	≤0.8MPa
Installation Condition	Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment
Standards	MIL-STD-810IEC68-2-29
