Pneumatic Bidirectional Vertical Shock Test System

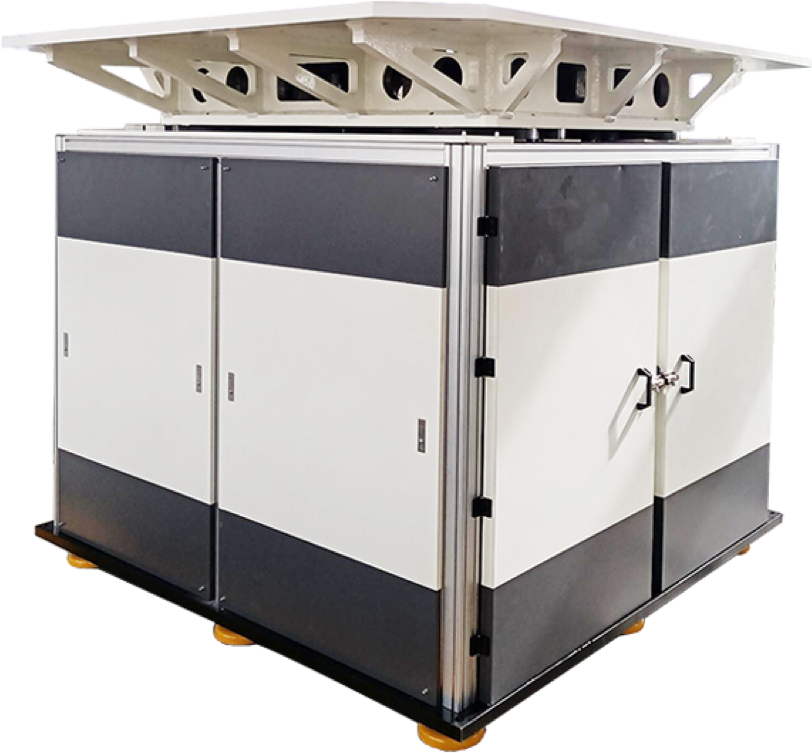

Pneumatic Bidirectional Vertical Shock Test System is the novel designed and developed for large specimens that cannot or are not easy to turn over, especially adopt for battery testing. It can complete vertical upward and downward shock test in one test stand without moving the UUT.

Inquire Now None

Product Details

Features

Pneumatic drive, no pollution to the environment

One machine with multiple functions, one clamping, to complete the upward and downward shock and bump tests, with high efficiency

Built-in pneumatic brake mechanism, safe and reliable

One-machine management for control and measurement, convenient operationAir springs and dampers are used to reduce vibration, and the installation is free of foundation

Technical Parameters:

Model		BVST-50	BVST-100	BVST-200		BVST-500		BVST-800	BVST-1000	BVST-2000
Table Size(mm)		500*500	600*600	800*800		1000*1000		1200*1200	1500*1500	2000*2000
Max Loading (kg)		50	100	200		500		800	1000	2000
Shock Direction		Downward
Peak/Max. Acceleration(G)	Half-Sine	10~750	10~600	10~450		10~300		10~250	10~200	10~150
	Post-Peak Sawtooth	10~200	10~200	10~100		10~100		10~100	10~100	10~100
	Trapezoid	15~200	15~200	15~100		15~100		15~60	15~60	15~50
Pulse duration(ms)	Half-Sine	1.5~60	2~60	2.5~60		4~60		4.5~60	5~60	6~60
	Post-Peak Sawtooth	3~18				6~18
	Trapezoid	3~18	3~18		6~18
Shock Direction		Downward
ShockWave		Half Sine Waveform
Bump Peak Acceleration (g)		15~350	15~300		15~200	15~150	15~100		15~100	15~75
Bump Pulse Duration(ms)		3.5~60	3.5~60		4~60	4.5~60	5.5~60		5.5~60	6~60
Overall Dimension (mm)		1250×1250×1600	1250×1250×1600	1300×1300×1700		1350×13540×1750		1550×1550×1750	1650×1650×1850	2000×2000×1950
Weight (kg)		3000	3200	3500		4100		5000	6000	8000
Environment		Temperature range 0～40℃, Humidity ≤ 80% (non-condensing)
Power		1-phase AC220V±10% 50Hz
Air source		≤1MPa
Installation Condition		Foundation-free, the cement floor shall be leveled and the working distance of 800 ~ 1000mm shall be reserved around the equipment
Standards		IEC68-2-27 MIL-STD-202 MIL-STD-750 MIL-STD-810 MIL-STD-883 UN38.3 IEC62281 IEC62133-2 UL2054 IEEE1625 SAEJ2929 IEC62660-2 ISO12405-3 UL2580
