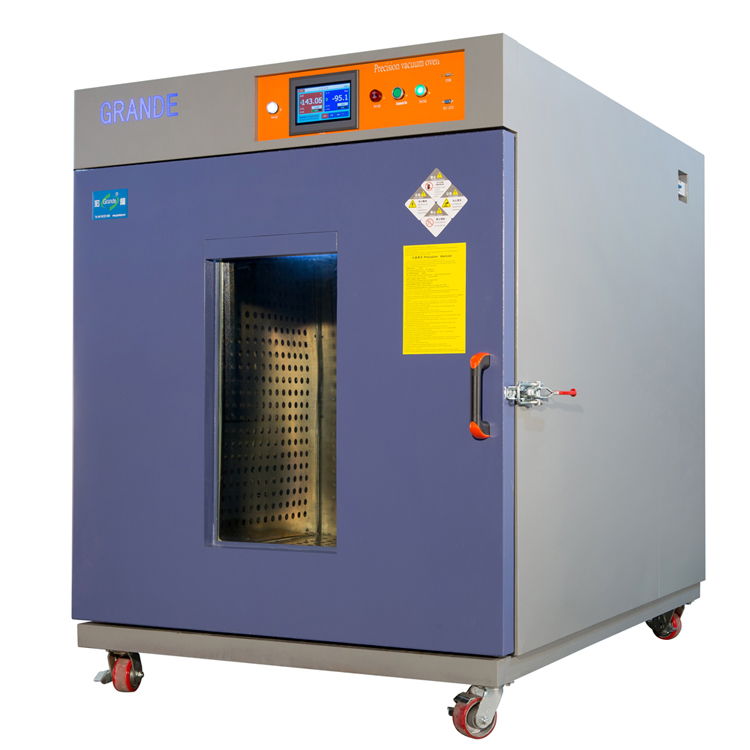

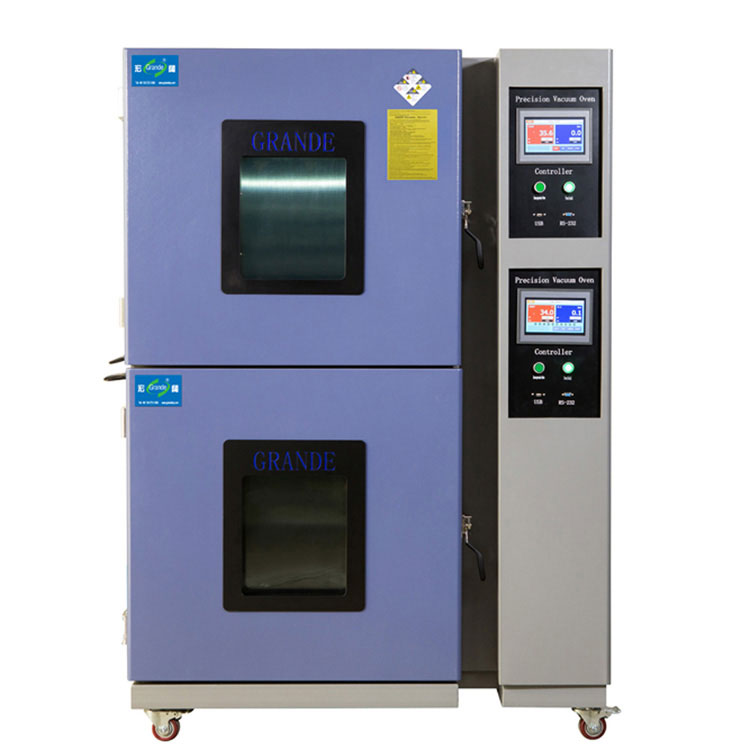

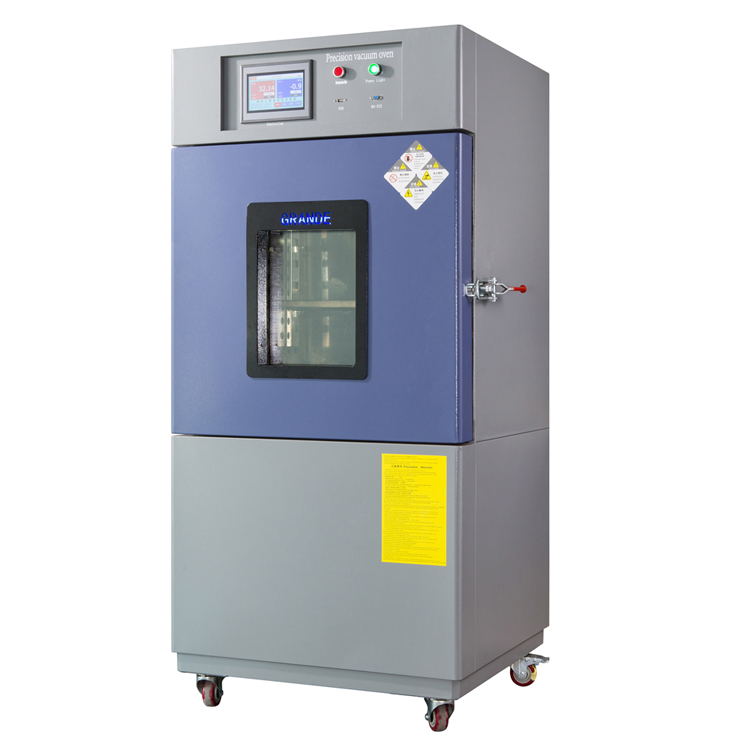

Water Ring Vacuum Drying Oven
  • Water Ring Vacuum Drying Oven
  • Water Ring Vacuum Drying Oven
  • Water Ring Vacuum Drying Oven
  • Water Ring Vacuum Drying Oven
  • Water Ring Vacuum Drying Oven
Water Ring Vacuum Drying OvenWater Ring Vacuum Drying OvenWater Ring Vacuum Drying OvenWater Ring Vacuum Drying OvenWater Ring Vacuum Drying Oven

Water Ring Vacuum Drying Oven

Liquid Water Ring Vacuum Drying Oven
Vacuum Limit:Atmospheric pressure~3KPa

Indoor temperature +10℃~50℃,100℃,150℃,200℃,250℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,2500℃,3000℃,Customization is available

Product Details

Attractive appearance,widely use,Safe and reliable

Precision vacuum oven is Widely used in biochemicalm,chemical and pharmaceutical,health care,agricultural research,environmental protection and other research applications for power drying and roasting,as well as disinfection and sterilization of glass containers used.Particularly suitable for drying heat-sensitive,easily decomposed,and the complex composition of easily oxidized material items for fast and efficient drying.

Especially designed for drying heat-sensitive, easy-to-decompose and easy-to-oxidize substances, it is able to inject inert gas internally, in particular, it can even dry the substances with complex ingredients fast. It is widely used in electronic and chemical industries.

High quality materials,Good sealed,Convenient and Practical

Material of outer case The housing is processed and formed with high-quality (t=1.2mm) A3 color plates through CNC machine with surface sprayed with plastics, looking smoother and more artistic;Material of inner case Imported high-grade stainless steel (SUS304).

Special structure,Durable and operate easily

The tension of closed chamber door can be adjusted, and integral-formed silicone rubber seal can ensure high vacuum degree inside the chamber.
Door handle: Introduce the door handle without counteraction for easy operation.

High performance,efficiency and speed

Introducing IR Ni-Cr alloy high-speed heating electric heater
Totally independent high-temperature system shall not affect low temperature test, high temperature test and alternating hot and humid test.
The output power of temperature & humidity control shall be calculated by micro computer to achieve electricity use benefits of high precision and high efficiency.

Optional accessories

USB,RS-485 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

Technical parameters:

Model NoGVO-072GVO-100GVO-270GVO-480GVO-600GVO-720GVO-1000
Volume(L)72
2704806007201000
Inner chamber size(mm)W*H*D 450*400*400400*500*500600*750*600800*800*7501000*800*7501000*720*10001000*1000*1000
Exterior chamber size(mm)W*H*D900*1550*550900*1650*8001100*1600*6501200*1700*8401400*1750*8401750*1750*12001750*1750*1500
Temperature rangeRT+10℃~+200℃,300℃,350℃,500℃,600℃,700℃,800℃,900℃,1000℃,1200℃,1400℃,1600℃,1800℃,2000℃,2500℃,3000℃,Customization is available
Vacuum degreeAtmospheric pressure~3KPa
Final VacuumAtmospheric pressure~3KPa
PerformanceTemperature fluctuation±0.5℃
Temperature UniformityAtmospheric pressure:±2℃.-98Kpa Vacuum state:±50℃.(Options:±5℃,±10℃,±15℃,±30℃)
Temperature resolution0.1℃
Heating up timeRT+10℃~250℃<90min(Nonlinear,No load)RT+10℃~400℃<120min(Nonlinear,No load)
MaterialExterior chamber materiaStainless steel plate+ Power Coated
Inner chamber materialSUS#304 stainless steel plate
Insulation MaterialPU& Fiberglass wool
Systemcirculation systemSirocco fan
Heating systemSUS#304 stainless steel high-speed heater
ControllerTouch-screen controller or Omron E5AZ controller+ S.S.R.
Vaccuum systemEquipped with vacuum pump
Other Componentscontrol status indicator lights, loading shelves(2pcs for free)
Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard and Special requirements,OEM/ODM orders.Customization of inner chamber size, temperature&humidity range,etc.
The technical information will be subjected to change without notice
