High Impact Shock Test System

High impact shock test system meets MIL-S-901D standard which covers shock testing requirements for ship board machinery, equipment, systems, and structures, excluding submarine pressure hull penetrations. The purpose of these requirements is to verify the ability of shipboard installations to withstand shock loading which may be incurred during wartime service due to the effects of nuclear or conventional weapons.

Inquire Now None

Product Details

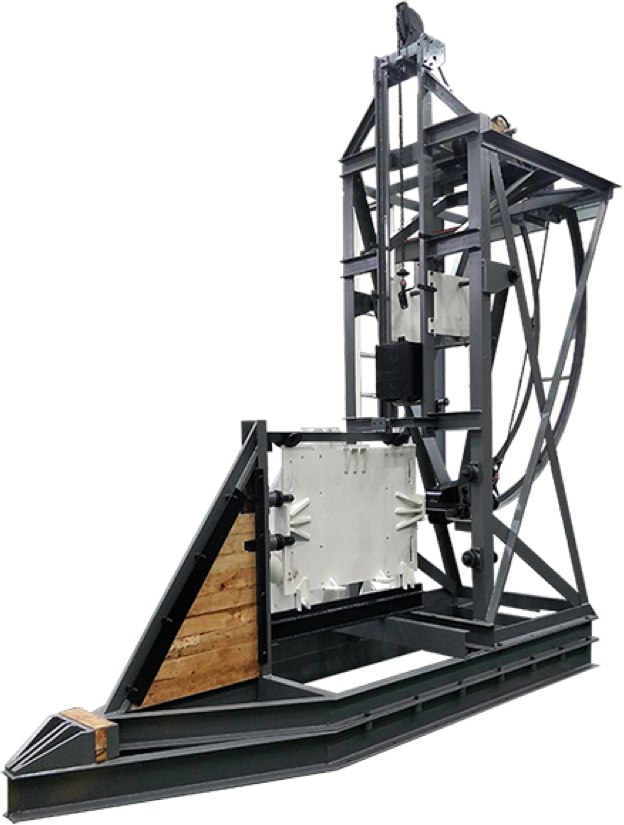

GRANDE provides lightweight & medium weight high impact shock test system in accordance with one of the following test categories, as specified.
Lightweight.

The lightweight test is a test performed on the lightweight shock machine. Weight of the test item including fixture to attach it to the test machine shall be less than 550 pounds.Medium weight.

The medium weight test is a test performed on the medium weight shock machine.Weight of the test item including fixture to attach it to the test machine shall be less than 7,400 pounds.

Technical Parameters

Model	GHIS-200	GHIS-3000
Model	Lightweight	Medium weight
Max Load(kg)	200	3000 (Including fixtures≤3400）
Pendulum Mass (kg)	182	1360
Shock Form	Preset energy automatic completion
Drop Hammer Height (mm)	0~1500	0~1870
Work Table Size (mm)	4A (Flat plate) 860×570	1520×1520
	4C~(Angle plate) 670×300
	4C~Ⅱ(Angle plate) 670×300
	4C~Ⅲ(Angle plate) 670×550
Overall Dimension (mm)	4800×1300×4500	3650×3300×3200
Weight (kg)	3000	15000
Environment	Temperature range 0～40℃, Humidity ≤ 80% (non-condensing)
Power	3-phase AC380V±10％ 50Hz
Air source
Installation Condition	According to the foundation drawings provided by the manufacturer
Standards	MIL-S-901D
