MBE is an ultra-high vacuum (UHV/XHV) thin-film growth technique that enables atomic-layer-precision deposition of crystalline materials. By directing thermally evaporated elemental or molecular beams onto a heated single-crystal substrate, it achieves epitaxial growth (lattice-matched crystal structures) for advanced semiconductors, quantum materials, and heterostructures.
Key Components
| Component | Function | Critical Parameters |
| UHV/XHV Chamber | Maintains contamination-free environment | Base pressure: 10-9~10-12Pa; Leak rate: <10-10Torr·L/s |
| Effusion Cells | Thermal evaporation sources for elements (Ga, As, Al, etc.) | Temperature range: 100~1850°C; Flux stability: ±1% |
| Substrate Heater | Heats substrate to enable surface migration and crystallization | Range: RT~1500°C; Uniformity: ±2°C |
| RHEED Gun/Detector | Reflection High-Energy Electron Diffraction: Real-time surface analysis | Energy: 5~50 keV; Oscillation monitoring precision: 0.01 monolayer (ML) |
| Quadrupole Mass Spectrometer (QMS) | Monitors residual gases and beam fluxes |
Core Technical Parameters
| Parameter | Typical Range | Impact on Performance |
| Growth Rate | 0.01~3,000 nm/h | Low rates enable atomic-layer control (e.g., 1 ML ≈ 0.3 nm for GaAs) |
| Doping Precision | 10-14~1020cm-3 | Achieved via in-situ dopant sources (Si for n-type, Be for p-type) |
| Uniformity | Thickness: ±1%; Doping: ±5% | Critical for wafer-scale devices (e.g., 150-mm substrates) |
| Interface Sharpness | <0.5 nm | Enables quantum wells (QW) and superlattices with sub-monolayer abruptness |
Primary Applications
Compound Semiconductor Devices:
GaAs/AlGaAs HEMTs (High-Electron-Mobility Transistors): For 5G/mmWave RF amplifiers.
InP-based Lasers: Telecom wavelengths (1.3~1.55 μm) with low threshold currents.Quantum Technologies:
Superconducting Qubits (Nb/Al/AlOₓ): Atomic-layer tunneling barriers for coherence times >100 μs.
Topological Insulators (Bi2Te3/Sb2Te3): Interfaces with spin-momentum locking.
Infrared Optoelectronics:HgCdTe IR Detectors: Bandgap-tuned for SWIR/MWIR/LWIR imaging (military/astronomy).
Low-Dimensional Materials:Quantum Dots (InAs/GaAs): Single-photon sources for quantum encryption.
2D Heterostructures (MoS2/WSe2): Van der Waals stacks for flexible electronics.
Operational Challenges & Mitigations
| Challenge | Solution |
| Contamination Control | Pre-growth substrate annealing at 600°C; Chamber bakeout at 200°C |
| Flux Calibration Drift | Real-time RHEED feedback for growth rate adjustment |
| Dopant Incorporation | Use valved cracker cells for precise Sb/Te doping |
| Oxide Deposition | Integrate RF plasma sources for atomic oxygen (O⁺) |
Advanced Features in Modern MBE Systems

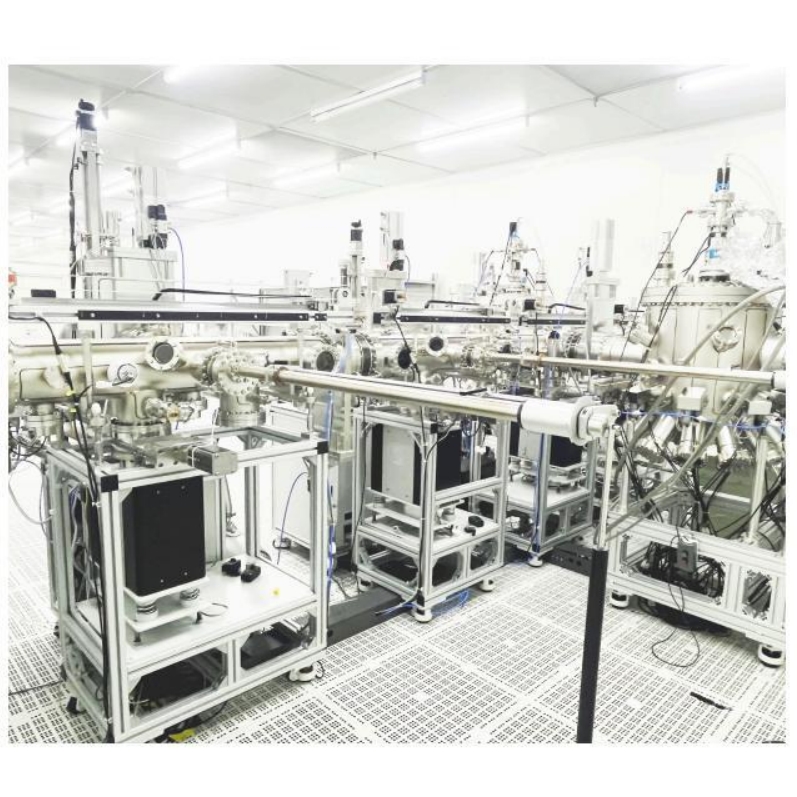

Multi-Chamber Integration: Transfer samples under UHV to analysis (STM/XPS) or processing modules.
Automated Beam Flux Control: AI-driven adjustment of cell temperatures based on RHEED oscillations.
Hybrid Techniques:Gas Source MBE (GSMBE): For phosphorus-based compounds (e.g., InGaP).
Migration-Enhanced Epitaxy (MEE): Improves GaN growth on mismatched substrates.
Industry Standards & Certifications
ISO 14644-1: Cleanliness standards (Class 4 for loading chambers).
ASTM E595: Material outgassing compliance for UHV components.
SEMI S2/S8: Safety protocols for toxic materials (As, Cd, etc.).
Conclusion:
MBE is the gold standard for atomically engineered materials, enabling breakthroughs in quantum computing, photonics, and nanoelectronics. Its unparalleled control over interfaces and doping is unmatched by CVD or sputtering, though throughput limitations restrict mass production. Future advancements focus on multi-wafer systems and AI-optimized growth recipes to scale quantum device fabrication.
