Overview

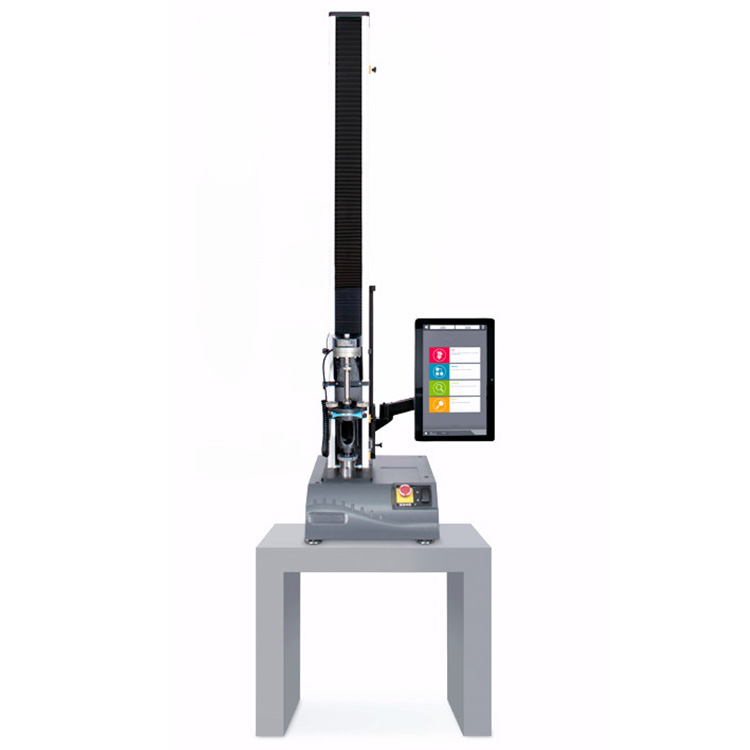

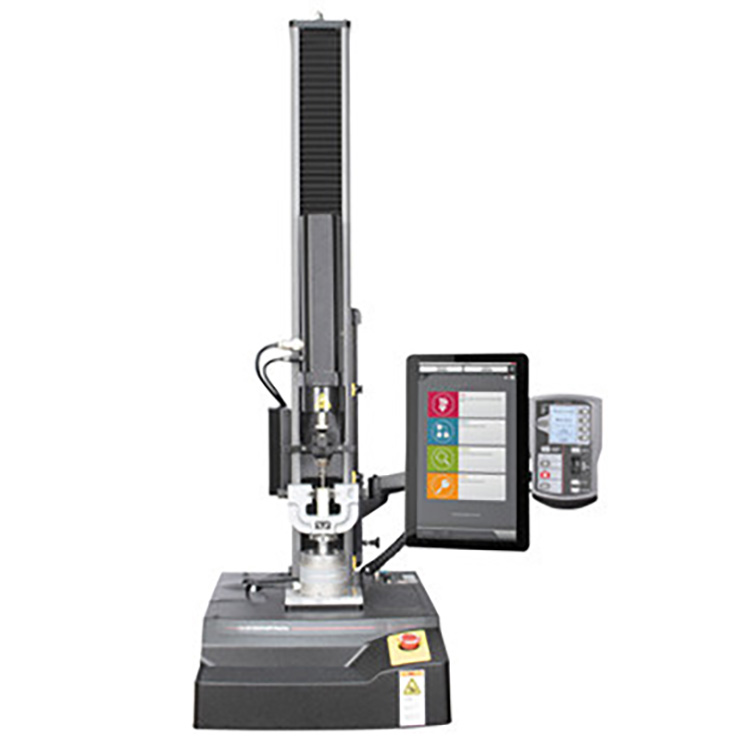

The G340 Series Single Column Systems are ideal for tension and/or compression applications where tests are less than 5 kN (1,100 lbf), lab space is limited, and where free access to the test area is desirable. The 3340 Series Single Column Testing Systems provide simplicity, performance, and affordability for quality control (QC) labs and production testing.

Features

· 200:1 force range (i.e. use the load cell to 0.5% of capacity with no loss of accuracy)

· Load accuracy of 0.5% of indicated load

· 500Hz data acquisition rate

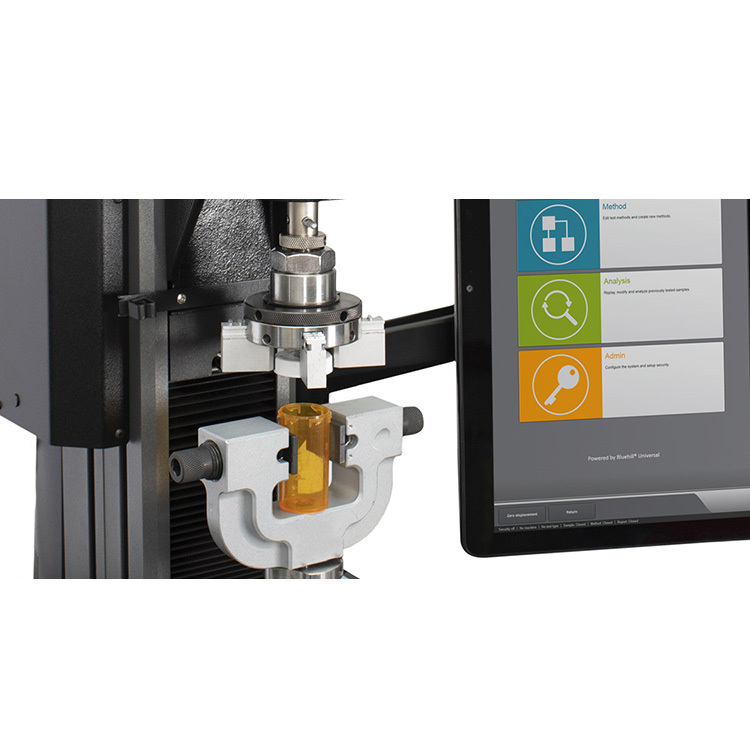

· Full software control (cyclic capability optional)

· Automatic transducer recognition

· Thousands of optional grips and fixtures

· Optional temperature chambers

· Color: Grey base with white columns

· Full CE compliance

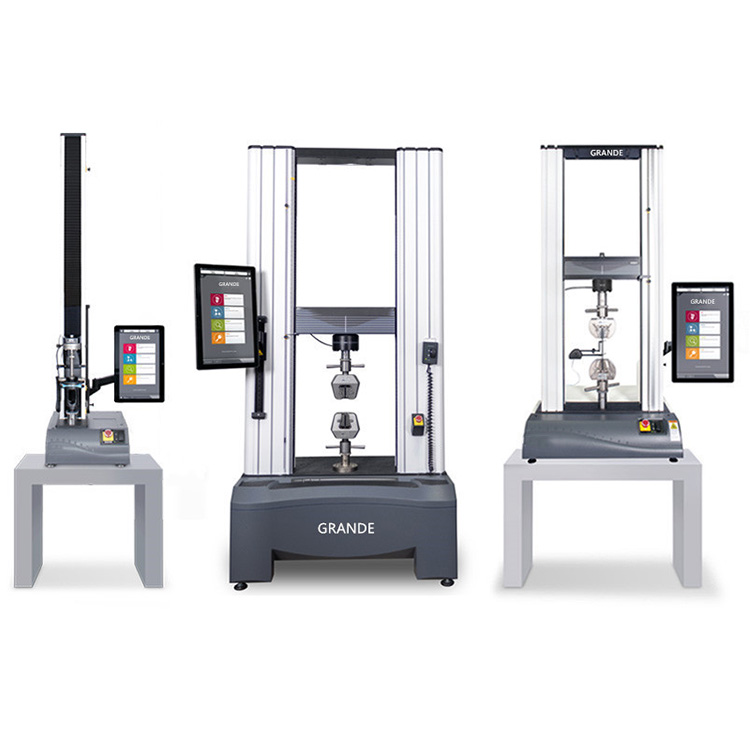

Range of Models

G342

· 0.5 kN (112 lbf) load capacity

· 651 mm (25.6 in) vertical test space

· Reduced overall height for compact size and low weight

G343

· 1 kN (225 lbf) capacity

· 1067 mm (42 in) vertical test space

G344

· 2 kN (450 lbf) capacity

· 1067 mm (42 in) vertical test space

G345

· 5 kN (1,125 lbf) capacity

· 1123 mm (44.2 in) vertical test space

· 1383 mm (54.4 in) vertical test space (Extra-height model)
