Vibration Test Systems

EV series electromagnetic vibration system simulates the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, model simulation of reproduction of sinusoidal, random, resonant search and dwell classical shock and road simulation, etc. can be achieved. It is essential for product quality assurance, new product research and development.


Product Details

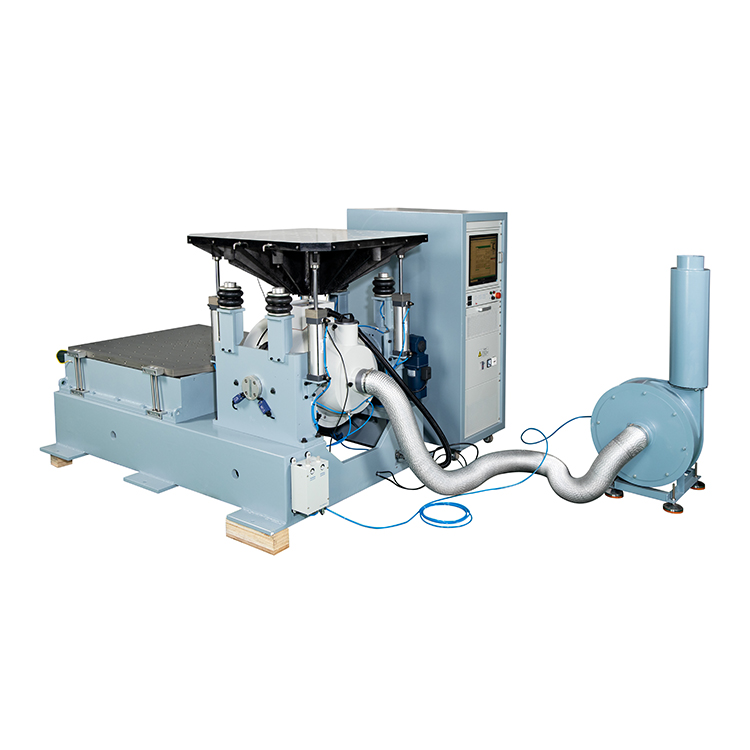

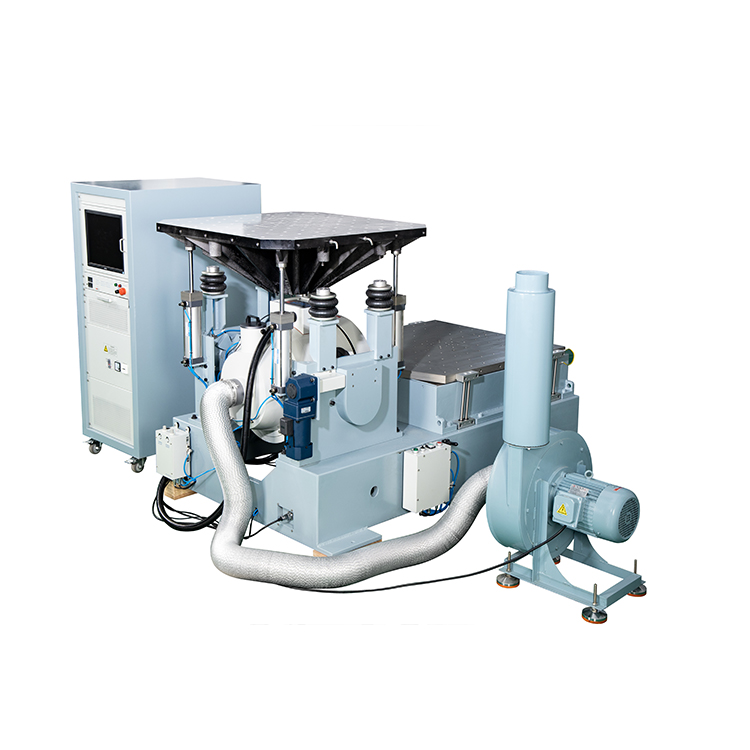

EV series electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.

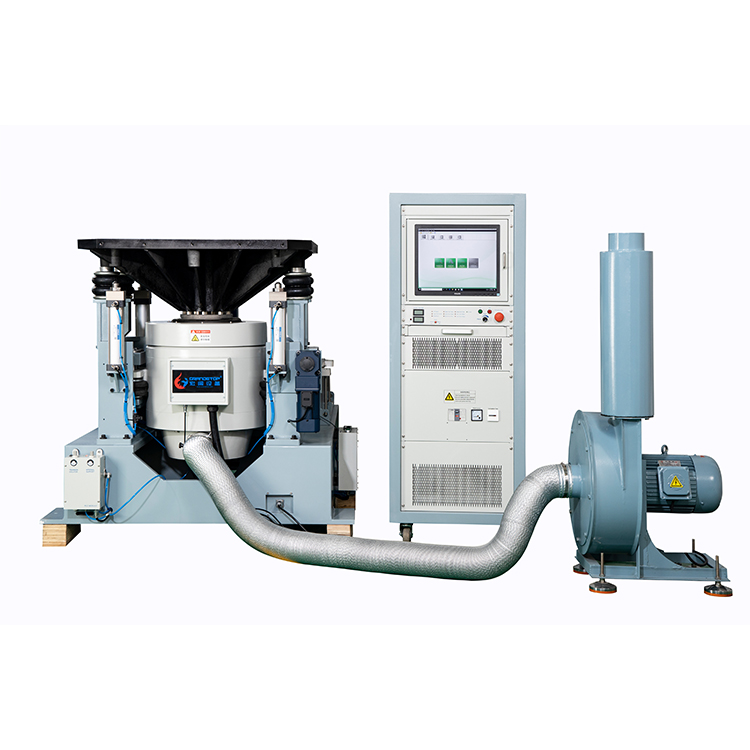

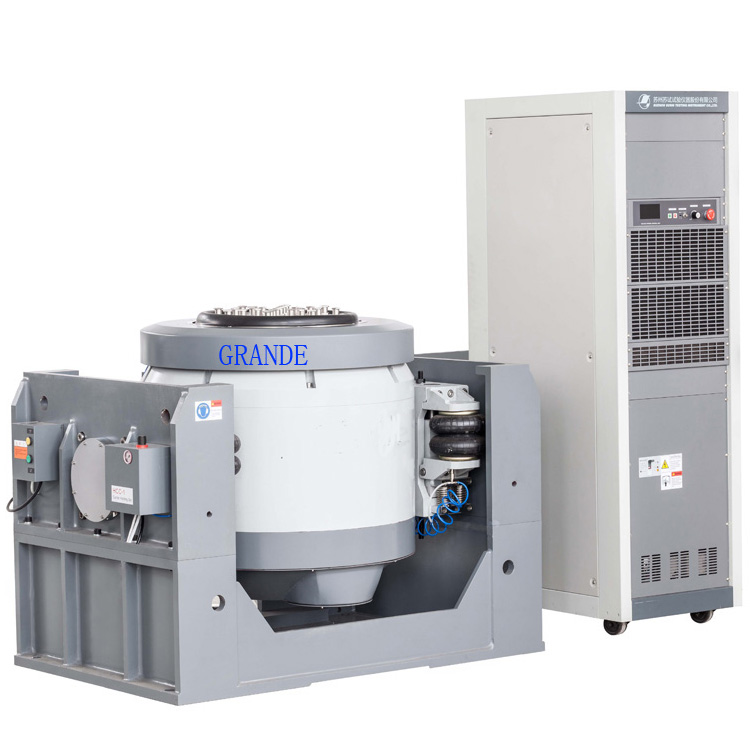

A complete set of vibration testing system is composed of shaker, power and vibration measuring control system, in accordance with relevant national and international standards(such as: MIL-STD,DIN,ISO,ASTM,IEC,ISTA,GB,GJB,JIB、BS, etc.)to provide technical support for establishing product quality inspection.

 ■Features

●Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;

●Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;

●High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;

●Quick self-diagnosis with safety interlock, high safety reliability;

●Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;

●Provide horizontal and vertical expansion platform for different application;

●Simple controller operation.

Technical Parameters:

System ModelEV203EV206EV210EV220EV232EV240EV250EV260EV320EV330EV340EV350EV360EV420EV430EV440

Frequency Range1-25001-30001-30001-30001-30002-25001-25001-27001-30001-27001-27001-25001-25001-30001-25001-2500

 Max Sine Force300(2.94)600(5.88)1000(9.8)2200(21.56)3200(31.36)4000(39.2)5000(49)6000(58.8)2000(19.6)3000(29.4)4000(39.2)5000(49)6000(58.8)2000(19.6)3200(31.36)4000(39.2)

Max Displacement4050.850.850.850.850.8550.850.876.276.276.276.276.2101.6101.6101.6

Max Acceleration1001001001001001001001008085100821006685100

Max Velocity200200200200200200200200200200200200200200250250

Max Load120200200300400500800100030040050010001000300500500

Shaker ModelVG300/40VG600/50VG1000/50VG2200/50VG3200/50VG4000/50VG5000/50VG6000/50VG2200/76VG3200/76VG4000/76VG5000/76VG6000/76VG2000/100VG3200/100VG4000/100

Armature Diameter361022324050502535356055303535

Armature Diameter¢150¢200¢240¢320¢400¢440¢445¢445¢320¢320¢440¢440¢445¢320¢400¢445

Cooling MethodForced Cooling
Shaker Weight46092011001700250025003500450017002500350035004500170025003500

Shaker Dimensions(L×W×H)750x560x670800x600x710845x685x8401200x870x11001270x980x11401400x980x11401600x1120x13401650x1150x12801200x870x11301270x980x11401650x1150x12801650x1150x12801650x1150x12801200x870x11301270x980x11401650x1150x1280

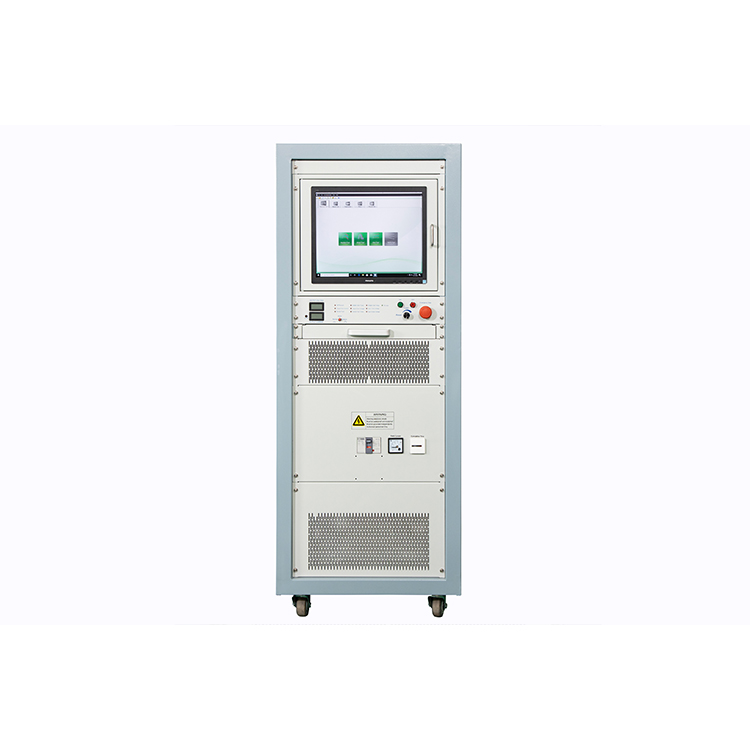

Power Amplifier ModelAmp3kAmp6kAmp12kAmp22kAmp35kAmp50kAmp60kAmp70KAmp30kAmp40KAmp50kAmp70kAmp70kAmp22kAmp40kAmp60k

Power Amplifier Weight25032035050055060080010005506008009001000550600800

Power Amp. Dimensions(L×W×H)880x580x1150880x580x1270880x580x1690880x580x1520910x620x1550910x620x2000910x620x2000910x620x2000880x580x1520910x620x1550910x620x2000910x620x2000910x620x2000880x580x1520910x620x1550910x620x1550

Power Supply(three-phase)AC380V±10%50Hz
Aggregate Capacity9202535565675754056757575455675
