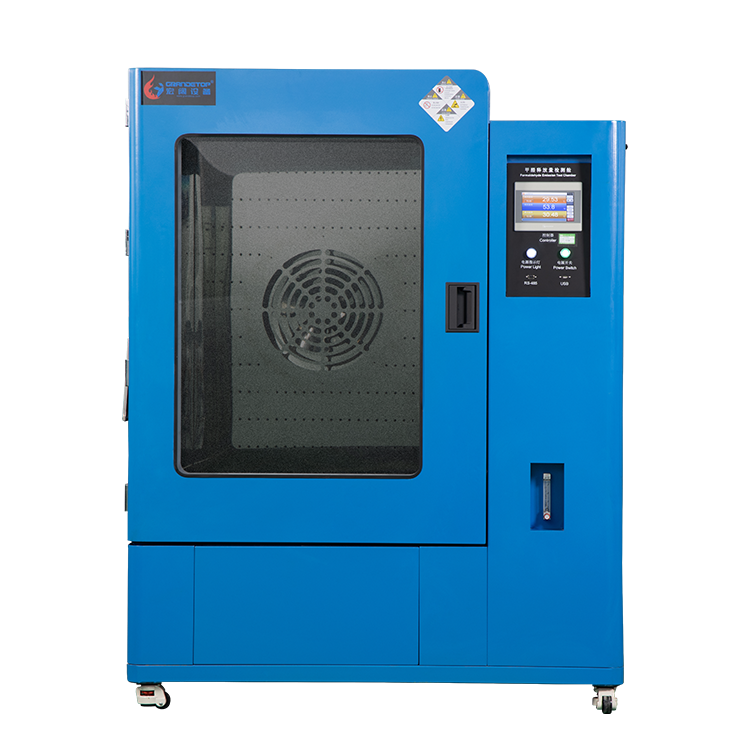

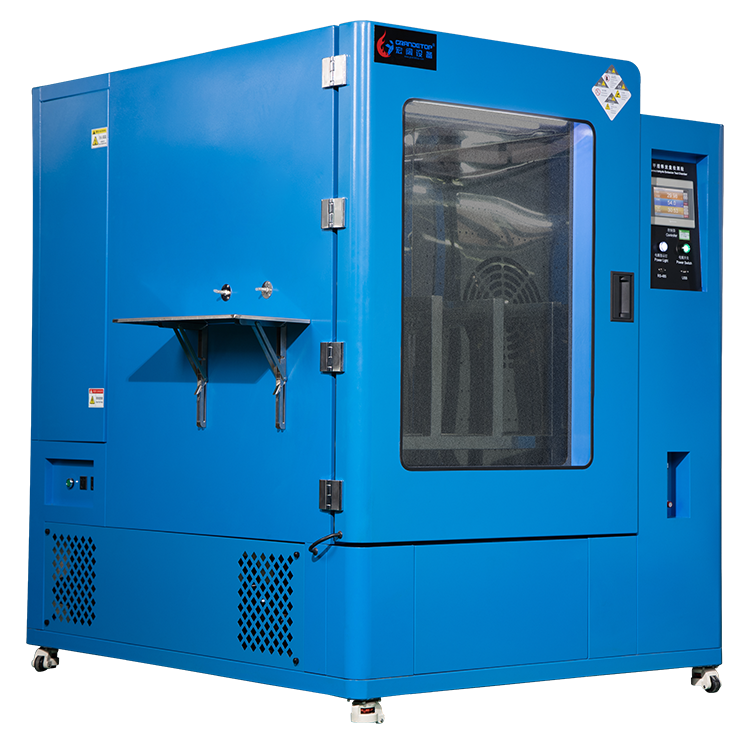

Electric Appliance VOC Emission Test Chamber
  • Electric Appliance VOC Emission Test Chamber
  • Electric Appliance VOC Emission Test Chamber
Electric Appliance VOC Emission Test ChamberElectric Appliance VOC Emission Test Chamber

Electric Appliance VOC Emission Test Chamber

Electric Appliance VOC Emission Test Chamber

Application of VOC Emission Test Chamber for Electric Appliances

1.The VOC test chamber provides standard testing environment to determine the VOC emission rate and emission characteristics of Interior decoration materials and products.Based on the test report,we can:

•Determine the impact of environment variables on the VOC emission rate and emission characteristics

Classify the level of products and materials according to the emission characteristics

•Develop and adjust indoor air pollution models

•Evaluate the IAQ (Indoor Air Quality) according to the pollution data and test report

2.This type of VOC emission chamber plays a vital role in testing hazardous gas released by electric appliances.In also finds an application in the VOC testing of decoration materials,plastics,electronic toys and so on.


Product Details

Advantages of VOC emission Test Chamber

The coated stainless steel wall improves the adsorption capacity of test chamber for high-boiling-point materials and polar compounds.The recovery rate of tetradecane and 4-phenyl-1-cyclohexene can achieve more than 80%.

The patent is about how to deal with the connection surface between VOC emission chamber and the testing object.The technology helps to reduce the surface adhesive force,largely reducing VOC’s adhesiveness on chamber’s interior wall.In this way,the testing result of samples stored in the sampling bag is more close to the result of testing object in chamber,and the testing precision chamber is largely improved.

Technical Parameters of VOC Emission Test Chamber for Electric Appliances

MoldEVOC-1000EVOC-2000EVOC-3000EVOC-5000
Environment temperature5℃~35℃
Environment humidity≤90%RH
Environment requirementsWith no pollution source,TVOC≤500ug/m³
Size of climate chamber(cm)D910×W1000×H1100D910×W2000×H1100D1350×W1500×H1500D1500×W1670×H2000
Temperature adjustment range20℃~70℃,more than 250℃ for high-temperature cleaning20℃~70℃,more than 500℃ for high-temperature cleaning
Humidity adjustment range30±80%RH(20~30℃)
Pressure10±5pa
Temperature fluctuation±0.3℃
Temperature deviation±0.5℃
Humidity fluctuation±2.5%RH
Humidity deviation3%
Air exchange rate0.2~5Times/h,±5%
Air velocity0.1m/s~0.3m/s
Power supplyAC 380V/50Hz/Three-phase five-wire
Start-up power15kw20kw30kw35kw
Runnning power7kw9kw14kw16kw
Background concentration of formaldehydeLess than 15ug/m³,minimum value:6ug/m³
Background concentration of VOCSingle VOC:less than 2ug/m³,TVOC:less than 20ug/m³
Recovery rateMore than 80%
Air purification systemStandard configurations

Testing Methods

1.The air is first processed by compressor to remove solid particles,formaldehyde and volatile organic compounds,and then enters into the test chamber.

2.The climate chamber is designed with an air jacket for conditioning the temperature in testing chamber.

3.By adopting dew point method,the humidity of climate chamber is well regulated and controlled.

Manufacture Standards

GB18580-2001Indoor Decorating and Refurbishing Materials-Limit of Formaldehyde Emission of Wood-Based Panels and Finishing Products
GB18584-2001Indoor Decorating and Refurbishing Materials-Limit of Harmful Substances of Wood Based Furniture
GB18587-2001Indoor Decorating and Refurbishing Materials-Limitations of Harmful Substances Emitted From Carpets,      Carpet Cushions and Adhesives
ASTM D6007-02Standard Test Method for Determining Formaldehyde Concentration in Air from Wood Products Using A Small Scale Chamber
ENV717-1Wood-Based Panels.Determination of Formaldehyde Release.Formaldehyde Emission by the Chamber Method
EN13419-1Building Products.Determination of the Emission of Volatile Organic Compounds.Emission Test Chamber Method
HJ571-2010Technical Requirement for Environmental Labeling Products Wood Based Panels and Finishing Products
HJ566-2010Technical Requirement for Environmental Labeling Products Wooden Toys

Standards for Reference

ASTMD5116-97Standard Guide for Small-Scale Environmental Chamber Determinations of Organic Emission from Indoor Materials/Products
ASTMD6330-98Standard Practice for Determination of Volatile Organic Compounds (Excluding Formaldehyde) Emissions from Wood-Based Panels Using Small Environmental Chambers Under Defined Test Conditions
ASTMD6670-01Standard Practice for Full-Scale Chamber Determination of Volatile Organic Emissions from Indoor Materials/Products
ASTMD1333-96Standard Test Method for Determining Formaldehyde Concentrations in Air and Emission Rates from Wood Products Using a Large Chamber
