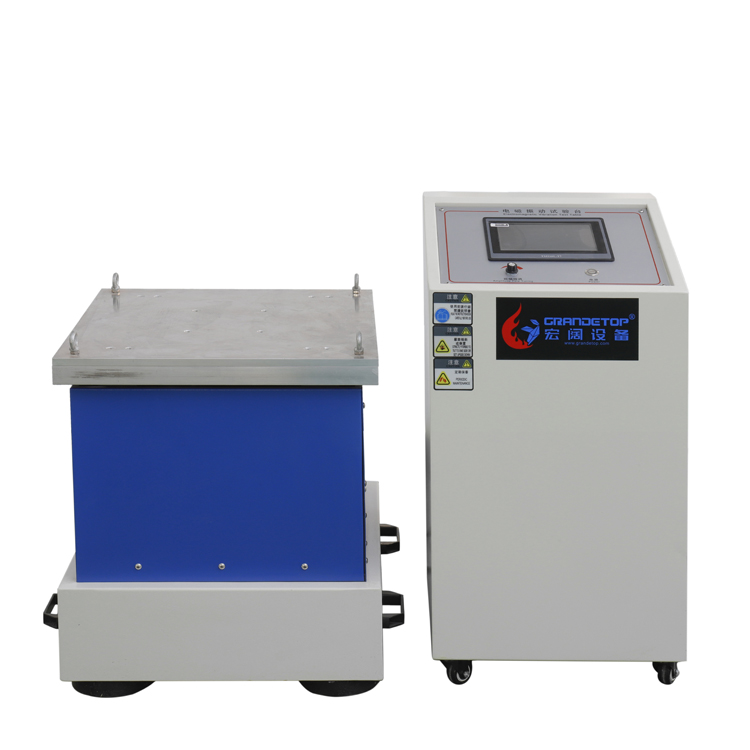

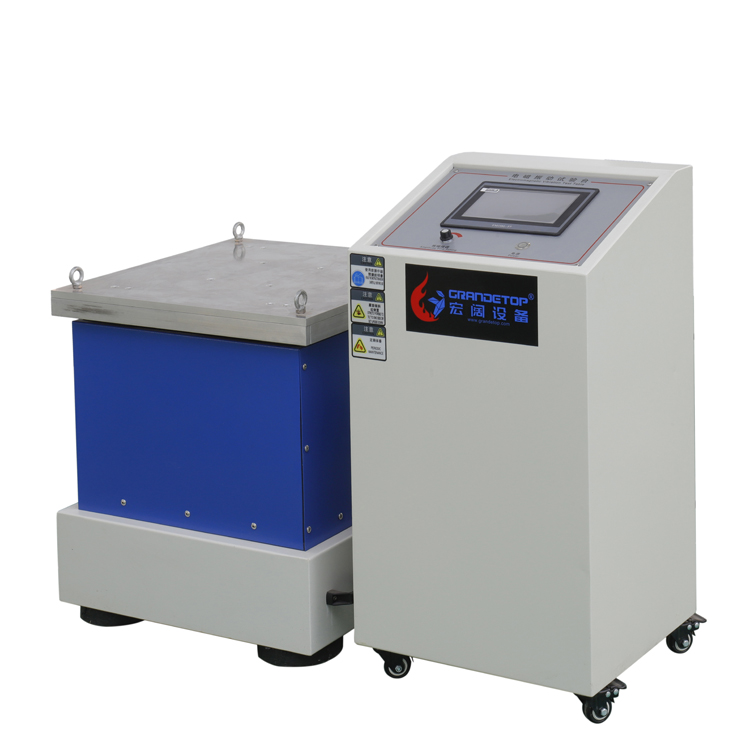

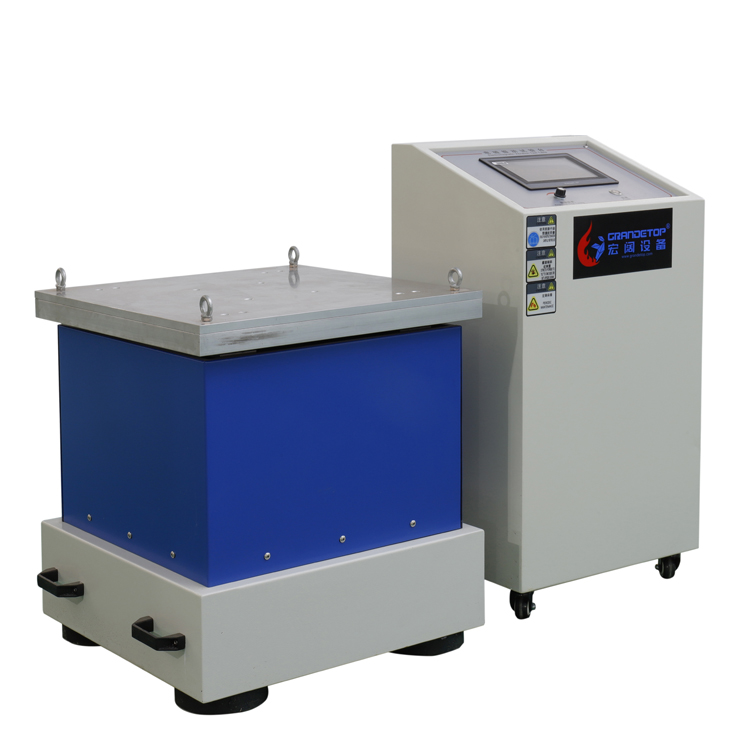

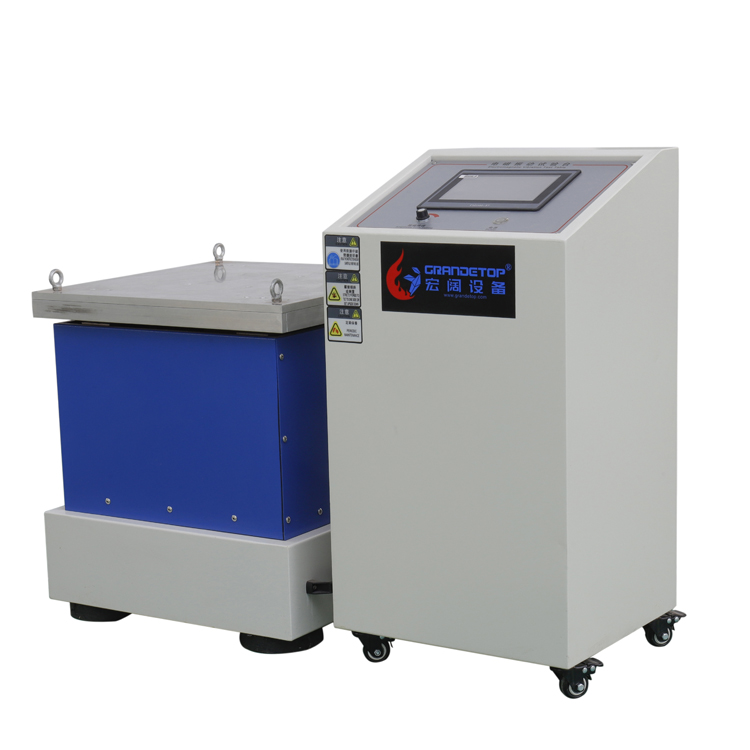

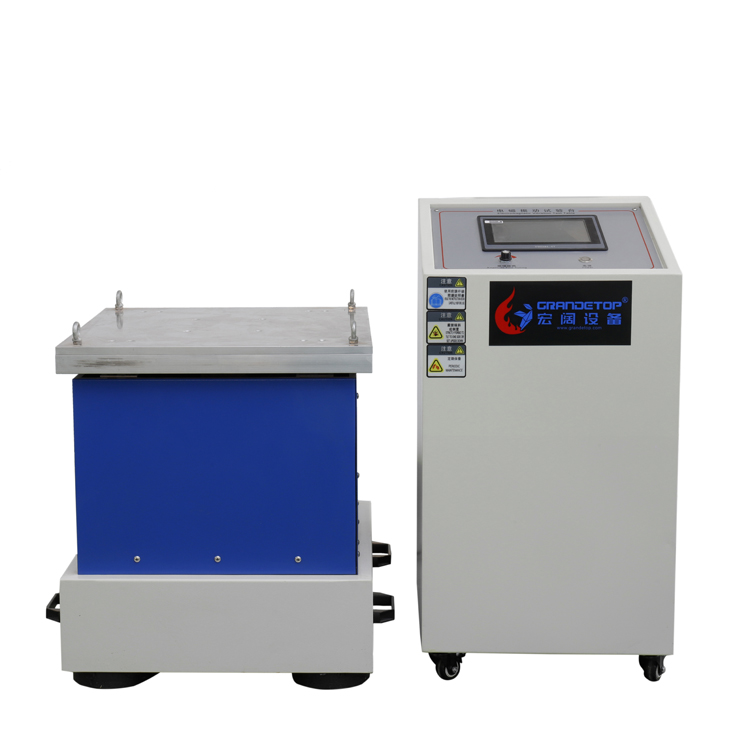

Economy Vibration Test Systems
This series of vibration test system is applicable for vibration and engineering testing vertically in laboratory as well as production line. The structure of the vibration tester is reasonable with good reliability, simple operation and is cost effective.
Specifications:
| Model | VB60S |
| Frequency Range | 15~60 |
| Max. Amplitude (mmp-p) | 2.5 |
| Max. Acceleration(G) | 14 |
| Max. Payload(kg) | 50 |
| Test Method | Fixed Frequency, Sweep Frequency |
| Table Size（mm） | 600×500 |
| Machine Size(mm) | 500×600×390(L×W×H) |
| Weight（kg） | 140 |
| Power Consumption(kg) | 0.8 |
| Power Supply | AC110V or 220V,50/60Hz |
