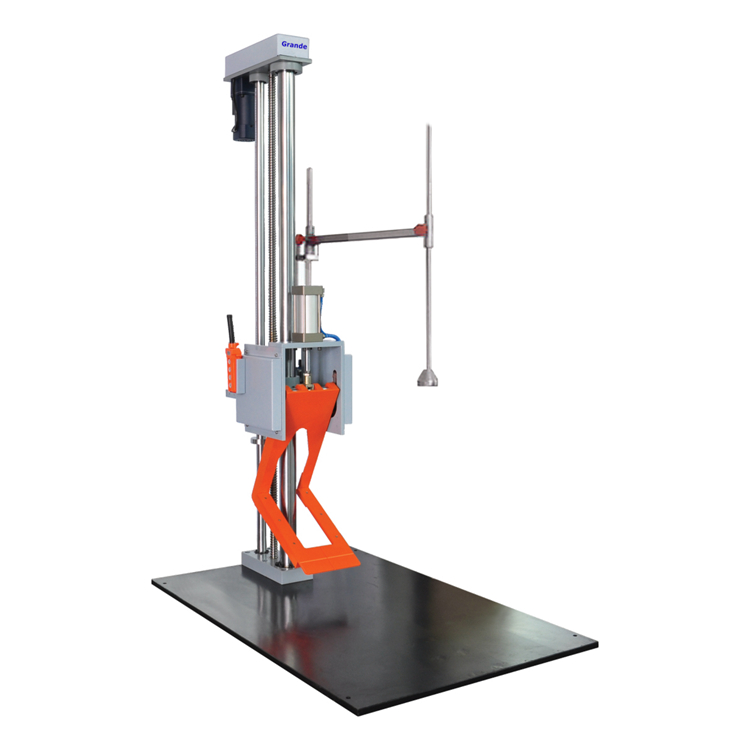

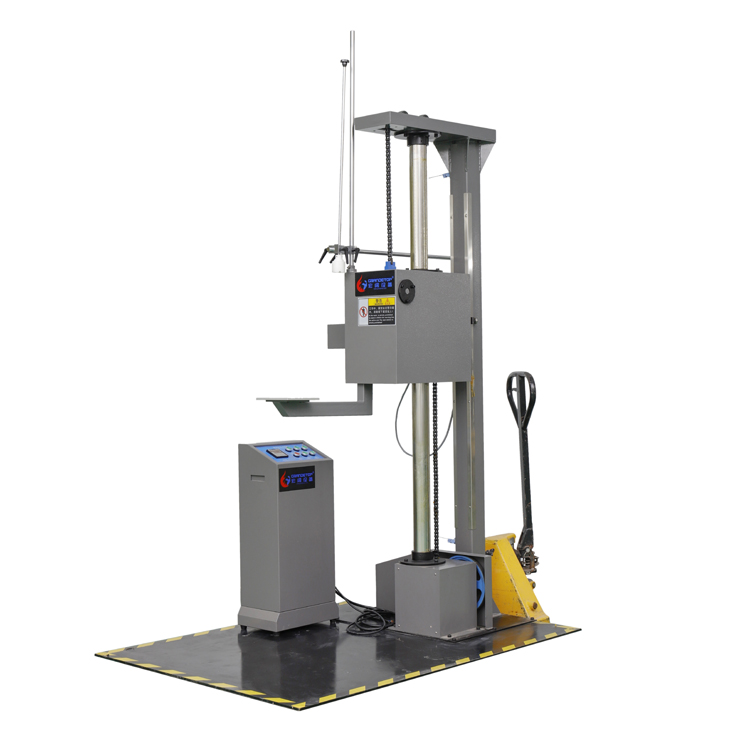

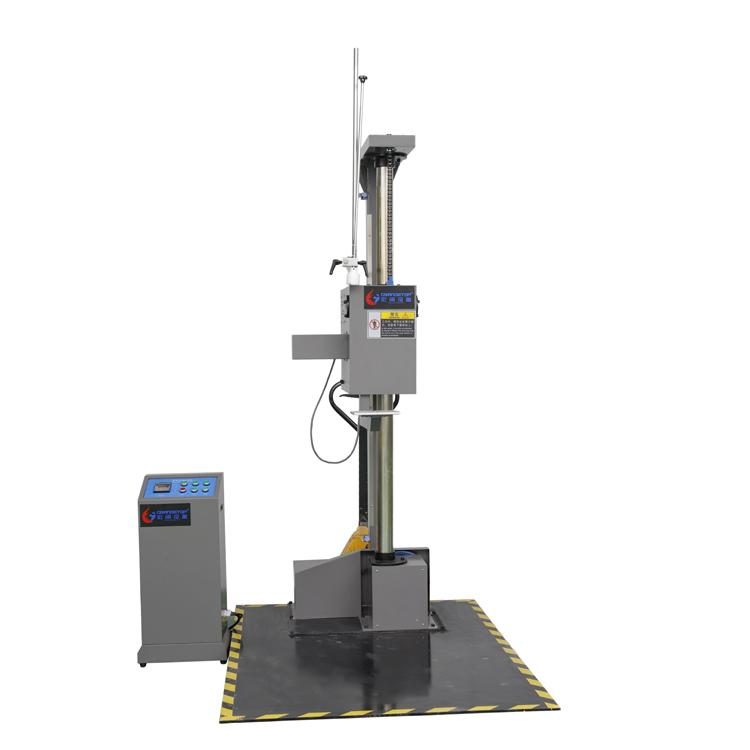

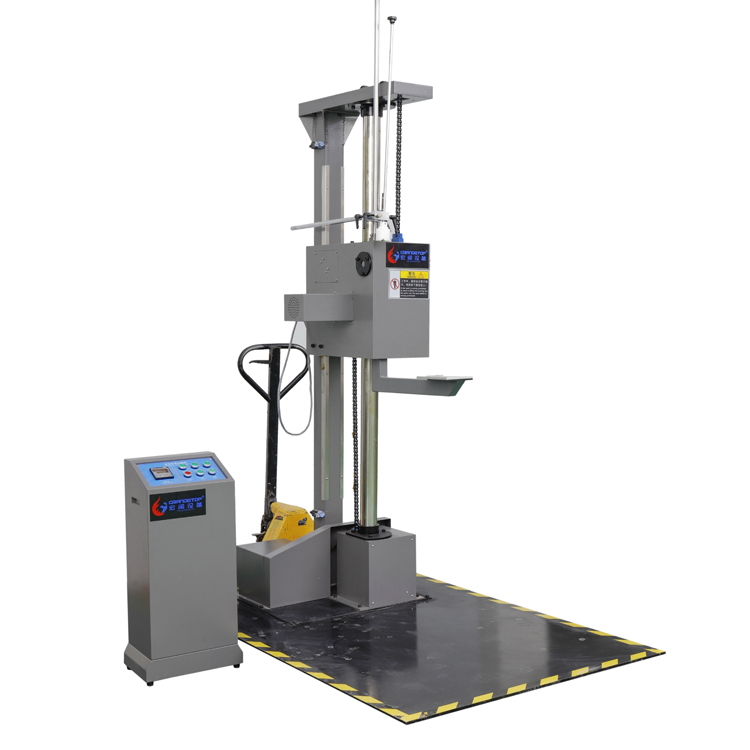

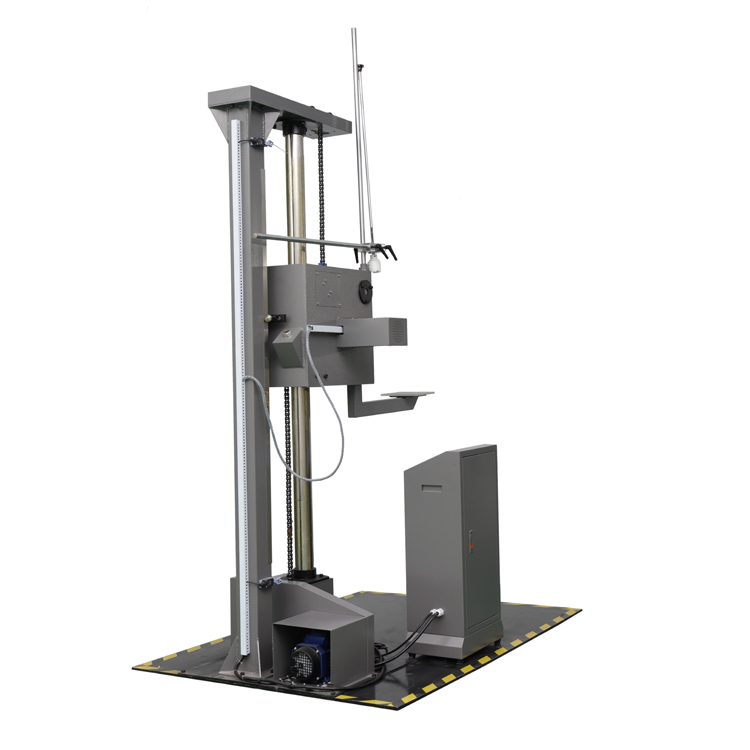

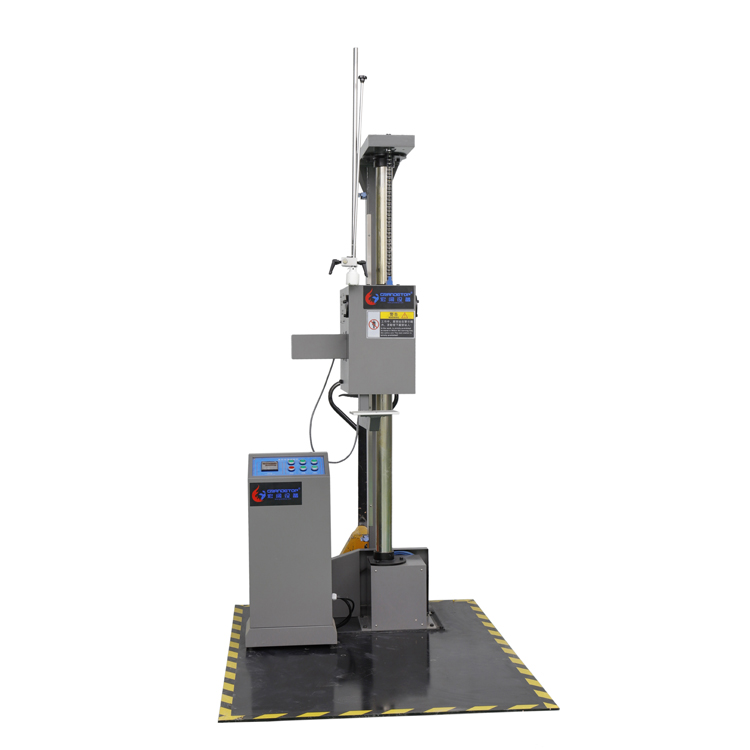

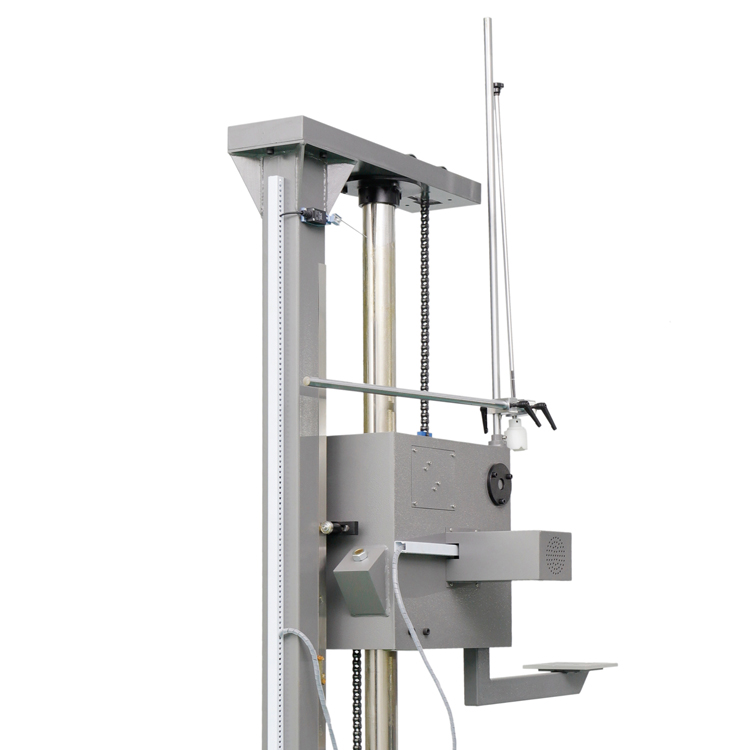

Drop Tester

Drop Tester is used to determine the effect of impact on the package during use, transportation, loading and unloading. The strictly designed GRANDE“1G+”ensures its accuracy. Apart from accurate plane fall test, it can also perform edge and corner drop test to make a complete evaluation on the performance of packaging and product.


Product Details

■Features

●Satisfy and even beyond GB, IEC, ASTM, ISTA and other industrial standards;

●Can per surfaces, corner and edge drop;

●Precise guiding system and is driven pneumatically;

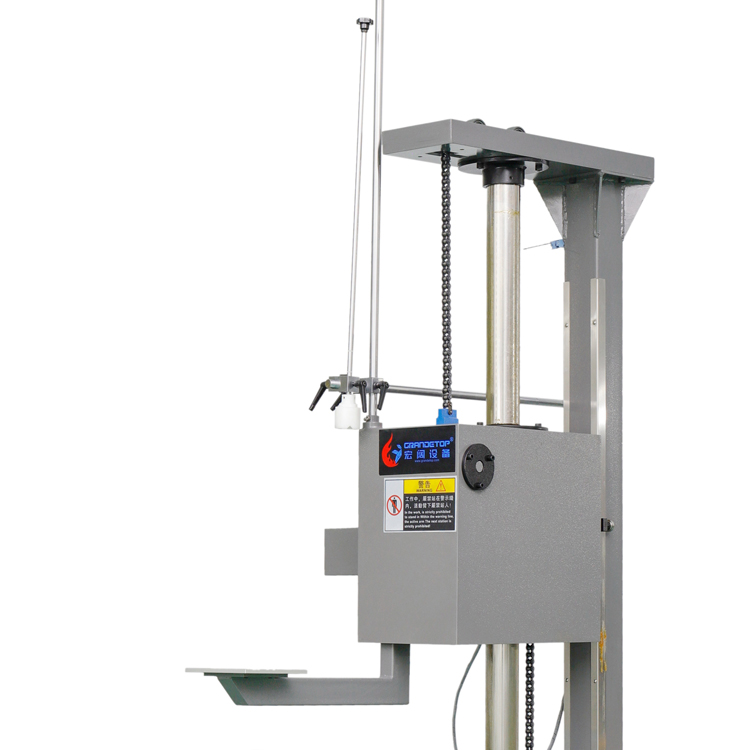

●Unique swing arm structural design, escape acceleration of the swing arm detachment greater than 3G;

●With double column guide, hydraulic buffer absorb the force of the swing arm, the movement is stable, reliable and with low noise;

●Self-locking screw in lifting mechanism to prevent accidental downward glide;

●Automatic pneumatic interlocks to prevent abnormal detachment of swing arm;

●Extensible support bracket and bottom slab.

Technical Parameters:

ModelGD-150GD-200
Drop Height(mm)300~1500300~2000
Payload Capacity(kg)8585
Package Size(mm)800×800×800800×800×800
Drop ModeFree Fall Drop
Machine Size(mm)1000*1500*21001200*1700*2600
Machine Weight(kg)480550
Power/Air SupplyAC110/220V 50/60Hz (Compressed Air)0.5~0.7Mpa
Applicable StandardsISO2248-72(E)GB/T4857.5 JISZ0202-87 IEC68-2-27
