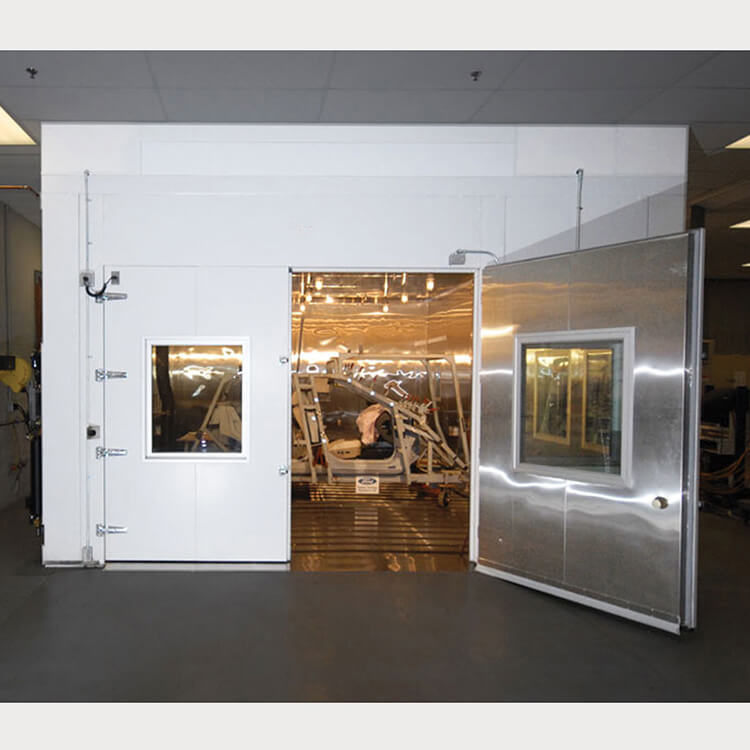

Drive-In Test Chamber/Drive-in Test Room

Environmental testing of automobiles requires additional consideration of the facility where the chamber will be installed, and its planned use. Test methods for vehicles can include additional conditions besides temperature and humidity in an attempt to simulate real-world conditions.

Product Details

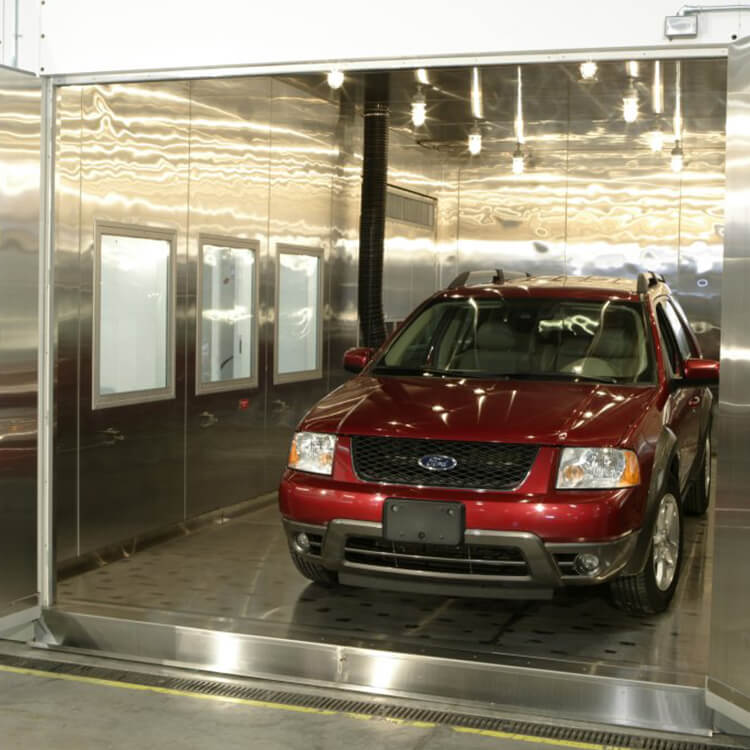

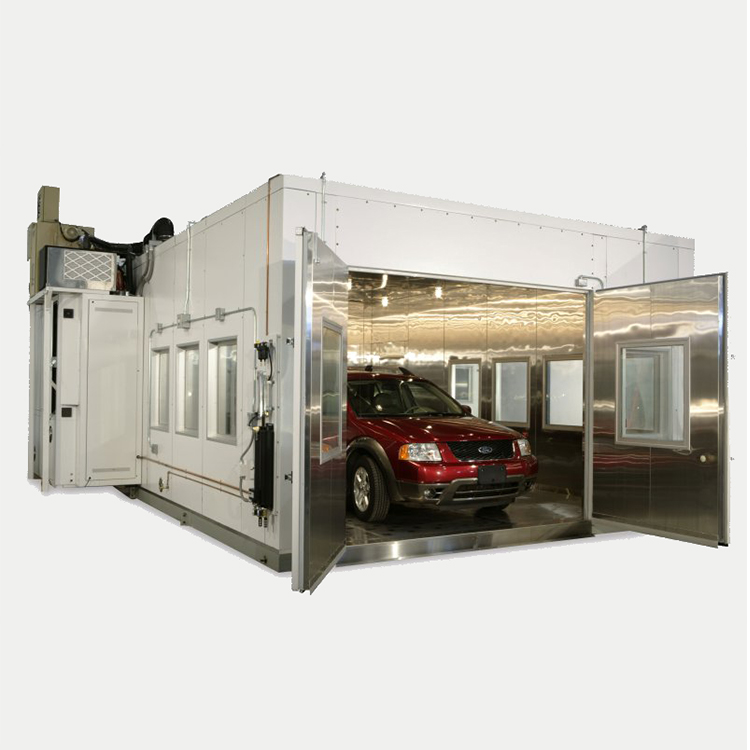

Drive-In test chamber Custom Systems for Vehicle Testing

Environmental testing of automobiles requires additional consideration of the facility where the chamber will be installed, and its planned use. Test methods for vehicles can include additional conditions besides temperature and humidity in an attempt to simulate real-world conditions.


Chassis Dynamometer or Four-post road simulator

Grande builds special floor interfaces to allow use of these additional types of equipment supplied by other vendors.


Infrared Lighting

Grande builds infrared systems to create radiant surface heating of vehicles to look for deformation and other quality problems. These systems can be adjusted vertically and angled to ensure even coverage.


Running vehicle

From cold-start to high-heat stress, a running engine is a common need, but complicated requirement fresh air must be conditioned and introduced to the chamber to make up for that used in combustion. Also the exhaust must be safely removed from the chamber.


Features

· Stainless steel interior

· Heavy-duty flooring to support vehicles

· Painted galvanized steel exterior for long life

· Large doors

· Special MAP system with larger refrigeration and additional airflow capability

· MAP service doors are hinged (no tools or lifting)

· Easy access to frequently checked refrigeration components

· Customization to suit additional test requirements


Technical parameters:

Model NoGDI
Working room(L)Please kindly give us your request and details,it is custom service.
Inner chamber size(mm)W*H*D
Temperature Range0℃;-20℃;-40℃;-60℃~+70℃(+80℃)
Humidity Range30~90%RH
PerformanceTemp.&Humi.Fluctuation±0.3℃;±2.5%RH
Temp.&Humi.Uniformity±0.1℃;±5%RH
Temp.&Humi.Resolution0.1℃; 0.1%RH/0.01; 0.1%RH
Heat up time(20℃~high temp.)80

min50
Cool down time(20℃~low temp.)0-20-40

min5570100
MaterialInner chamber materialStainless steel plate+ powder coated
Exterior chamber materialSUS#304 stainless steel plate
Insulation MaterialPolyurethane foam 100mm(75mm)(50mm)
SystemWind CirculationSirocco fans
Heating systemSUS#304 stainless steel high-speed heater
Humidifying systemSurface evaporating system
Refrigeration systemImported compressor,Tecumseh compressor(or Bizer Compressor),finned type evaporator,air(Water)-cooling condenser
Dehumidifying systemADP critical dew point cooling/dehumidifying method
Controlling systemPID Digital electronic indicators+S.S.R.With PID automatic calculation capability
Other ComponentsVaccum glass inspection window, cable port(50mm), control status indicator lights,
chamber lamp, loading shelves(2pcs for free)
Safety protection deviceOver-heat protection circuit breaker,Compressor overload protection,Control system overload protection,Humidifying system overload protection,Overload indicator lamp.
Power Supply3Ψ 380V 60/50Hz
Customized serviceWelcome to Non-standard,Specail requirements,OEM/ODM orders.
The technical information will be subjected to change without notice
