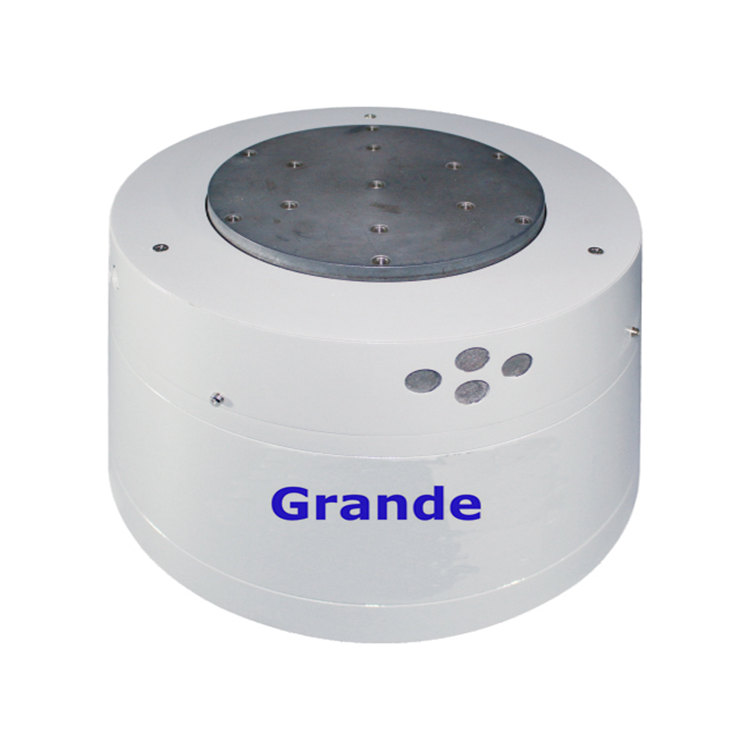

With light weight, small volume, convenient to move, EV series standard vibration table is widely used in the acceleration sensor calibration,vibration test, fatigue test and mechanical impedance test of micro parts,at the same, the EV series can also be used for teaching and scientific research and laboratory.
Features
●Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
●Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
●Apply to the basic test of vibration engineering of educational equipment.
Constitute
Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor.
Technical Parameters:
Model | EV50 |
| Rated Sine Force | 50kg.f(490N) |
| Rated Random Force | 38kg.f(372N) |
| Frequency Rang | 5～3800Hz |
| Max. Acceleration | 38G |
| Max. Displacement | 10mm |
| Max. Velocity | 1.2m/s |
| Armature Weight | 1.2kg |
| Machine dimension | W360×D300×H350mm |
| Machine Weight | 36kg |
| Cooling Method | Forced Cooling |

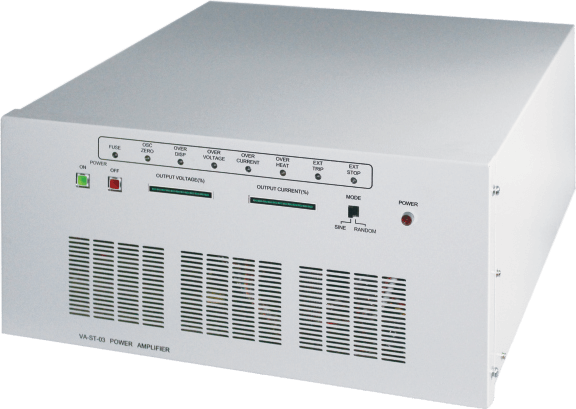

| Power Amplifier | Va05 |
| Output Power | 500W |
| Output Voltage | 38RMS |
| Power Supply | AC220V±10% 50Hz |
