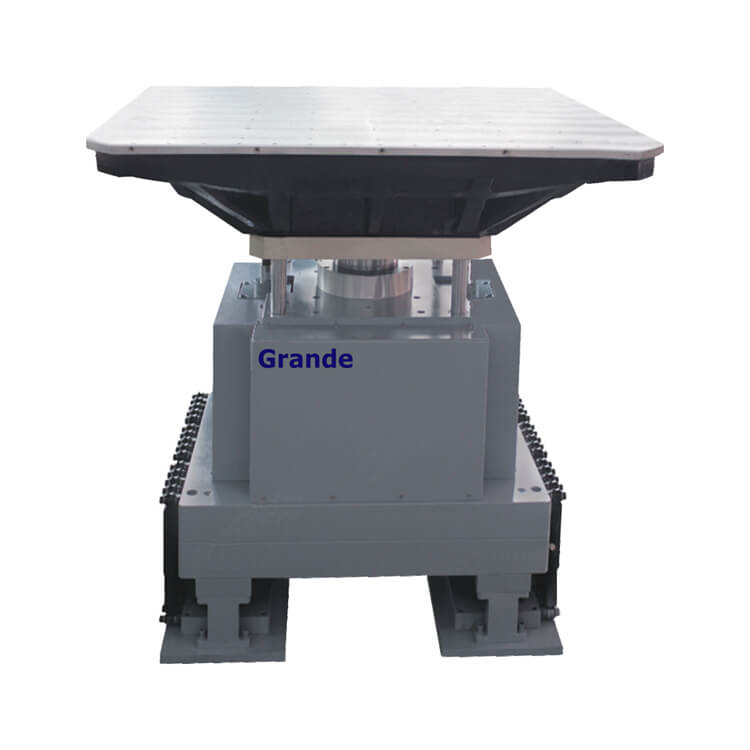

Components and other electronic and electrical products may experience repeating impact during transportation or use. Bump test can be used as a method to ensure the design structure is satisfying or as a quality assurance method. Specimen will experience regular peak acceleration and continuous impact with standard pulse during the bump test.
| Model | GSKM500 | GSKM700 | GSKM800 | GSKM1000 | GSKM1500 | |||
| Table size(mm) | 500×700 | 700×800 | 800×800 | 1000×1000 | 1500×1500 | |||
| Max.Payload(kg) | 50 | 100 | 200 | 500 | 1000 | |||
| Wave form | Halt sine pulse | |||||||
| Acceleration range(G) | 5~120 | 5~100 | 5~100 | 5~80 | 5~60 | |||
| Pulse duration(ma) | 6~18 | |||||||
| Bump repetition frequency(Hz) | 1~120 | 1~80 | ||||||
| Drop height range(mm) | 5~120 | 5~180 | ||||||
| Maximum acceleration variation(m/s) | 2.2 | 2.6 | 2.8 | |||||
| Machine dimension(mm) | 750×660×800 | 900×900×800 | 900×960×800 | 1200×1150×860 | 1600×1650×1200 | |||
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 | 6500 | |||
| Power ＆ Air supply | AC220V±10% 50Hz Air supply(8kg 23m³gasholder) | |||||||
| Standards | GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc | |||||||
