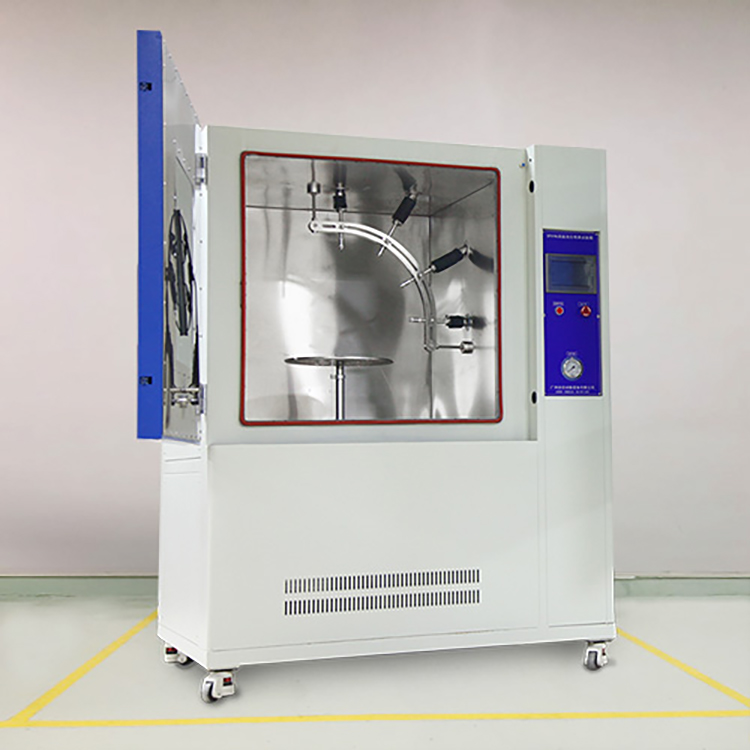

IPX9K High Pressure High Temperature Spray Test Chamber
  • IPX9K High Pressure High Temperature Spray Test Chamber
IPX9K High Pressure High Temperature Spray Test Chamber

IPX9K High Pressure High Temperature Spray Test Chamber

Appliance:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.


Product Details

IPX9K is Powerful high temperature water jets,Protected against close-range high pressure, high temperature spray downs.

Smaller specimens rotate slowly on a turntable, from 4 specific angles. Larger specimens are mounted upright, no turntable required, and are tested freehand for at least 3 minutes at distance of 0.15–0.2 m.

There are specific requirements for the nozzle used for the testing.

This test is identified as IPx9 in IEC 60529.

Test duration: 30 seconds in each of 4 angles (2 minutes total)

Water volume: 14–16 litres per minute
Pressure: 8–10 MPa (80–100 bar) at distance of 0.10–0.15 m
Water temperature: 80 °C

1. Meet ISO20653-2013,VW80000,GBT4208-2017 Standard

2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4.  PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.

1,DescriptionIPX9K High Pressure High Temperature Spray Test Chamber
2,Model NoG-IPX9K-1000L
3,Pictures IPX9K High Pressure High Temperature Spray Test Chamber
4.ApplicationsApplications:to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.
5.StandardsISO20653-2013,VW80000,GBT4208-2017 Standard
6.Features1,Applied for IPX9K Grade Testing and IPX69 Grade Testing2,Outer wall material:Cold-Rolled steel plate,thickness 1.5mm,with static color spay.Excellent look and Durable quality.3,SUS#304 Stainless steel plate with seamless welding,laser.,etc. Make sure it will not get rusty.4,Self-installed with Water Tank,Recycle Water.Water level float ball valve control water filling and alarm when the water is lacking,to prevent water pump get damaged because water lacking.5,Multi-layer vacuum glass observation window on door with LED light inside,easy to observe the inner chamber.6,90°Angle with 4 pieces circular sprayer, Corresponding with standards.  7,Spaying flow,pressure and temperature are programmable in Controller.8,Rotating table driving:the speed and angle are programmable in Controller.The speed is CVT.9,Imported Italian Water pump with high temperature and pressure resistance,the performance is stable and durable.10,Time range:0-999Min(adjustable)11,7 Inch PID programmable controller.12,Optional:USB,RS-232,RS-485,Printer.
7.Technical ParametersStructure Parameter

Inner chamber size(mm)W*H*DW1000*H1000*D1000 mm

Exterior chamber size(mm)W*H*DW1400*H1850*D180 mm

Sprayer4pcs

Sprayer angel0°、30°、60°、90°

Sprayer distance100-200mm Adjustable

Rotating table DiameterDiameter:400mm

Lifting rotating tableFixed

Functional Parameter

Spray flow14~16L/min

Sprayer temperatureRoom Temperature :25℃;Water temperature:80±5℃

Water pressure8000~10000 Kpa

Spraying Impact Force0.9~1.2N

Load-Bearing of Rotating table50kg

Rotating speed1~10 r/min

Testing time120S

Electric Parameter

Power Supply of Test chamber380V/50Hz/60Hz

Power Supply of Testing specimenAC 1Ψ 110V;AC 1Ψ 220V,60/50Hz

Equipment power15.0KW

Safety protection deviceEarth Leakage Protection,Water lacking Protection,Short-circuit Protection,Phase protection,Over-loading Protection,Leakage protection.
  8.ConfigurationDescription SpecificationQTYBrand

ChamberInner:SUS#304 Stainless steel plate,Outer:Cold-Rolled steel plate,thickness 1.5mm,with static color spay.Excellent look and Durable quality.1setGRANDE

Water TankSUS#304 Stainless steel plate1setGRANDE

Rotating TableSUS#304 Stainless steel1setGRANDE

SprayerSUS#304 Stainless steel4setsGRANDE

Imported Italian Water pump with high temperature and pressure resistanceItaly1setHAWK

Imported Italian Solenoid with high temperature and pressure resistanceItaly4setsMM

Controller7Inch1setGrande

PLC ControllerJapan1setPanasonic

Temperature Module
1setPanasonic

PLC Extended module
1setPanasonic

Force calibration system
1setGRANDE

AC contactor
1setLS

Thermal-overload relay
1setLS

Intermediate Relay
5setOMRON

Phase relay
1setTOONE

Flow Sensor
1setNONCON

Pressure sensor
1setSISEN

Transducer
1setDELTA

Leakage Switch
1setLS

Power Switch
1setOMRON

Pressure MeterY-60BFZ1setRed Flag

Float ballND151setRed Flag

Motor57#1setJS

Reducer
1setABA

Button Switch
2setCHNT
9.Brochures1.User manual2.Certificate of Quality and Quantity3.Warranty certificate;
