IPX3456 Rain and Flush water test chambers
  • IPX3456 Rain and Flush water test chambers
  • IPX3456 Rain and Flush water test chambers
  • IPX3456 Rain and Flush water test chambers
  • IPX3456 Rain and Flush water test chambers
  • IPX3456 Rain and Flush water test chambers
IPX3456 Rain and Flush water test chambersIPX3456 Rain and Flush water test chambersIPX3456 Rain and Flush water test chambersIPX3456 Rain and Flush water test chambersIPX3456 Rain and Flush water test chambers

IPX3456 Rain and Flush water test chambers

Appliance:
The main function of this equipment is to test the physical and other related properties of the products in the environment of simulated rain, such as electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and components. After the test, through the test to determine whether the performance of products meet the requirements in order to facilitate product design, improvement, testing and factory inspection.


Product Details

1. Meet GB4208-2008/IEC60529:2001 and GB 7000.1-2015/IEC 60598-1:2014 Part 9 (Dustproof,Antisolids and waterproof) which is waterproof test standard of IP65.

2. The test sample will be put or installed on the center of the half-round sinuous pipe and make the bottom of the test samples and the oscillating axis in a horizontal position. During test, the sample would spin around the center line.
3. Can manual default the test parameters, complete testing automatically shut off the water supply and pendulum pipe angle automatic zeroing and automatic eliminate seeper, avoid scale blockage needle tip.
4.  PLC, LCD panel test procedure control box, stainless steel curved pipe, alloy aluminum frame, stainless steel shell.
5. Servo drive mechanism, guarantee the pendulum pipe angle of precision, the overall pendulum tube structure for hang a wall.
6. Best after sales service: One year free parts maintenance.
7. Customization is available & welcomed.

Compound integrate IPX3 IPX4 Rain Test Equipment

According to International Protection Marking IP CODE GB 4208-2008/IEC 60529:2001,IPX3 IPX4 Rain Test Equipment are designed by and made by GRANDE,and reference to GB 7000.1-2015/IEC 60598-1:2014 Part 9(Dustproof,Anti-solids and Waterproof) Waterproof test standard.

Introduction&Application:
Box rain test chamber/ IP Rain spray test chambers

Configured for your specific tests

Grande makes rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.

The standardized design can be configured for the rain/spray tests you need, eliminating the guesswork in buying a chamber. The system is based on the specification requirements, and can also accomplish individual automaker’s tests, as well as electrical-enclosure tests.

Our Design

Grande's modular design allows you to add on additional features, depending on the number and type of tests required. One possible choice is to integrate the spray system with a regular temperature and humidity chamber to save money and floor space, while also creating an opportunity to simulate actual operating conditions your product may experience.

Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature, if required. A pump ensures the water is delivered in the proper pressure range. The water is fed to a motorized manifold that rotates the spray arms. Each spray arm has an adjustable valve to allow finer control of the spray.

Testing capabilities

The specification is modeled after and doesn’t differ greatly. Details about the nozzle types and the rotating nature of the spray arms and product table are also included in the requirements. Additionally, drip and car wash tests are also specified.

Heavy splash/shower

· S1 Spray room temperature water with 40 nozzles at 14.2 psi (1 kgf/cm2) for 30 minutes. The flow rate of the water shall be 6.5 gallons/min. (24.5 L/m).

· S2 Spray room temperature water with 40 nozzles at 42.7 psi (3 kgf/cm2) for 60 minutes. The flow rate of the water shall be 10.3 gallons/min. (39.2 L/m).

Light spray/rain

· R1 Spray room temperature water with two nozzles at 4.3 psi (0.3 kgf/cm2) for 10 minutes. The flow rate of the water shall be 0.8 gallons/min. (3.2 L/m).

· R2 Spray room temperature water with two nozzles at 1.4 psi (0.1 kgf/cm2) for 10 minutes. The flow rate of the water shall be 0.5 gallons/min. (1.9 L/m).

Examples of OEM automotive manufacturers' requirements

· Heat the sample to a temperature above boiling, then spray with cold water for about two minutes. Repeat cycle.

· Heat the sample to boiling temperature, then spray with room temperature water for about fifteen minutes. Repeat cycle.

· Simulate a car wash by using high pressure spray.

Features

· Rotating rain and spray nozzles designed to JIS specifications

· Speed control for the rotating spray nozzles

· Stationary product shelf - A rotating shelf is optional: see options

· Water pressure regulators, gauges and flow meters

· Special high-volume floor drain system to rapidly drain water out of the chamber

· Interior chamber size is the smallest possible area using the JIS specified nozzles

Applicable Test Methods

· JSA JIS (Japanese Industrial Standard) D 0203 "Method of Moisture, Rain and Spray Test for Automobile Parts"

· SAE (Society of Automotive Engineers) J2245 "Recommended Practice for Splash and Spray Evaluation"

· SAE J575 "Test Methods and Equipment for Lighting Devices and Components"

"The cabinet shall be equipped with a nozzle(s) which provides a solid cone water spray of sufficient angle to completely cover the sample device. The centerline of the nozzle(s) shall be directed downward at an angle of 45 degrees to the vertical axis of a rotating test platform... The device shall be rotated about its vertical axis at a rate of 4.0 ± 0.5 rpm... The water spray test shall continue for 12 hours." ref: SAE J575.

Optional/additional test capabilities:

· Temperature/humidity controlled rain chamber:  Includes -20 to 150°C and 20 to 98%RH capabilities

· Water recirculation:  Allows re-use of the treated rain water

· Water conditioning:  Allows the water to be cooled (5 to 20°C) prior to spray

· High pressure spray:  Adds capability to meet car wash test requirement

· Drip nozzle:  Adds capability to meet drip test requirement

· Rotating table:  Rotates the sample for full exposure to spray



Features

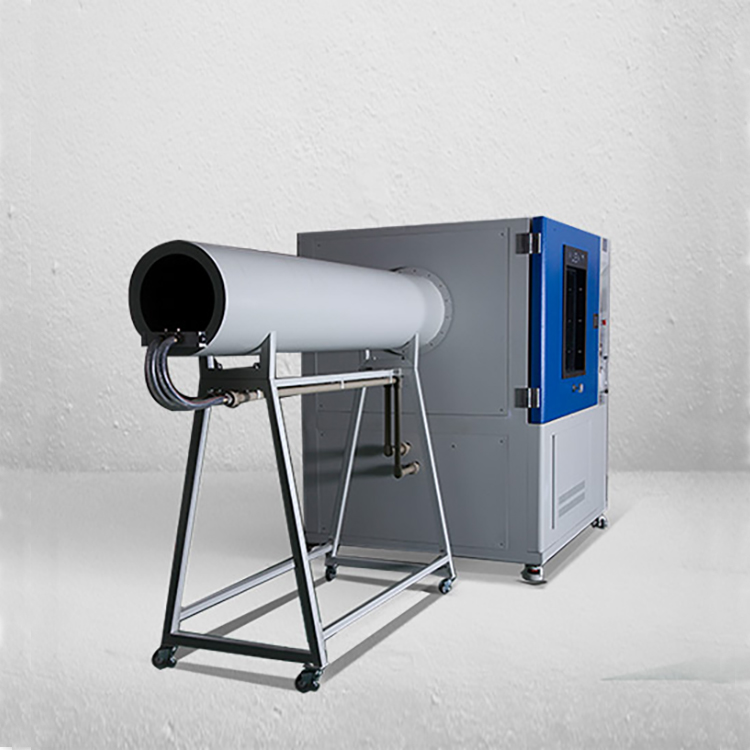

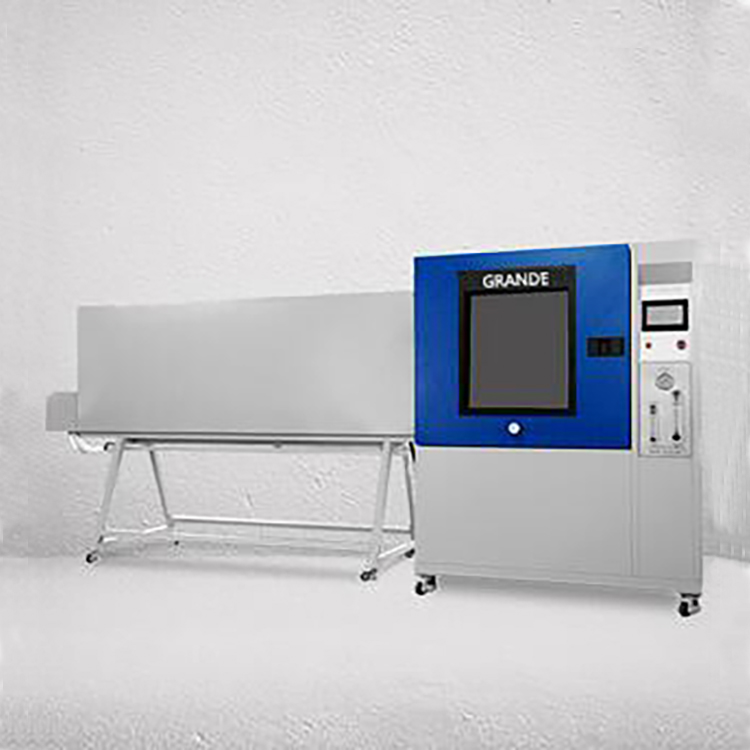

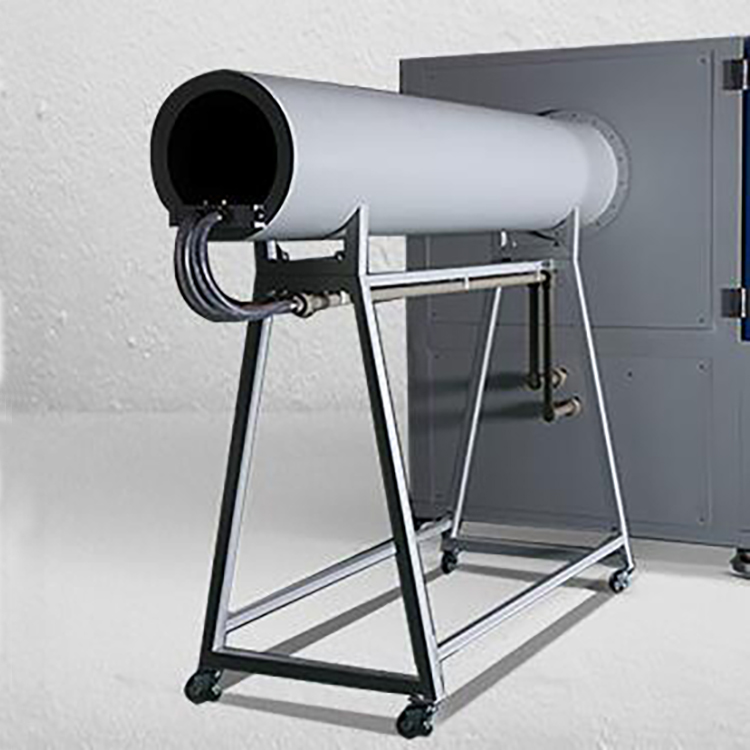

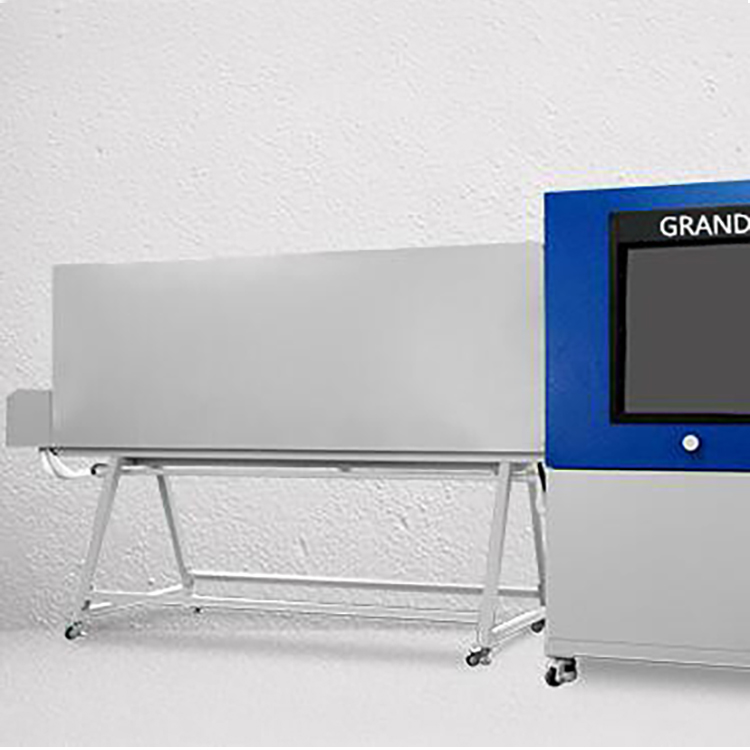

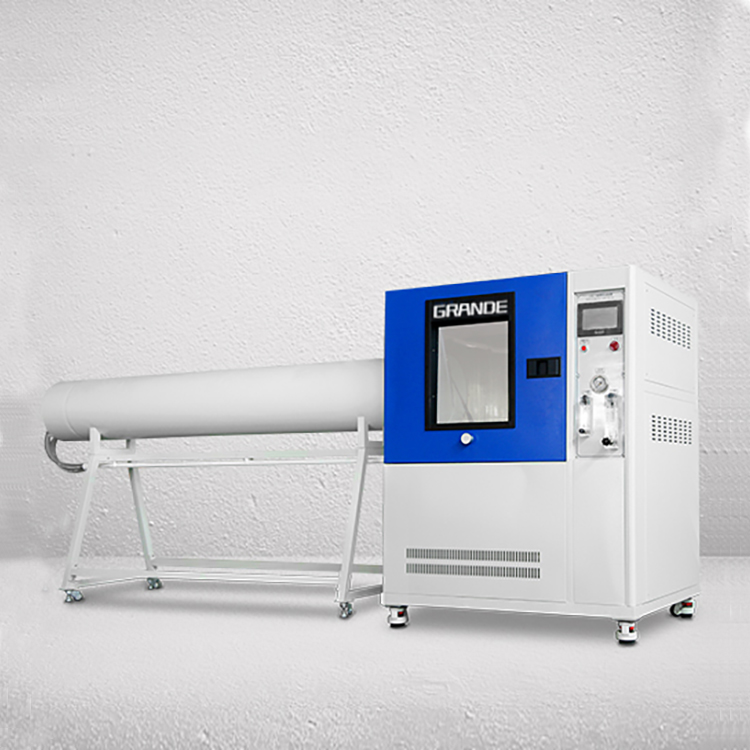

1,IP65 Waterproof test chamber is applied for workshops,labs.,etc,to proceed with waterproof test of IPX5/IPX6.

2,Perfect designs,constitute test chamber and water inlet pipe,cycling use of water,energy conservation and environment protection,save the cost of construction test room.

3,Built-in storage tank,water level float valve automatically controls water and Low-water alarm device,to prevent water pump to be broken since lack of water.

4,Controller:Korea SAMWON TEMI880

5,Spray gun(Airbush) can swing up and down,and the rotary table rotate,it can meet full spray on samples.

6,IPX5/IPX6 spray flow is adjusted by flow metermanual adjustment.

7,Inner installment have sample power socketAC220V,10AIP66 waterproof grade),sample power on/off time can controlled by programpower off0-999min —power on0 -999min— power off0-999min ),apply to power on/off when sample is testing.

8,Inner chamber installed waterproof LED lightconvenience customers to observe the status of testing.

9,Testing time can setting on touch panneltime setting range0-999minadjustable),testing overautomatic stop.

10,Added“remote operation”functionuser can process parameters settingstartstopclear data,etc. action on mobile phone or computer。(download corresponding software.

Material description

1,ip65 waterproof testing chamber-out boxhigh quality stainless steel platesurface spray paintattractive and durable

2,ip65 waterproof testing chamber-inner box and turntablemanufacture by SUS304#insure rustless for long time using.

3,Control systemuse colours 7 touch screen+Panasonic PLCsoftware program independent developoment by GRANDE.

4,Electrical apparatus elementuse like LGOMRON, etc. import brand(The wiring process meets national standard )。

5,Water pump:stainless steel multistage water pump.

Technical parameters:

Structure Parameter
Out chamber sizeL:3800*D:1050*H:1600mm(contain aqueduct)
Inner chamber sizeL:800*D:800*H:800mm
Water storage tank volumeAbout 100L,L:500×W:450×H:450mm
Sample turntable sizeDiameter 400mm
IPX5 water spray bore diameterDiameter 6.3mm
IPX6 water spray bore diameterDiameter 12.5mm
Functional Parameter
IPX5 spray flow12.5±0.625(L/min)
IPX6 spray flow100±5(L/min)
Flow control methodManual Adjustment(Rotor flow meter)
Water spray distance2.8 Meter(Nozzle distance away from turntable central)
Spray gun fixing method Mechanical Fixing (Program Setting、Adust Spray Gun Angle)
Turntable maximum load-bearing50KG
Electric Parameter
Power Voltage380V
Equipment Power3.0KW
Safety Protestion FunctionEarth Leakage Protection,Water Protection,Short-circuit Protection

Packing list:

1,IP123456 Waterproof test chamber 1set (Standard configuration)

2,Standard parts:Water inlet pipes

3,Certificate of qualification

4,Detailed list

5,Delivery Order

Main configuration:

No.Main parts nameBrand/Origin/SpecificationsQuantity
Controlling system(Main parts)
1Main frameAluminum frame,transparent density board1group
3PLC processorMitsubishi, Japan1group
4Communication moduleMitsubishi, Japan1group
5Controlling panel (English interface)WEINVIEW, Taiwan1group
6Stepping motorGUOYOU, China1group
7Dc motor and reducerGUOYOU , China1group
8Transducer0.75KW/220V1group
Water line(Main parts)
1Glass float flowmeterRange 7L/min1pcs
2Precision pressure gauge 0.4MPa1pcs
3Electric contact pressure sensor 0-0.8MPa1group
4Stainless steel water pumpNanfang, Hangzhou, China1pcs
5Solenoid valveGUOYOU 220V2group
6Throttle valveGUOYOU, China2group
Other parts
1TurntableStainless steel1group

 Package:

(1). Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber

(2). Usually we delivery the equipment by air,by sea or by express. it depends on customer.
