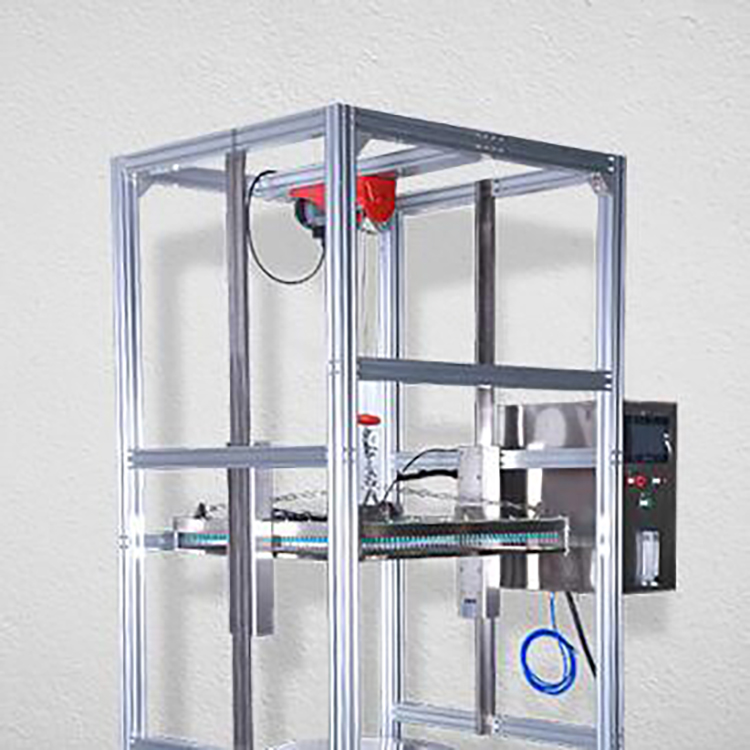

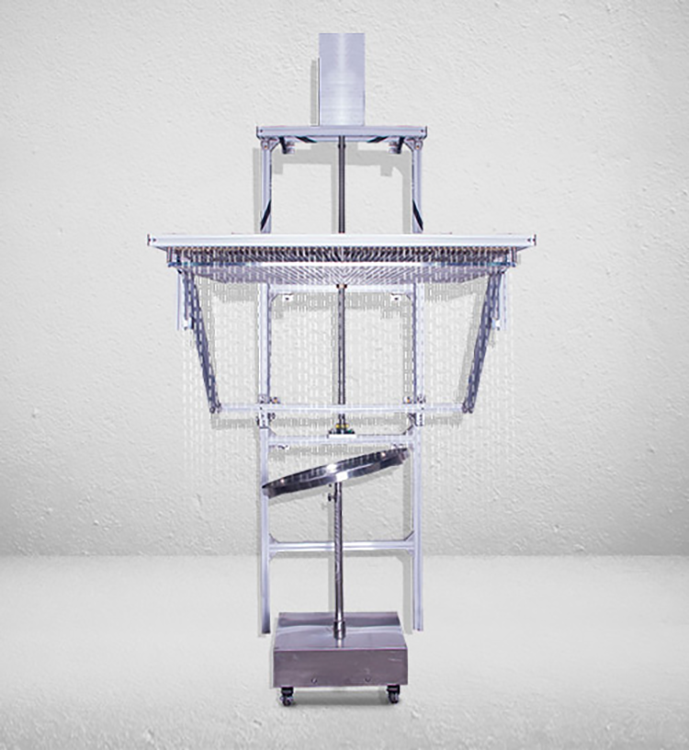

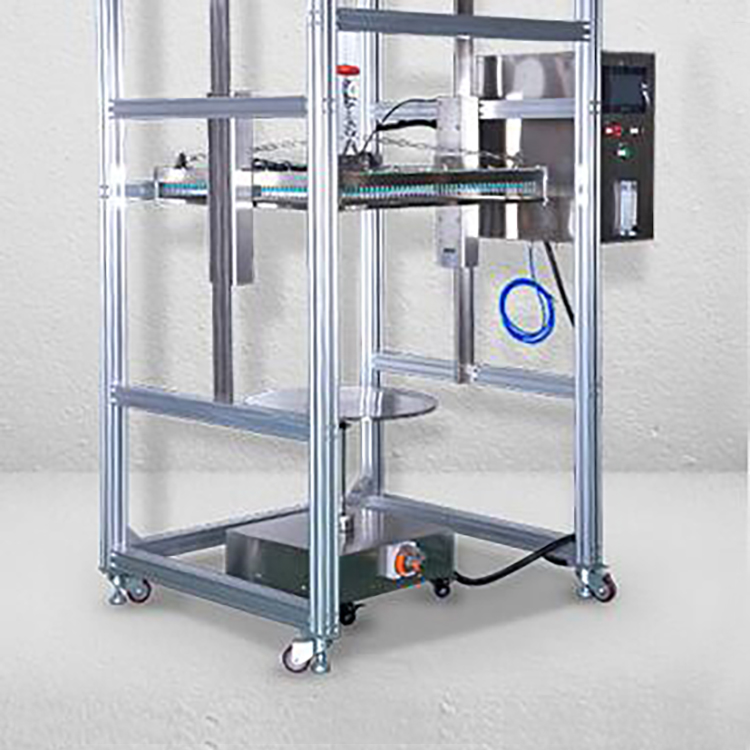

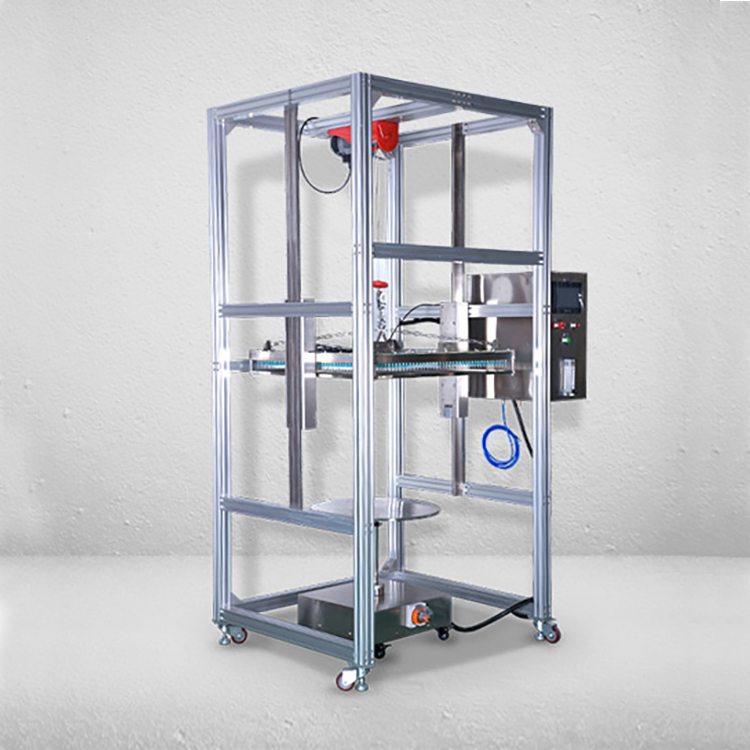

IPX12 Dripping Tester
  • IPX12 Dripping Tester
  • IPX12 Dripping Tester
  • IPX12 Dripping Tester
  • IPX12 Dripping Tester
  • IPX12 Dripping Tester
IPX12 Dripping TesterIPX12 Dripping TesterIPX12 Dripping TesterIPX12 Dripping TesterIPX12 Dripping Tester

IPX12 Dripping Tester

Grande devloped Ingress Protection (IP) ratings (International Protection code) rain and spray testing easier by offering a standard chamber capable of published and OEM proprietary test methods.


Product Details

The standardized design can be configured for the rain/spray tests you need, eliminating the guesswork in buying a chamber. The system is based on the IP and SAE specification requirements used for electronics, LED,enclosures, and automotive parts.

GRANDE Design

Our system uses multiple control solenoids to vary the water's spray volume/pressure. A holding tank prepares the water to the desired temperature if required. A pump ensures the water is delivered in the proper pressure range. The spray is activated via a programmable controller that sets the test mode and its desired parameters.

Automotive standards JIS D 0203, SAE J575

The SAE specification J2245 is modeled after the JIS D0203. Details about the nozzles, rotating spray arms, and product table are also included. Additionally, drip and car wash tests are also specified. This test standard features spray arms with adjustable pressure/volume output.

Heavy Splash/Shower S1,S2 Spray room temperature water with 40 nozzles

Light spray/rain R1, R2 Spray room temperature water with two nozzles

Examples of OEM automotive manufacturers' requirements

Heat the sample to a temperature above boiling, then spray with cold water for about two minutes. Repeat cycle.

Heat the sample to boiling temperature, then spray with room temperature water for about fifteen minutes. Repeat cycle.

IP Code / IEC Standard 60529 Ingress Protection

Dripping water (IP1 and 2)

Oscillating splash/spray with 'halo' spray arm (IPX 3 and 4)

Ten-foot water jet (IPX 5 and 6)

Car-wash-style water jets at 80°C (IPX 9K)

Rotating test table (required for several tests)

Features for Rain and Spray Test Chambers

Stationary product shelf (a rotating shelf is optional)

Water pressure regulators, gauges, and flow meters

Special high-volume floor drain system to rapidly drain water out of the chamber

Viewing window with wiper

Applicable test methods

IP Code / IEC standard 60529 "Ingress Protection"

JSA JIS (Japanese Industrial Standard) D 0203 "Method of Moisture, Rain and Spray Test for Automobile Parts"

SAE (Society of Automotive Engineers) J2245 "Recommended Practice for Splash and Spray Evaluation"

SAE J575 "Test Methods and Equipment for Lighting Devices and Components"

Optional/additional test capabilities:

Temperature/humidity controlled chamber:  Includes -20 to 150°C and 20 to 95%RH capabilities

Water recirculation:  Allows re-use of the treated rain water

Water conditioning:  Allows the water to be cooled (5 to 20°C) prior to spray

High pressure spray:  Adds capability to meet car wash test requirement

Drip grid:  Adds capability to meet drip test requirement

Rotating table:  Rotates the sample for full exposure to spray

Technical parameters:

Structure Parameters:
Dripping panel sizeW600*H110*D600
Interior Dimension(mm)W1000 *H1000*D1000
Exterior chamber size(mm)W1550* H1750*D1200

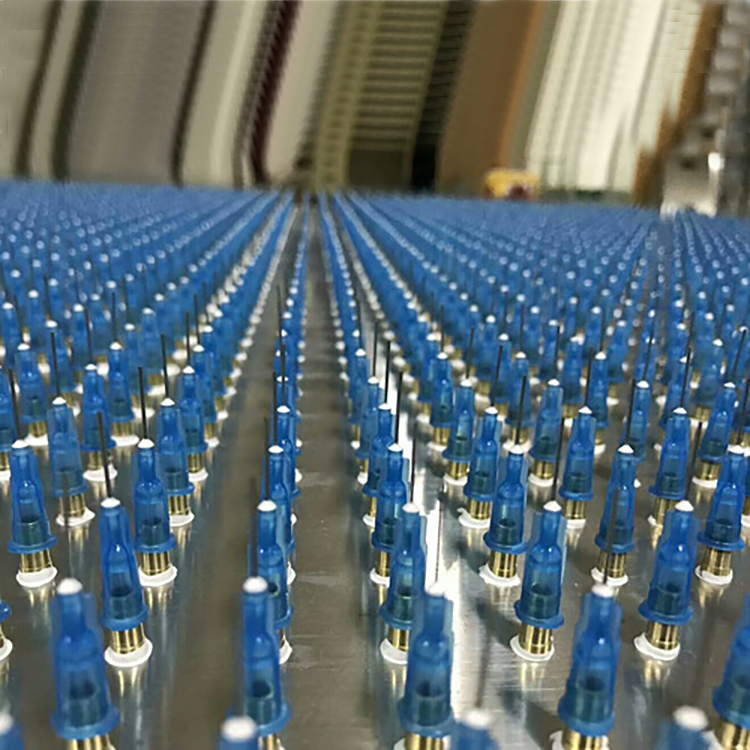

Dripping hole diameter¢0.4mm
Distance of dripping hole20*20 mm
Diameter of rotary table¢600 mm
Performance parameters:
Dripping volume1-5 mm/min(±0.5mm/min)
Speed of rotary talbeManual Adjustment
Lift method of Dripping panelFixed
Height range of rotary table350-700 mm
Max Samples Weight50KG
Angle of Rotary Table0° or 15°(Horizontal direction)
Speed of Rotary table1~5 r/min(IPX1 )
Electric Parameter
Voltage220V
Power1.0KW
Safety protectionEarth leakage protection,Protection of lack water,Short-circuit Protection
STANDARDS: MIL-STD-810G,JIS D 0203, CONFIRMS TO IS 9000, JSS 55555, JIS D0203, S 12063, IEC 60529 (IP, DIN 40050, IP1-9 K AND ISO 120653, IP 129K) IS 9000/JSS 55555

Packing list:

1,IPX12 Dripping Tester 1set (Standard configuration)

2,Standard parts:Nozzles

3,IPX12 Certificate of qualification

4,Detailed list

6,Delivery Order

Main configuration:

No.Main parts nameBrand/Origin/SpecificationsQuantity
Controlling system(Main parts)
1Main frameAluminum frame,transparent density board1group
3PLC processorMitsubishi, Japan1group
4Communication moduleMitsubishi, Japan1group
5Controlling panel (English interface)WEINVIEW, Taiwan1group
6Stepping motorGUOYOU, China1group
7Dc motor and reducerGUOYOU , China1group
8Transducer0.75KW/220V1group
Water line(Main parts)
1Glass float flowmeterRange 7L/min1pcs
2Precision pressure gauge 0.4MPa1pcs
3Electric contact pressure sensor 0-0.8MPa1group
4Stainless steel water pumpNanfang, Hangzhou, China1pcs
5Solenoid valveGUOYOU 220V2group
6Throttle valveGUOYOU, China2group
Other parts
1TurntableStainless steel1group
