Class 100 Clean Oven
  • Class 100 Clean Oven
  • Class 100 Clean Oven
  • Class 100 Clean Oven
  • Class 100 Clean Oven
  • Class 100 Clean Oven
Class 100 Clean OvenClass 100 Clean OvenClass 100 Clean OvenClass 100 Clean OvenClass 100 Clean Oven

Class 100 Clean Oven

Standard Type,Large Type,Automatic Feeding Type,Walk-in Type,Drive-in Type are available.

Includes a HEPA filter to maintain cleanliness

These models are used extensively in heat treatment/drying or burn-in of semiconductor wafers, liquid crystals, disks,mining,medical,pharmacy,biology,electric,chemical industry,scientific research and other components and devices requiring clean air conditions.


Product Details

It is applicable to such test as drying, cure melting, sterilizing in industrial and mining enterprises as well as in laboratory and scientific research institutes.

These units can also be prepared for installation in clean-room environments. Class 100 or Class 1000 cleanliness is achieved by employing a HEPA filter and a back-to-front laminar circulation system. The high-performance models (with MS suffix) provides stable performance even during heat-up or cooling.

Features

· Heat-resistant HEPA filter

· Clean meter indicates when filter needs replacement

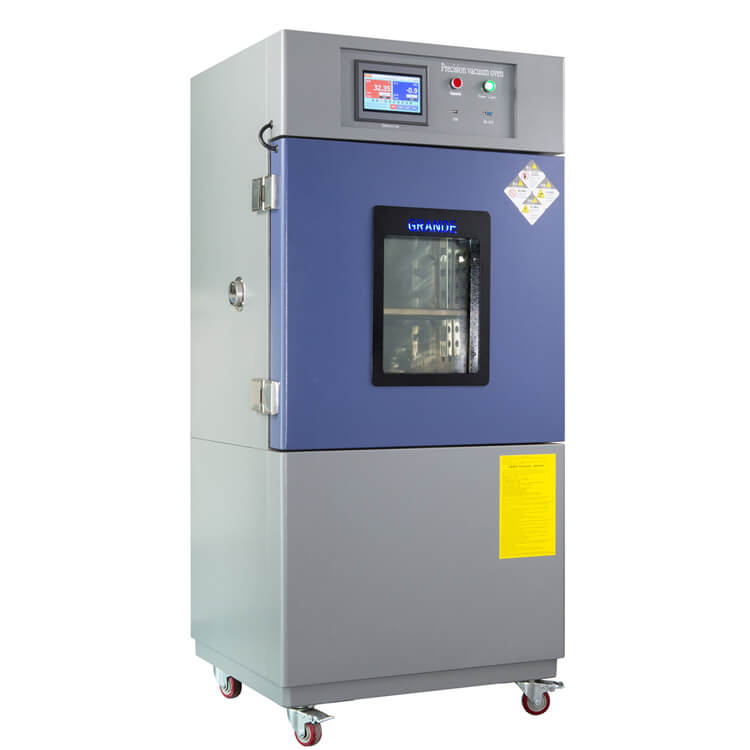

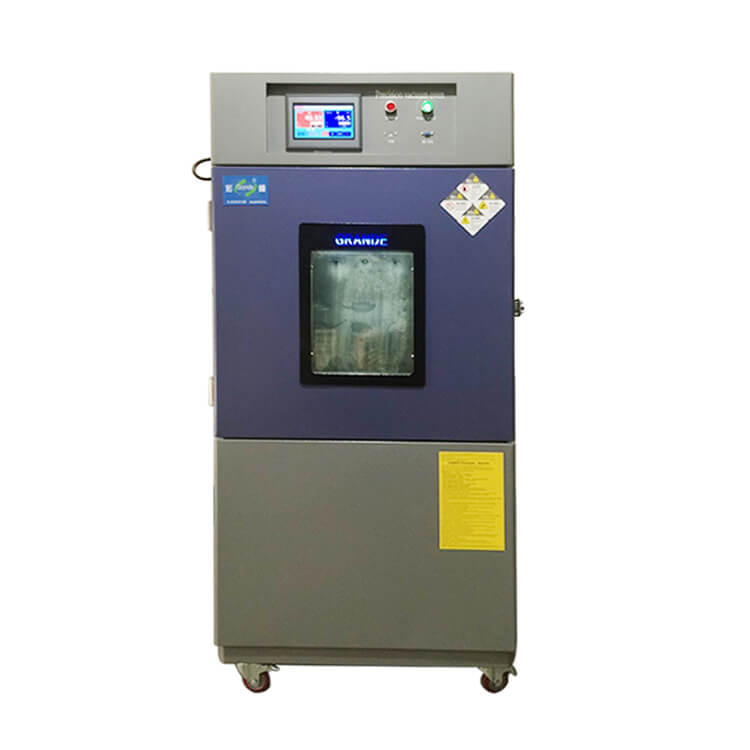

· Compact vertical design

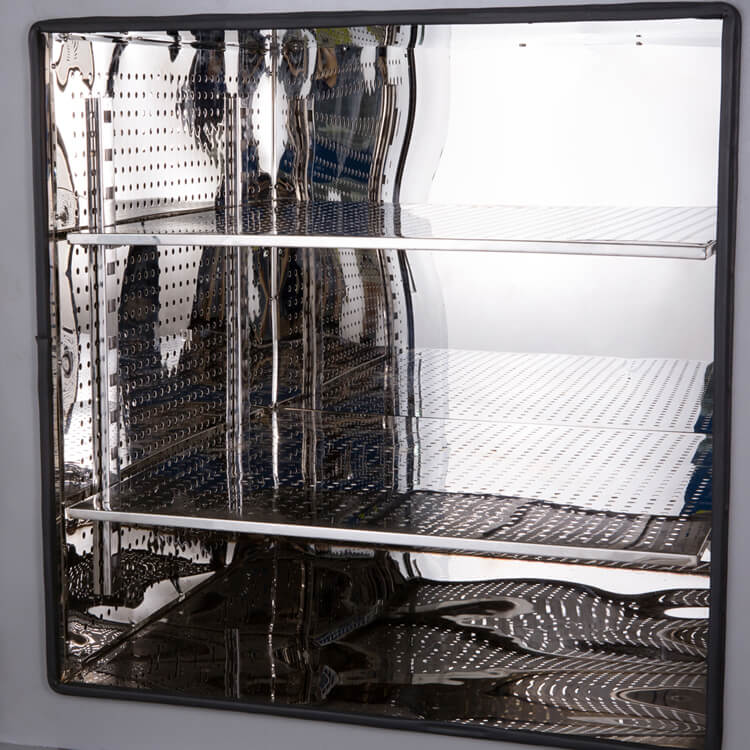

· SUS#304 Stainless steel interior

· Controller with large LED display

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Visual and audible alarm with diagnostic fault code

· Two-step programmability with functions for automatic start, stop, ramp, and repeat

· Specimen power supply control terminal--turns specimen off if chamber faults

· Four-tiered safety system for overheat conditions

· Two shelves included standard, rated for 40 lbs. or more

Optional accessories

USB,RS-232 interface can be linked to Personal computer(PC) and achieve multi-level control & recording software management.

Technical parameters:

Model NoGIOC-072GIOC-270GIOC-480GIOC-600GIOC-1000
Volume(L)72270480600720
Inner chamber size(mm)W*H*D 450*400*400600*900*500800*1000*6001000*1000*6001200*1000*600
Exterior chamber size(mm)W*H*D900*1050*5501100*1600*6501200*1700*8401400*1750*8401750*1750*840
Temperature rangeIndoor temperature +10℃~+200℃,300℃,500℃,600℃,700℃,Customization is available
PerformanceTemperature fluctuation±0.3℃

Temperature Uniformity±1℃

Temperature resolution0.1℃

Dustproof classClass 100,Class 1000

Heating up tim30min
MaterialExterior chamber materiaStainless steel plate+ Power Coated

Inner chamber materialSUS#304 stainless steel plate(SUS#201 when max temperature is below 200℃

FiltersHEPA Filters

Insulation MateriaPU& Fiberglass wool
Systemcirculation systemSirocco fan

Heating systemSUS#304 stainless steel high-speed heater

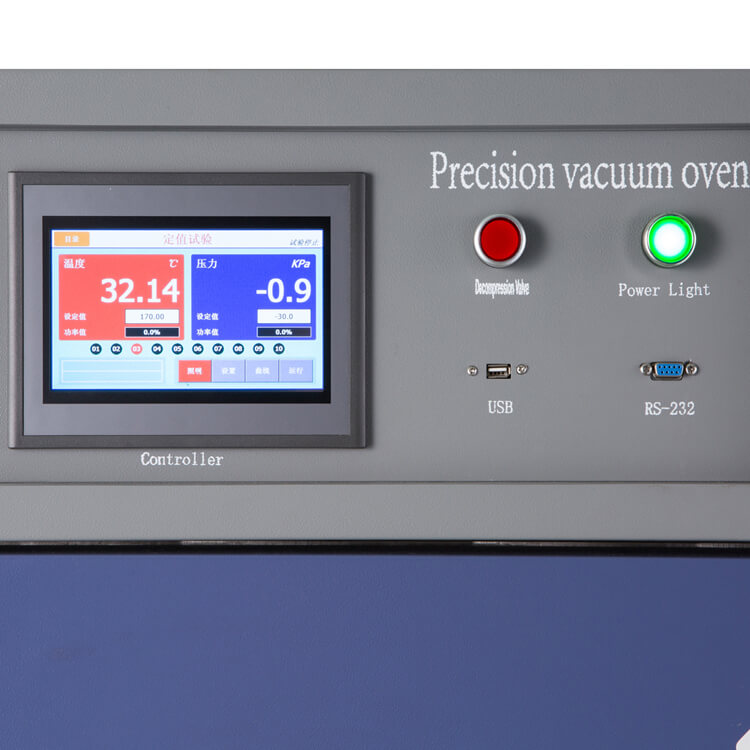

Controller Touch-screen controller or Omron E5AZ controller+ S.S.R.

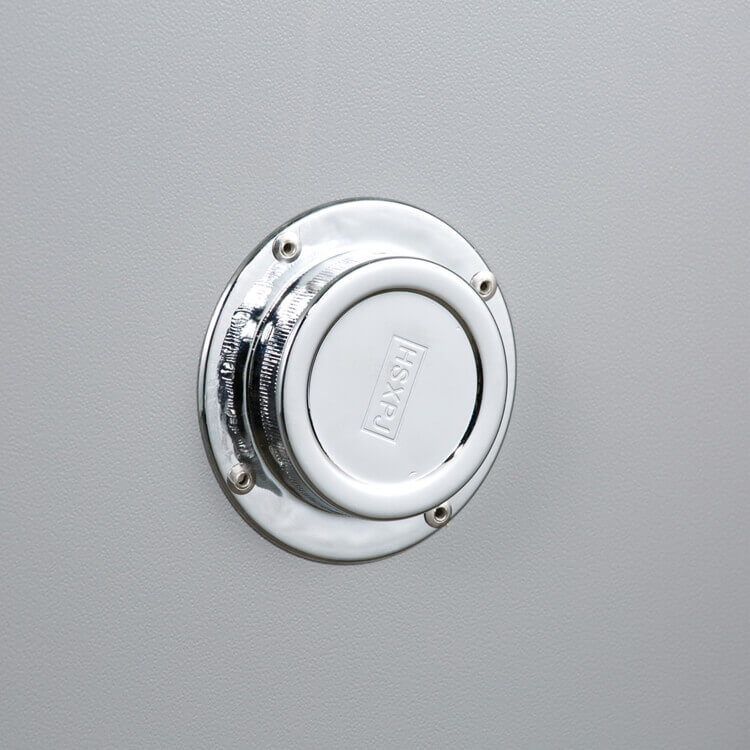

Other ComponentsCable port(50mm), control status indicator lights, loading shelves(2pcs for free)
Safety protection deviceOver-heat protection circuit breaker,Control system overload protection,Overload indicator lamp.
Power SupplyAC 1Ψ 110V;AC 1Ψ 220V;3Ψ380V 60/50Hz
Customized serviceWelcome to Non-standard and Specail requirements,OEM/ODM orders.Customization of inner chamber size, tempreture&humidity range,ect.
The technical information will be subjected to change without notice

Class 5 cleanliness level

Class 5 cleanliness level is achieved by employing HEPA filters and a back-to-front horizontal laminar circulation system which produces uniform high-temperature airflow.

Distance of airflow in the chamber is shortened,resulting in smooth air delivery is between specimens and uniform heat treatment.Additionally,it prevents dust generated from specimens placed upstream from flowing downstream.

The upright design with instrumentation,heater,and other mechanisms gathered on the upper side saves installation space.
